Connector C170 Connector End View

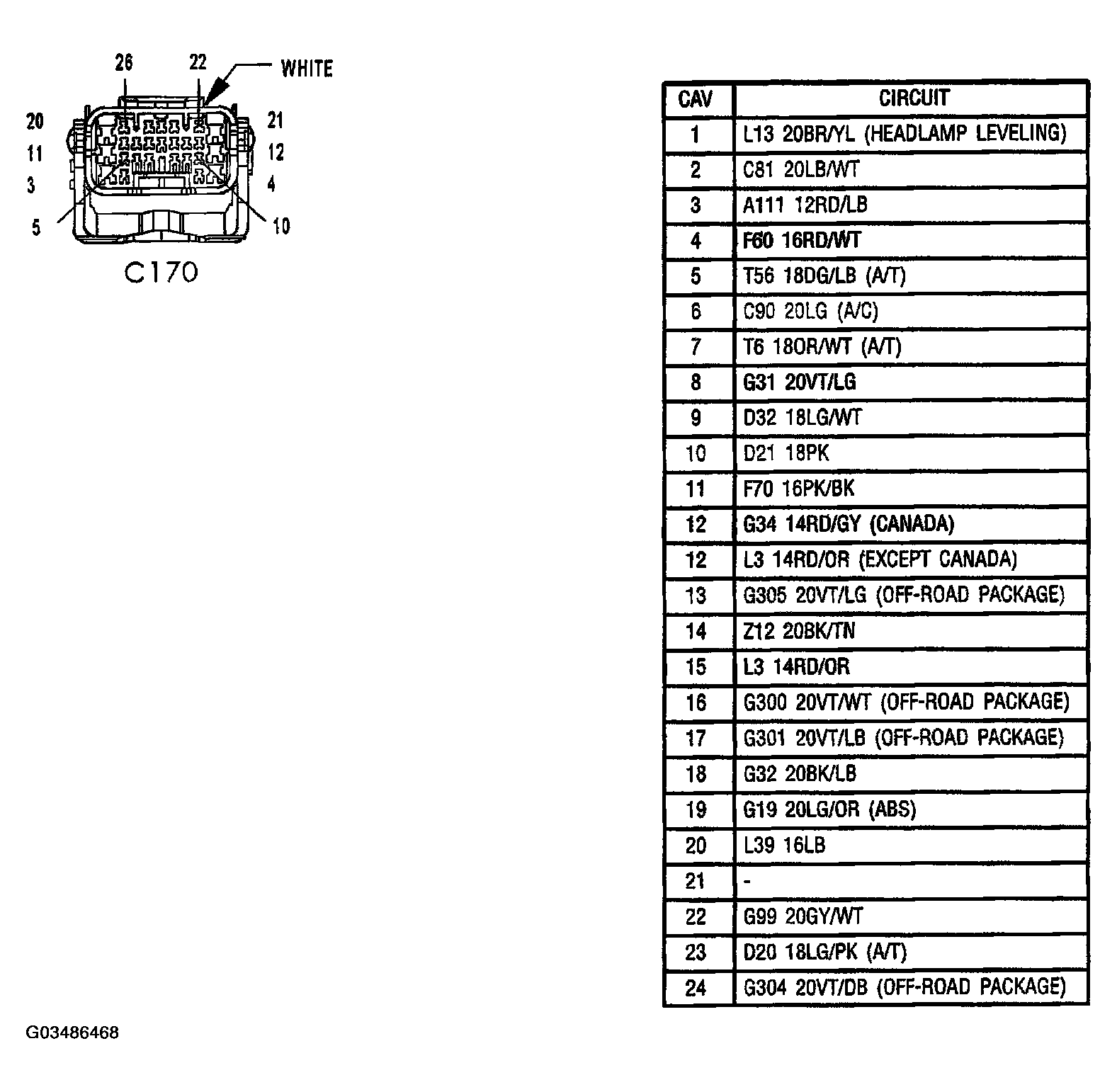

Fig 1: Dash Side Inline Connector End View (C170)
G03486468Courtesy of DAIMLERCHRYSLER CORP.

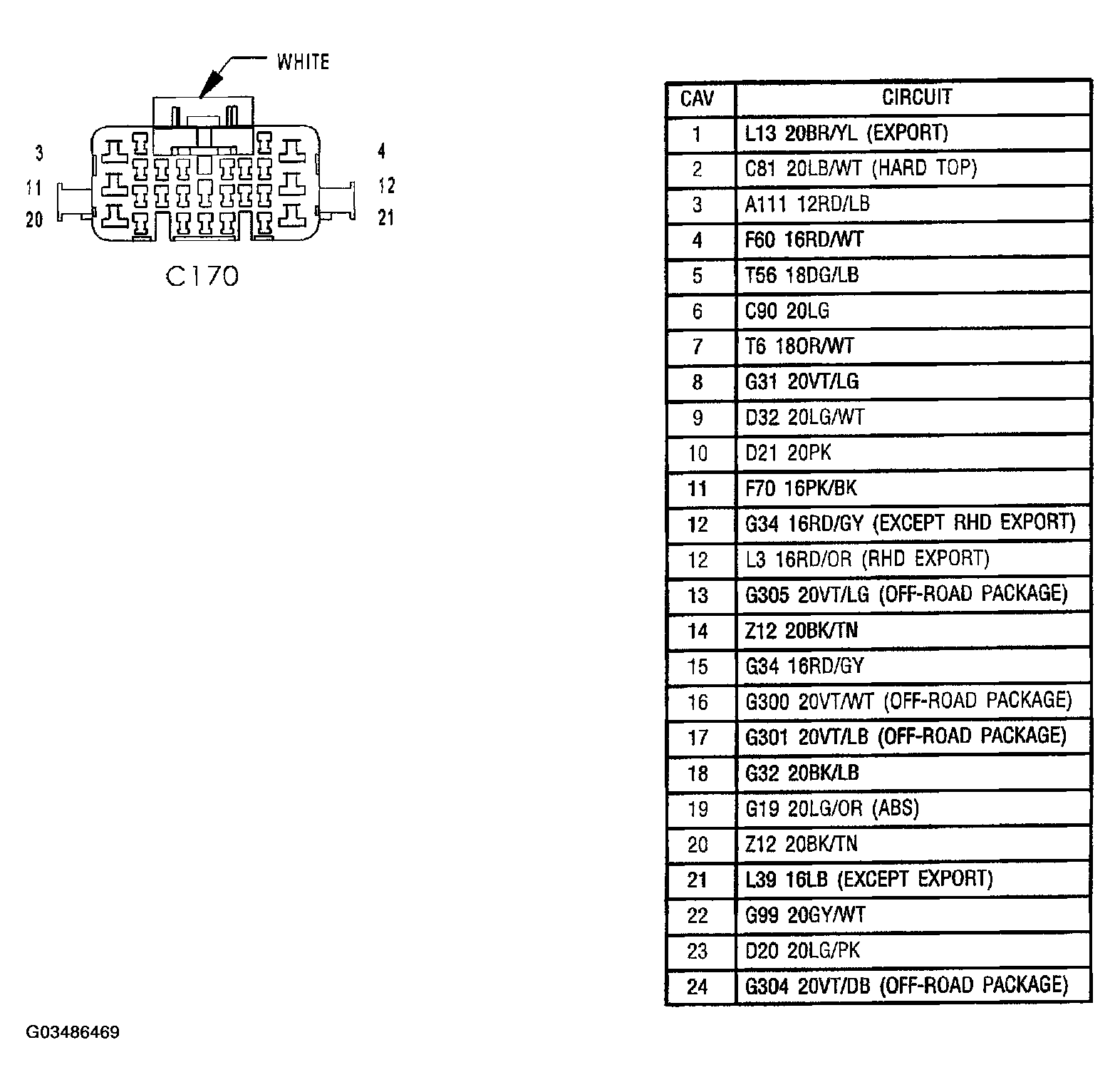

Fig 1: Instrument Panel Side Inline Connector End View (C170)
G03486469Courtesy of DAIMLERCHRYSLER CORP.
