Daytime Running Lamp Module (Except Export) Connector End View

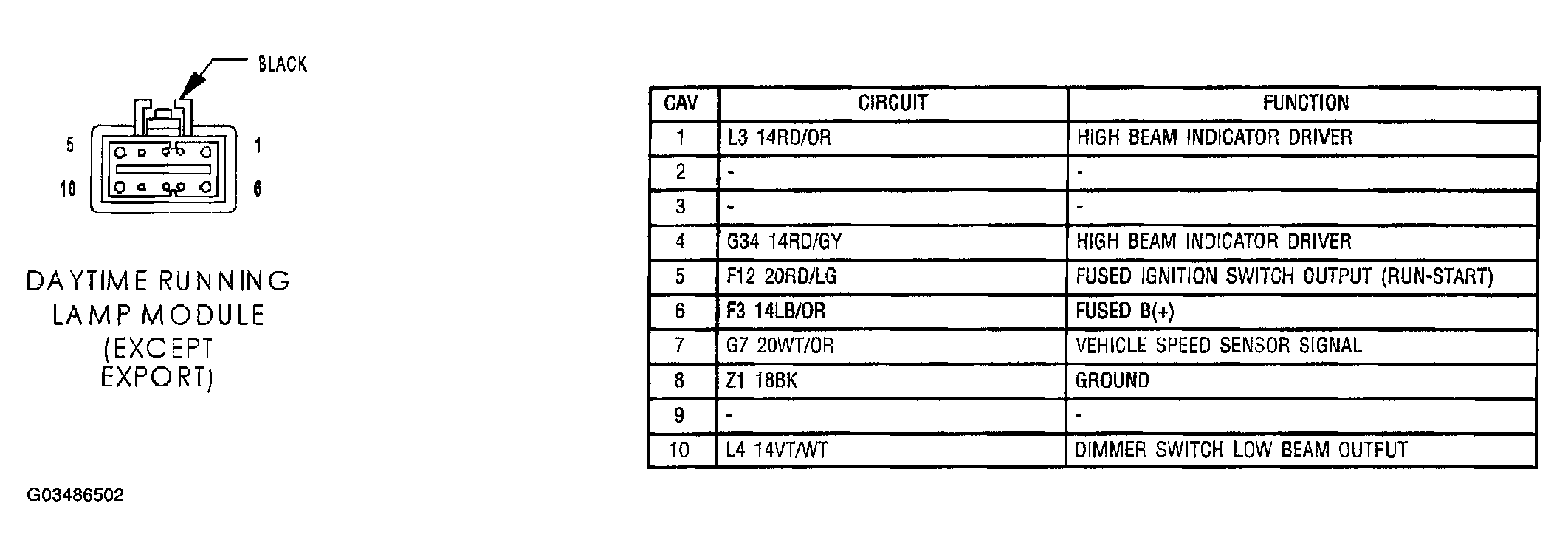

Fig 1: Daytime Running Lamp Module (Except Export) Connector End View

G03486502

Courtesy of DAIMLERCHRYSLER CORP.
