Radio Connector End View

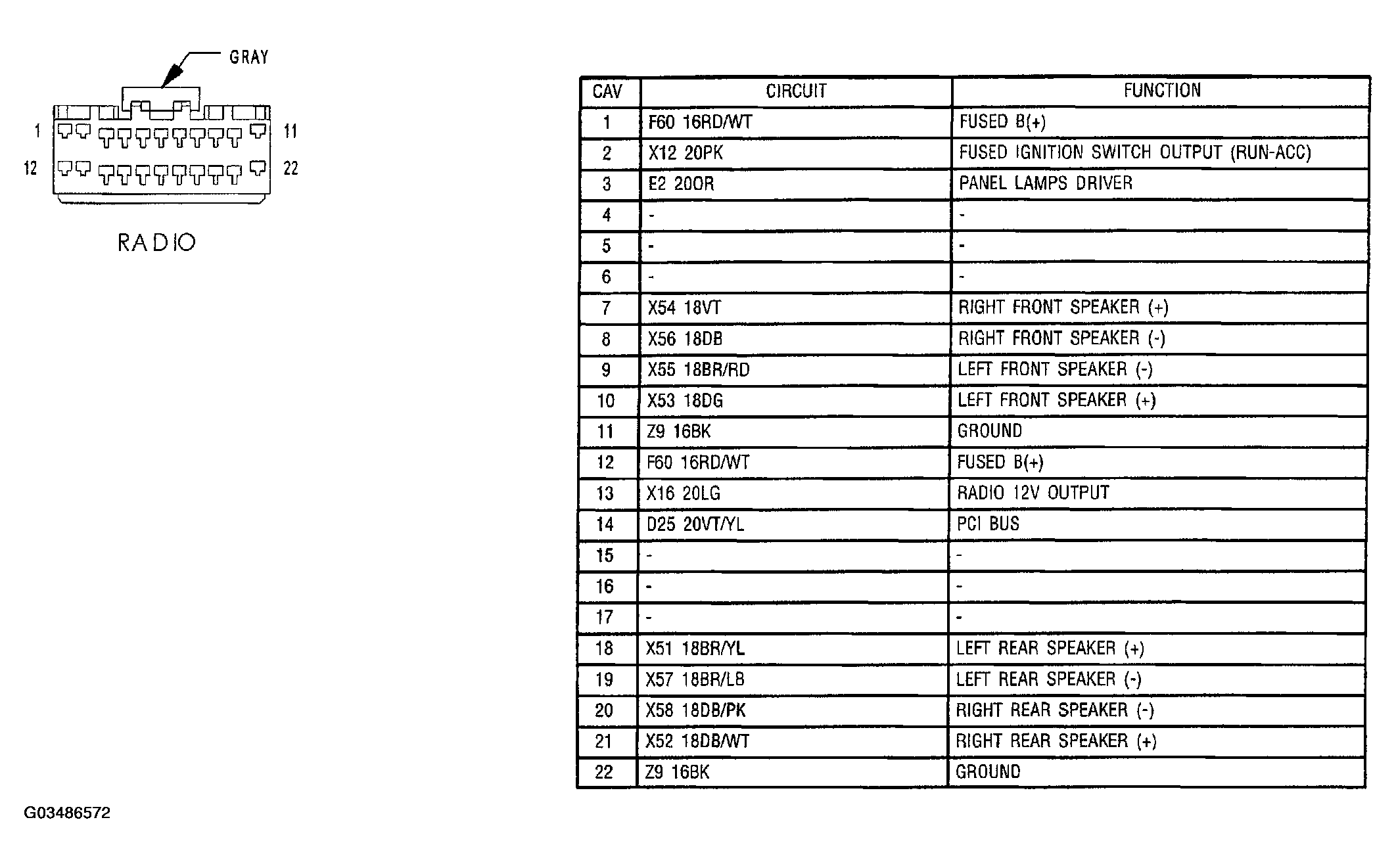

Fig 1: Radio Connector End View

G03486572

Courtesy of DAIMLERCHRYSLER CORP.
