Controller Antilock Brake Connector End View

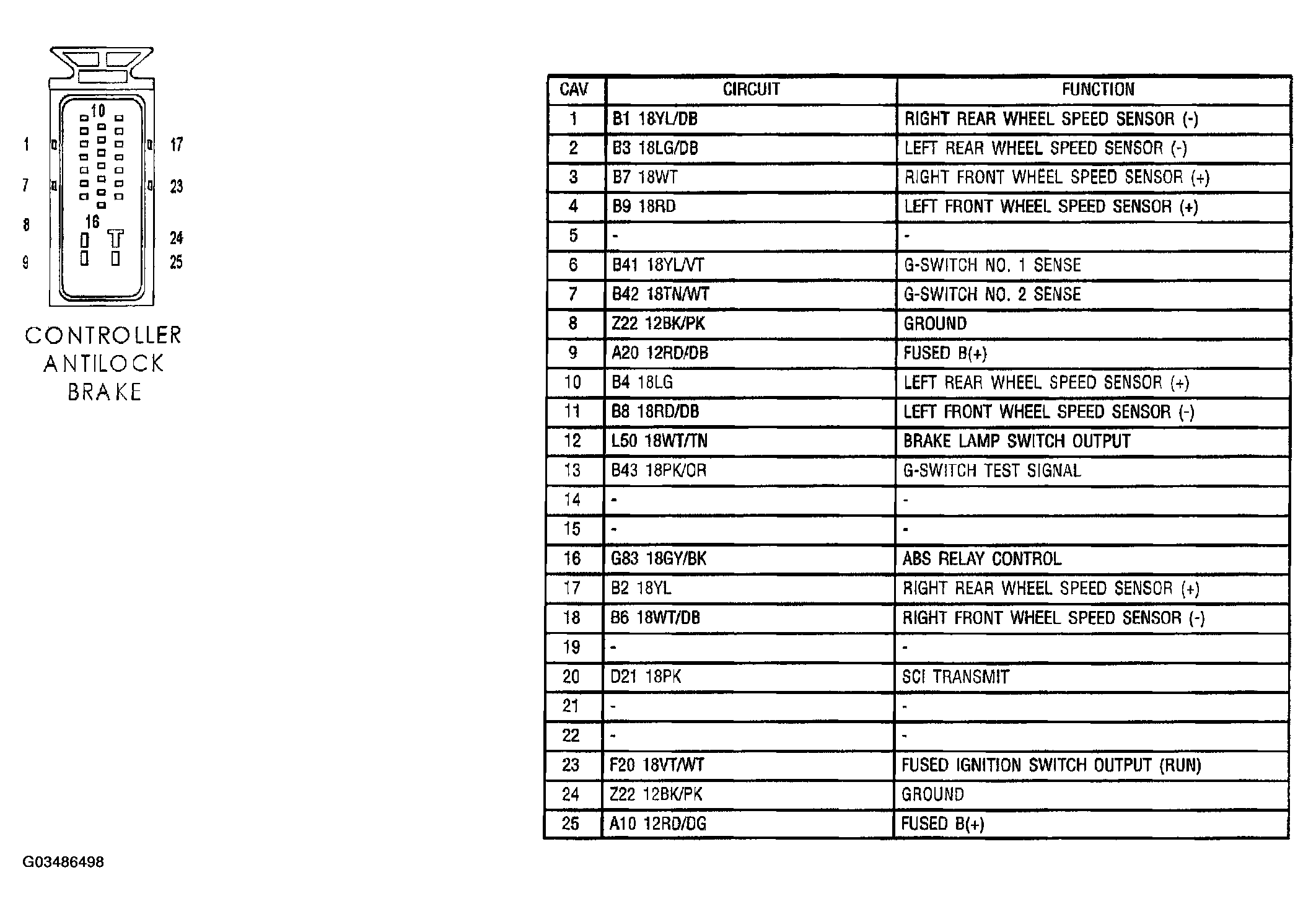

Fig 1: Antilock Brake Controller Connector End View

G03486498

Courtesy of DAIMLERCHRYSLER CORP.
