A/C-Heater Control C1 Connector End View

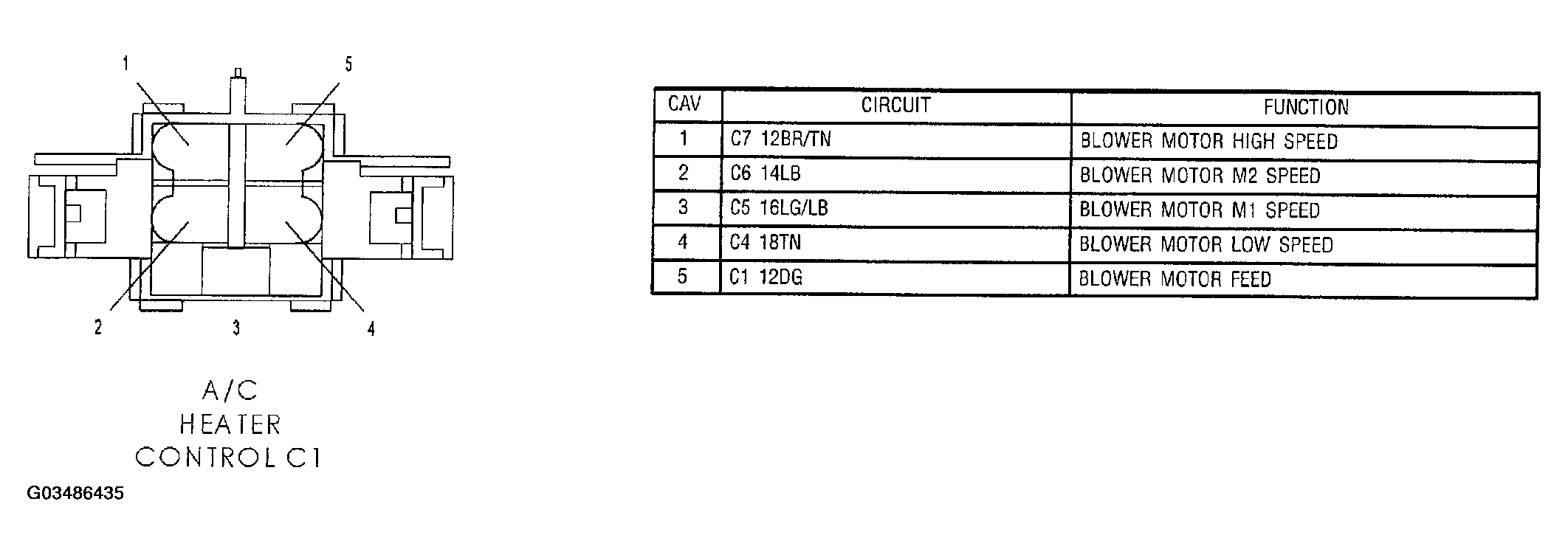

Fig 1: A/C Heater Control Connector End View (C1)

G03486435

Courtesy of DAIMLERCHRYSLER CORP.
