Connector C202 Connector End View

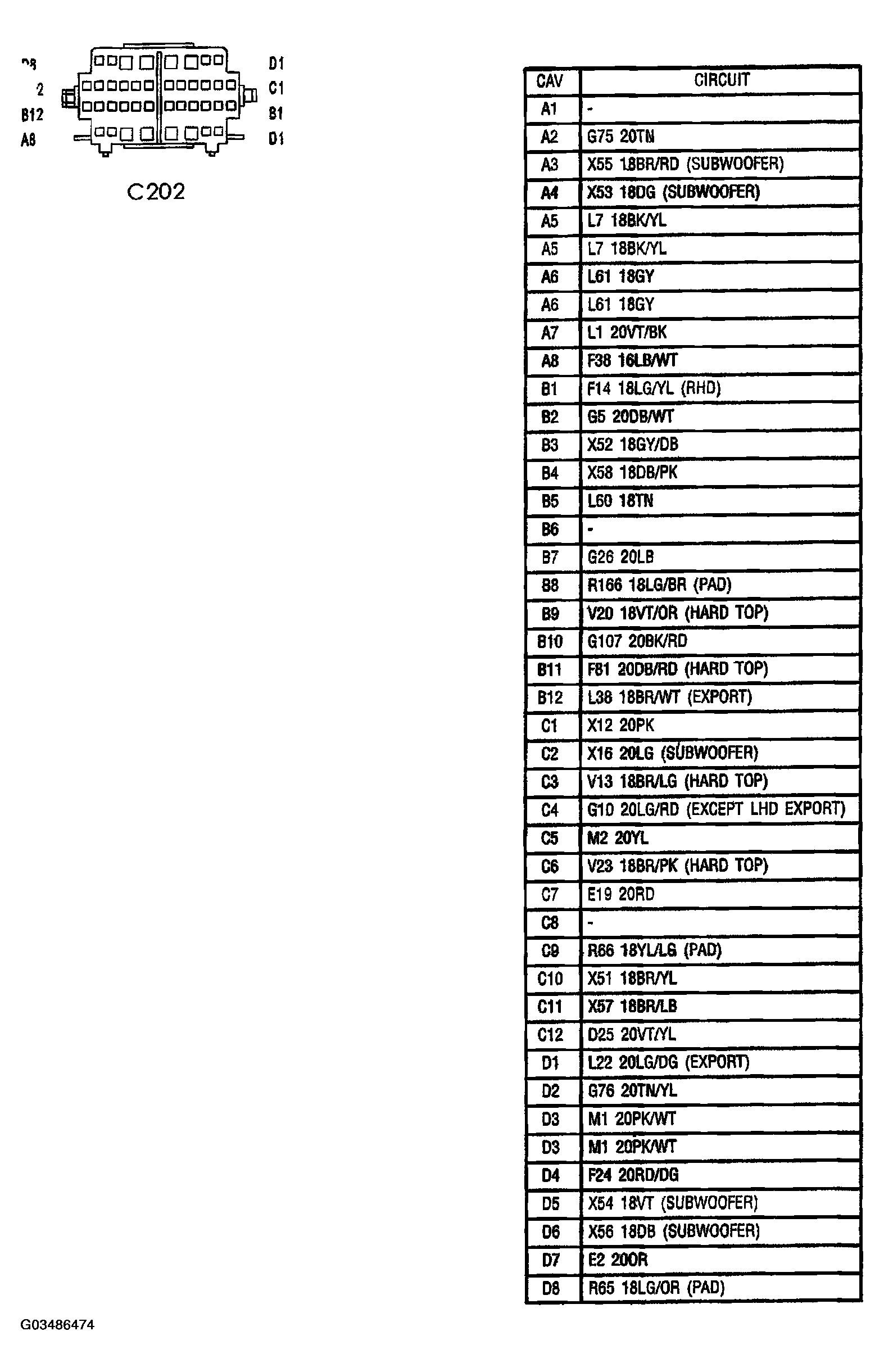

Fig 1: Body Side Inline Connector End View (C202)
G03486474Courtesy of DAIMLERCHRYSLER CORP.

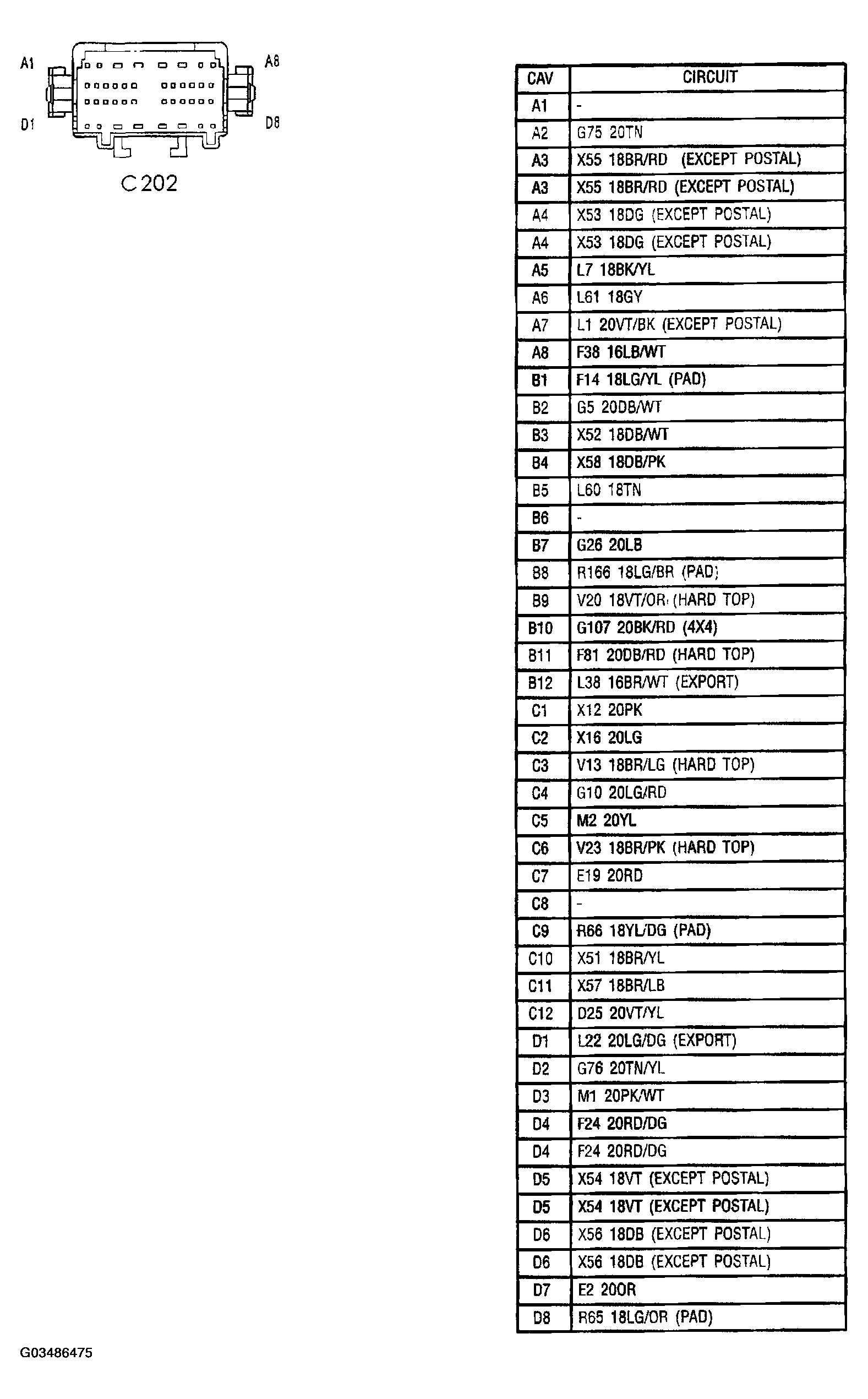

Fig 1: Instrument Panel Side Inline Connector End View (C202)
G03486475Courtesy of DAIMLERCHRYSLER CORP.
