Connector C110 Connector End View

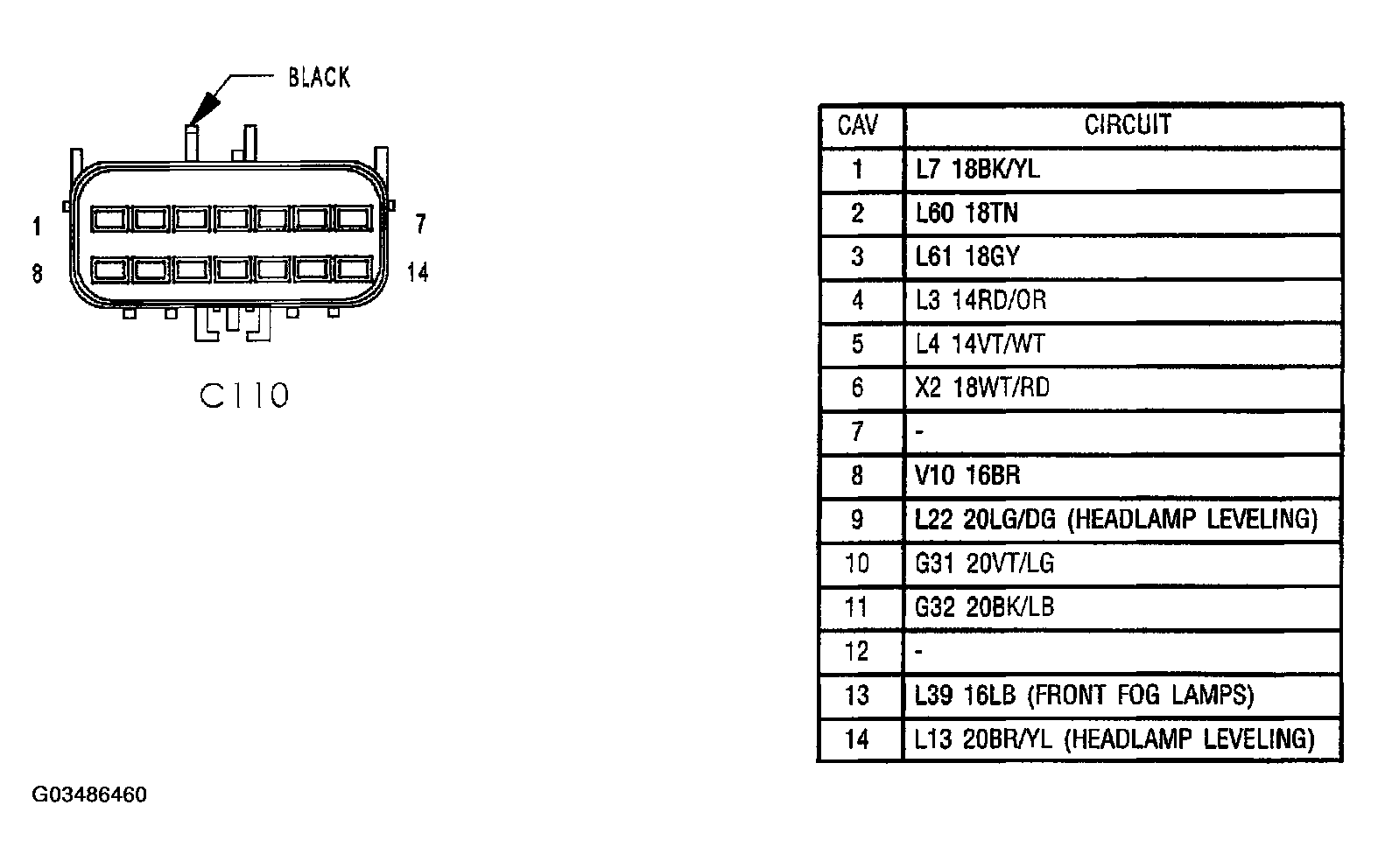

Fig 1: Dash Side Inline Connector End View (C110)
G03486460Courtesy of DAIMLERCHRYSLER CORP.

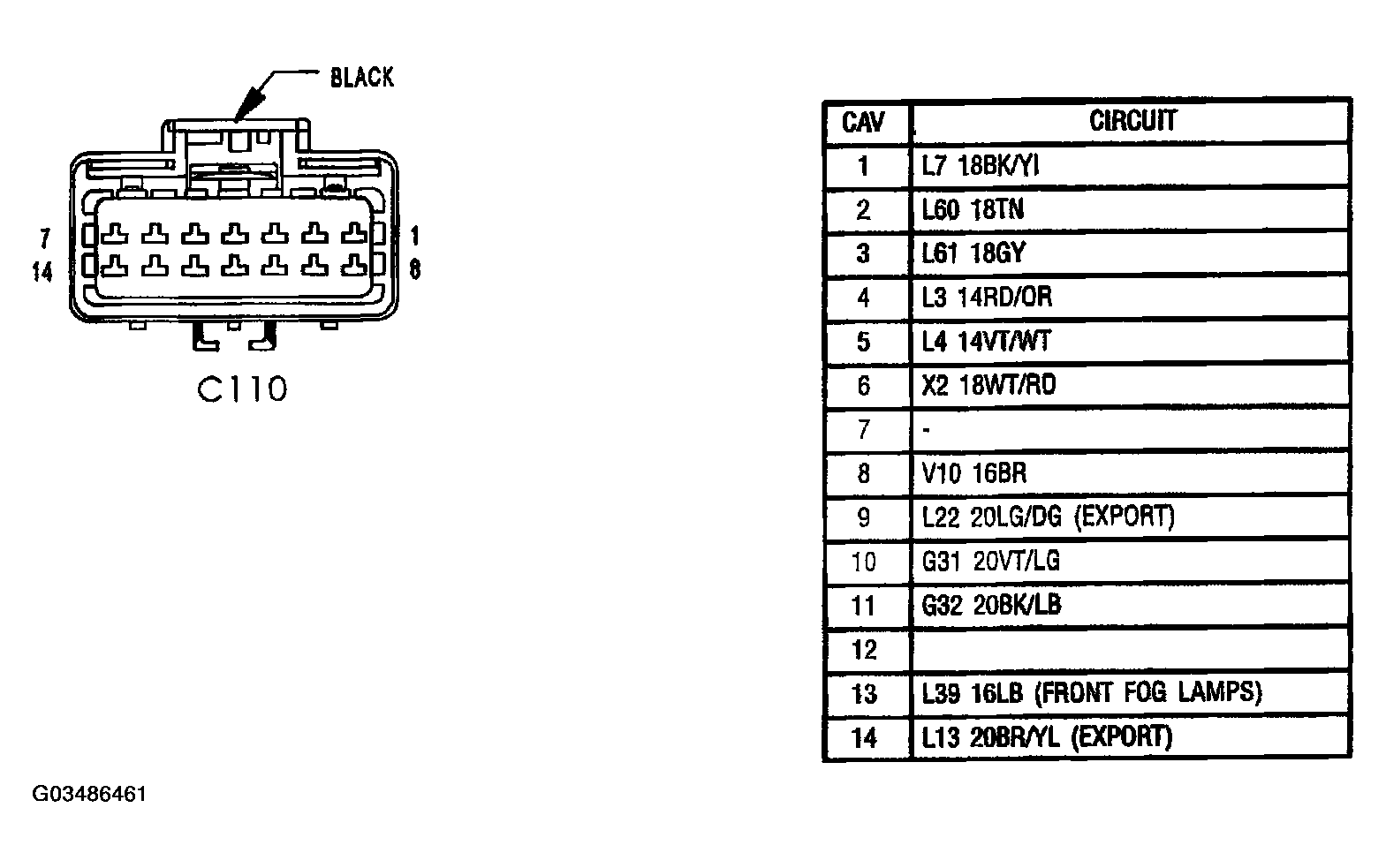

Fig 1: Headlamp Side Inline Connector End View (C110)
G03486461Courtesy of DAIMLERCHRYSLER CORP.
