DTC P1486: EVAP Leak Monitor Pinched Hose Found: Testing

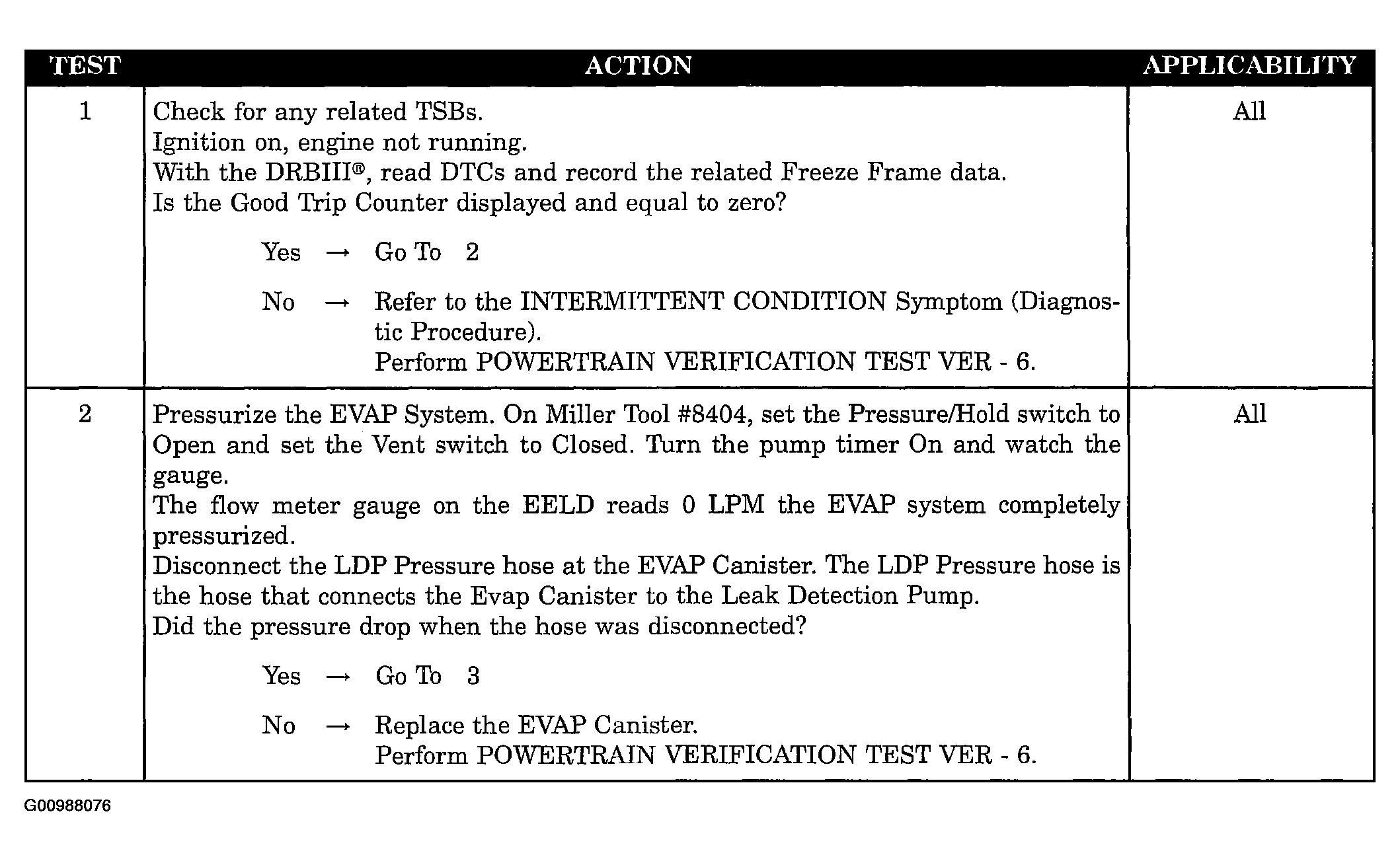

Fig 1: Testing: DTC P1486: EVAP Leak Monitor Pinched Hose Found (1 Of 2)
G00988076Courtesy of DAIMLERCHRYSLER CORP.

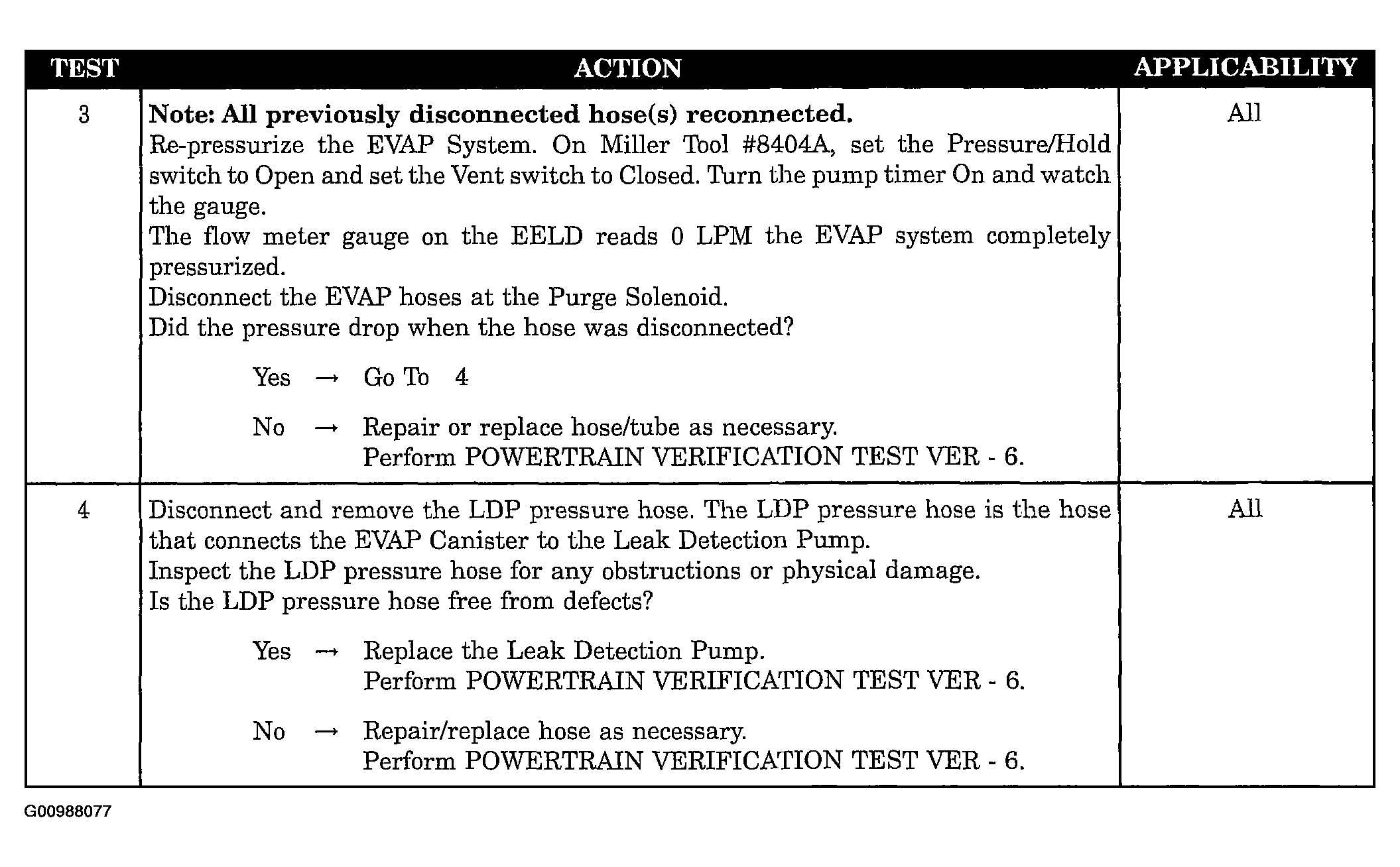

Fig 2: Testing: DTC P1486: EVAP Leak Monitor Pinched Hose Found (2 Of 2)
G00988077Courtesy of DAIMLERCHRYSLER CORP.
