DTC P1296: No 5-Volts To Map Sensor: Testing

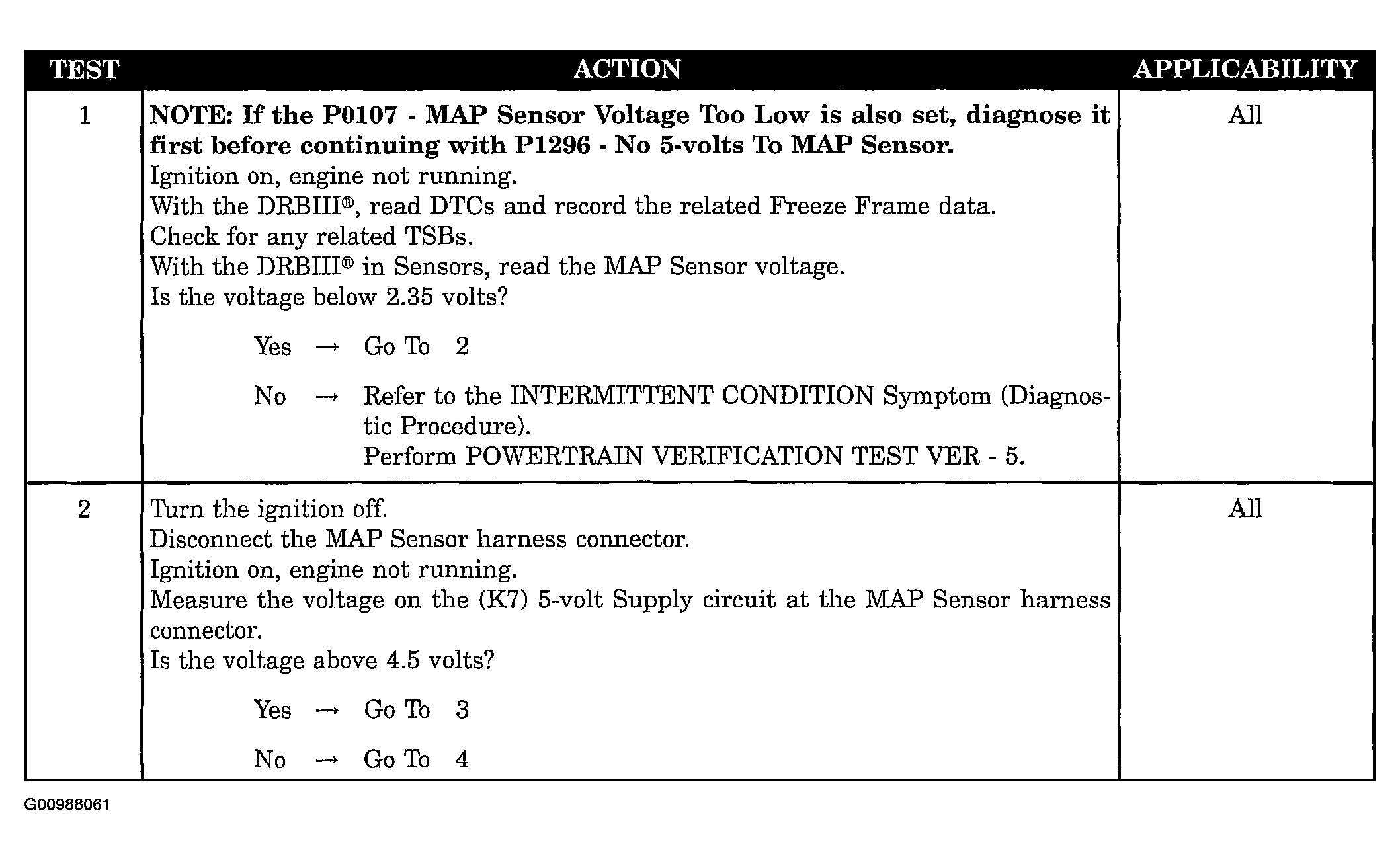

Fig 1: Testing: DTC P1296: No 5-Volts To MAP Sensor (1 Of 2)

Courtesy of DAIMLERCHRYSLER CORP.

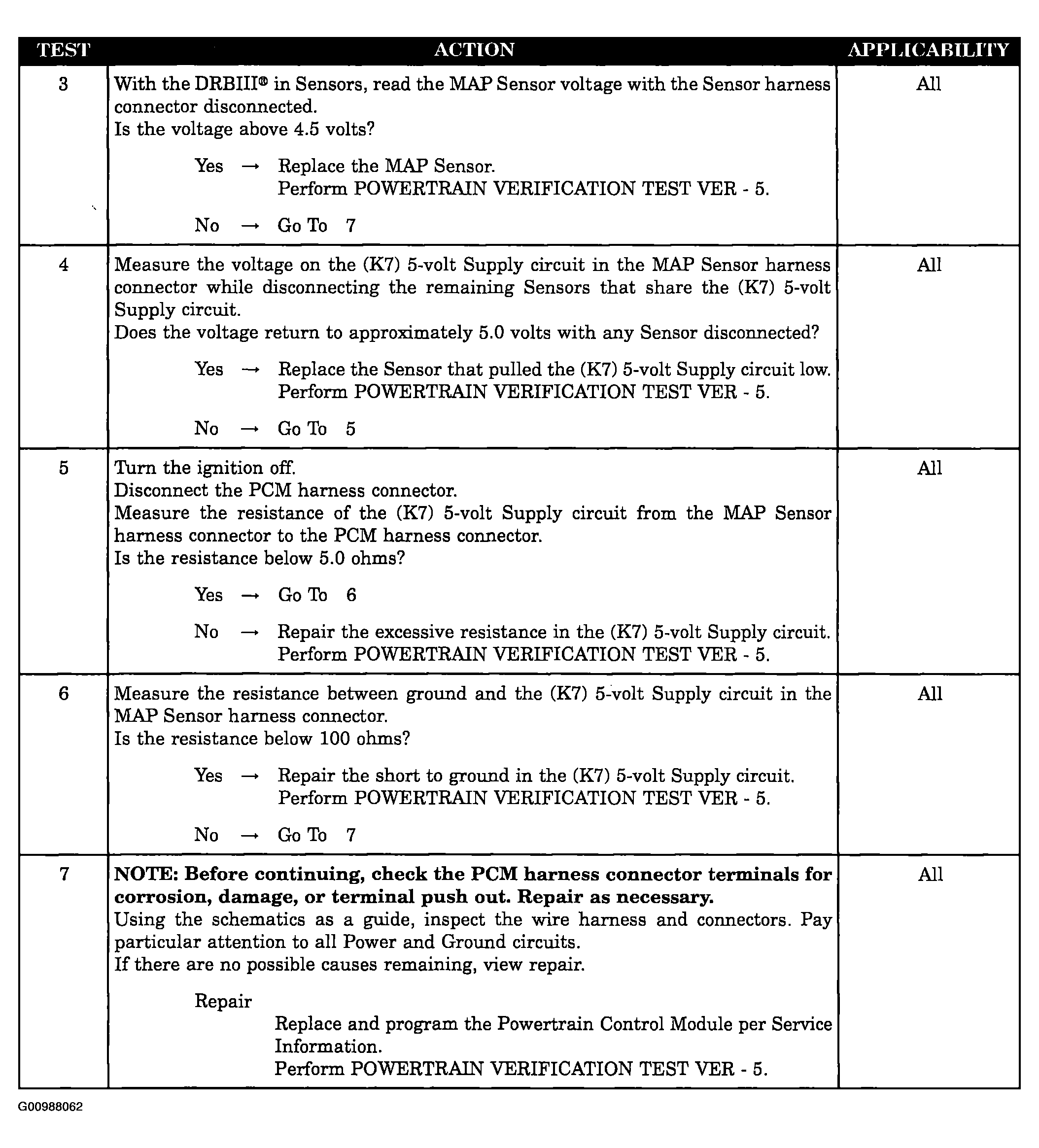

Fig 2: Testing: DTC P1296: No 5-Volts To MAP Sensor (2 Of 2)

Courtesy of DAIMLERCHRYSLER CORP.
