*Checking The Pcm Power And Grounds: Testing

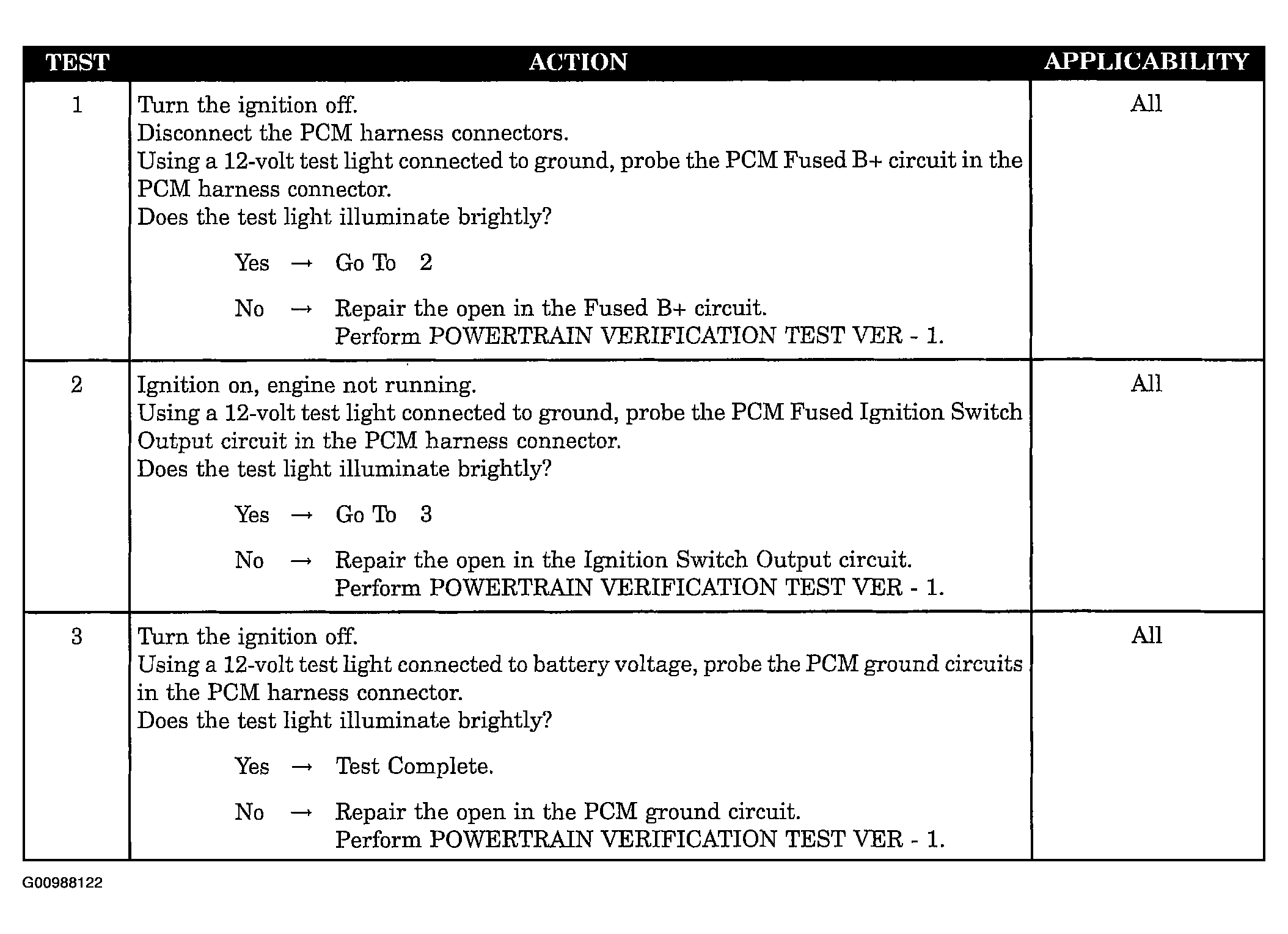

Fig 1: Testing: Checking The PCM Power And Grounds

G00988122

Courtesy of DAIMLERCHRYSLER CORP.
