Speed Control Servo - Black 4 Way

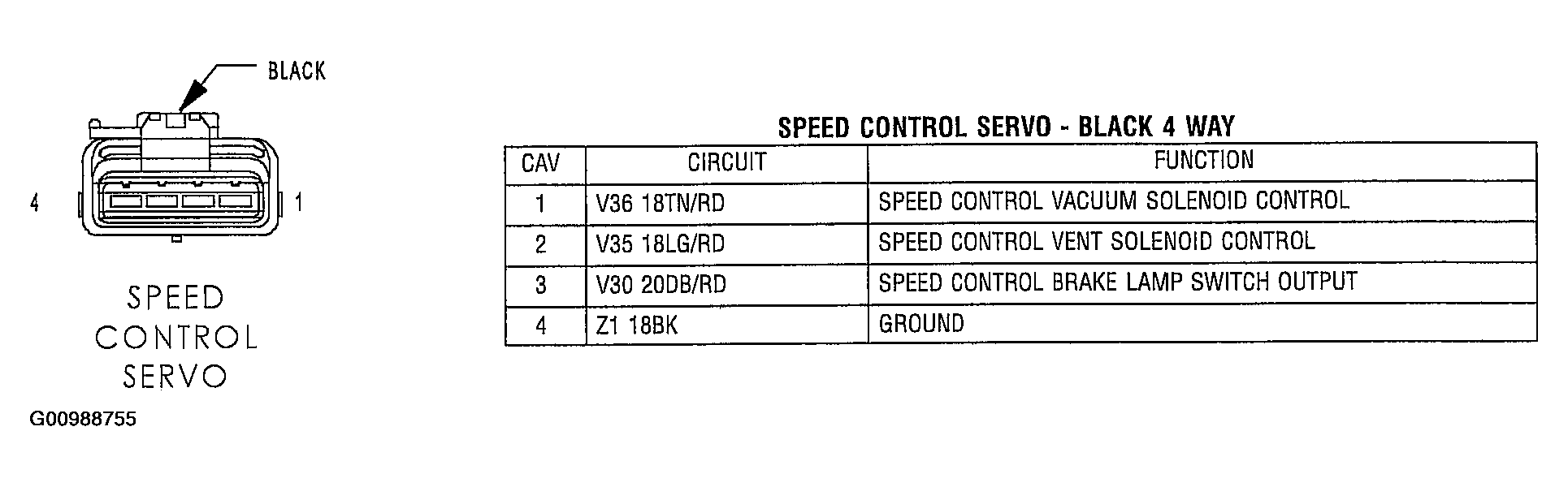

Fig 1: Identifying Speed Control Servo - Black 4 Way

G00988755

Courtesy of DAIMLERCHRYSLER CORP.
