Overdrive Off Switch - 4 Way

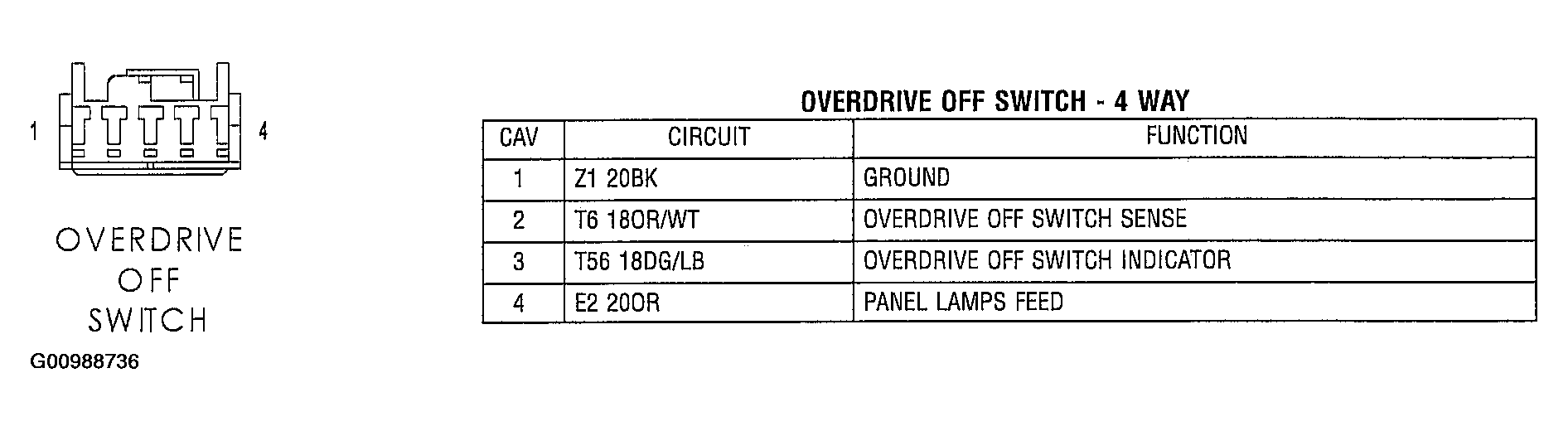

Fig 1: Identifying Overdrive Off Switch - 4 Way

G00988736

Courtesy of DAIMLERCHRYSLER CORP.
