Ignition Switch - 10 Way

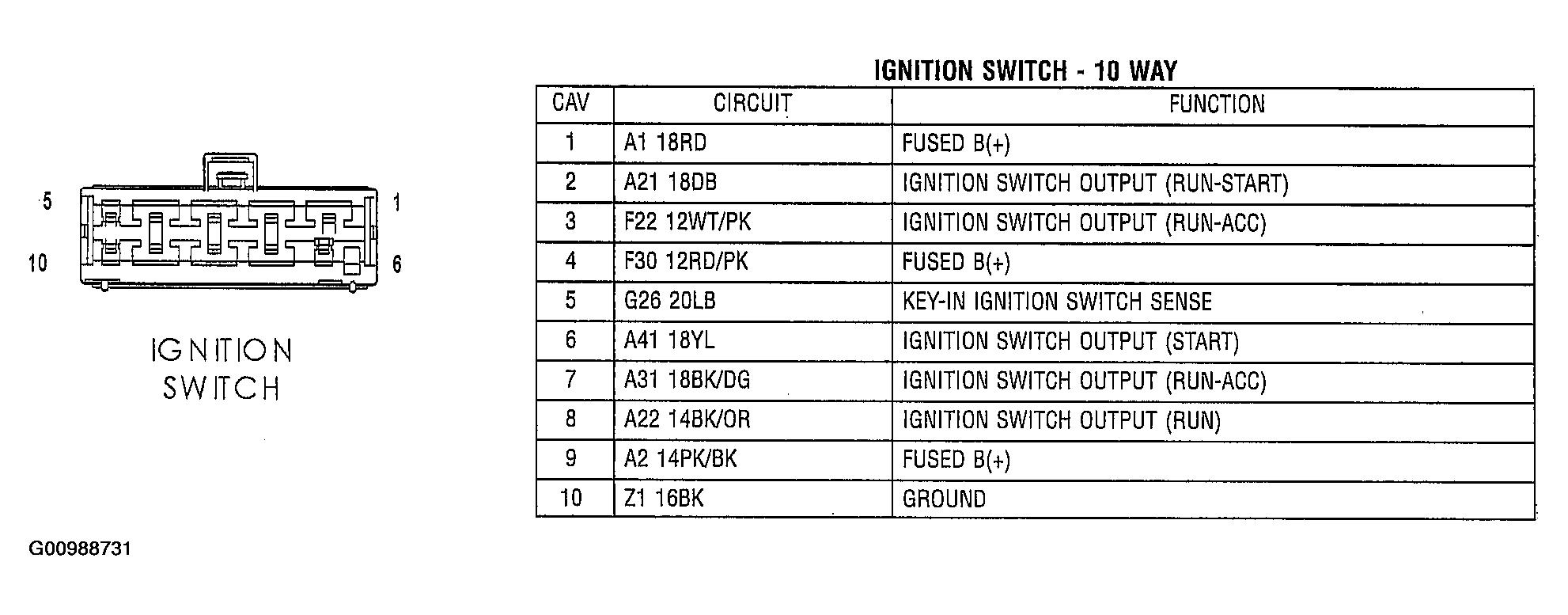

Fig 1: Identifying Ignition Switch - 10 Way

G00988731

Courtesy of DAIMLERCHRYSLER CORP.
