Fuel Pump Relay (In PDC)

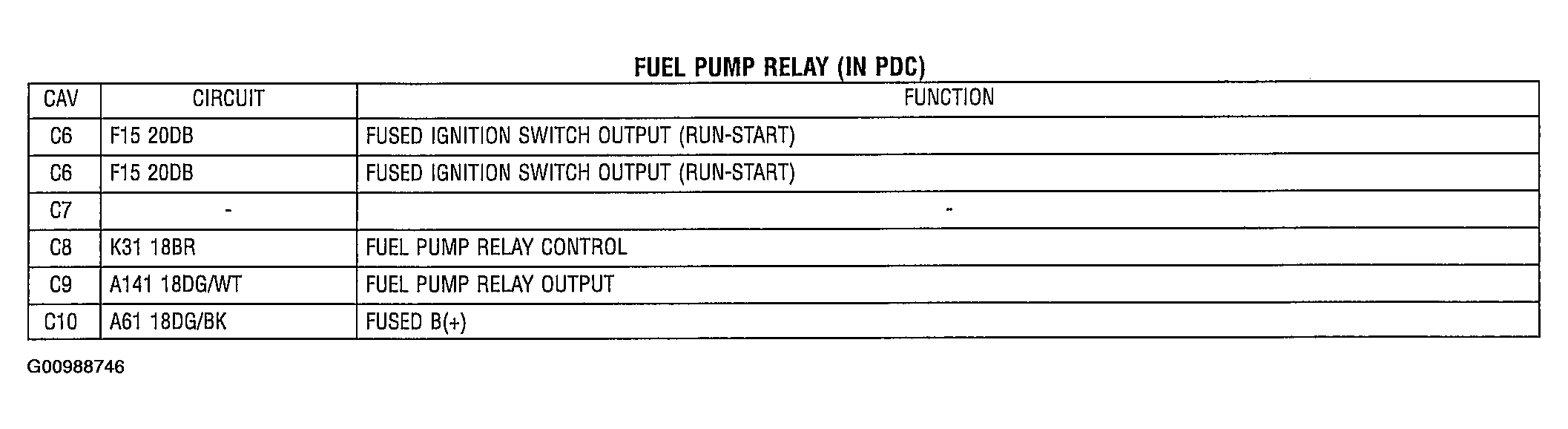

Fig 1: Identifying Fuel Pump Relay (In PDC)

G00988746

Courtesy of DAIMLERCHRYSLER CORP.
