Data Link Connector - Black 16 Way

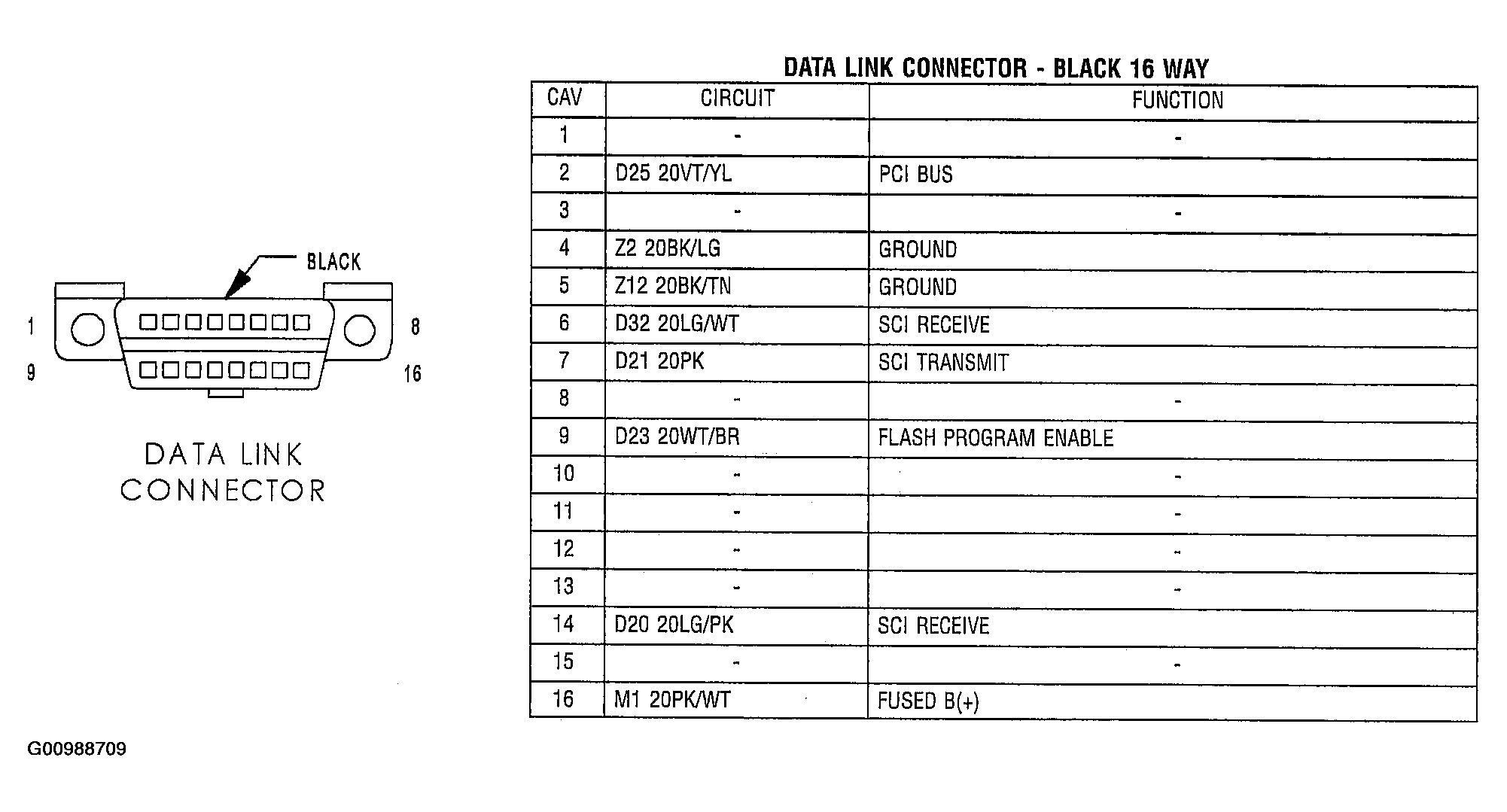

Fig 1: Identifying Data Link Connector - Black 16 Way

G00988709

Courtesy of DAIMLERCHRYSLER CORP.
