Automatic Shut Down Relay (In PDC)

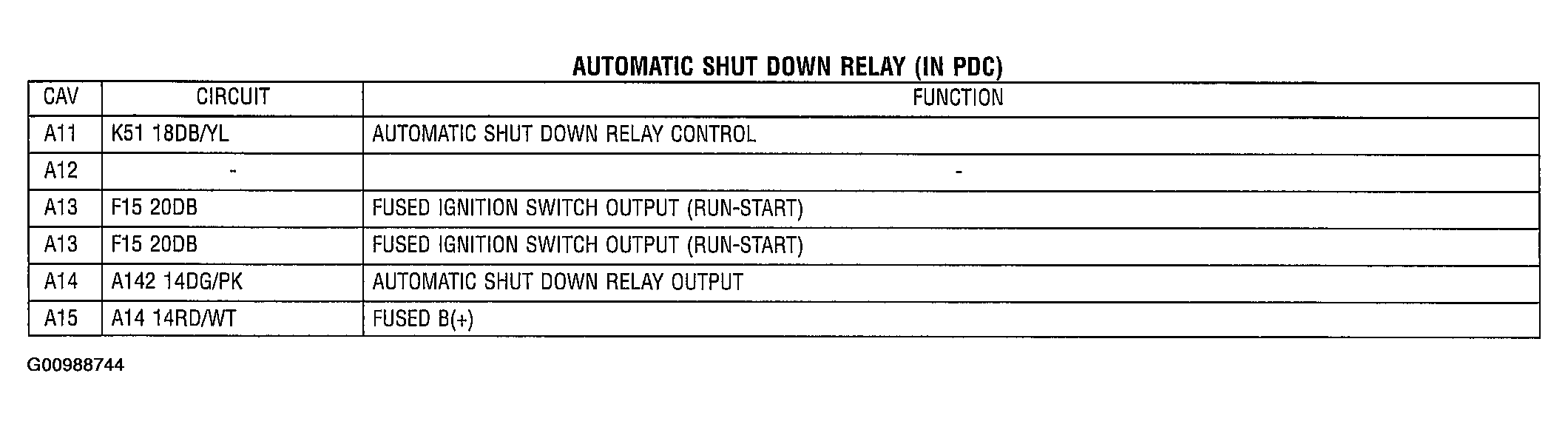

Fig 1: Identifying Automatic Shut Down Relay (In PDC)

G00988744

Courtesy of DAIMLERCHRYSLER CORP.
