A/C Compressor Clutch Relay (In PDC)

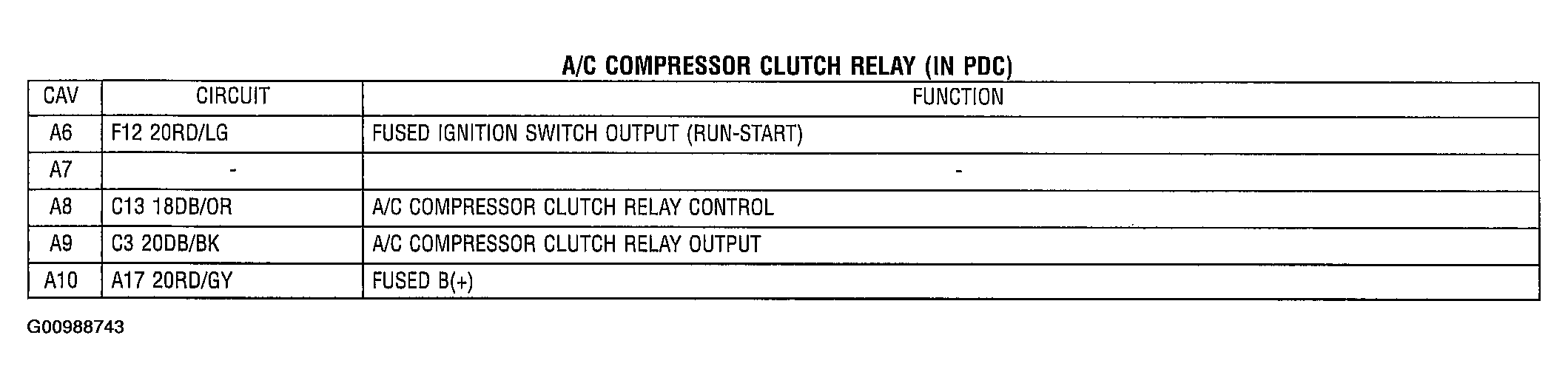

Fig 1: Identifying A/C Compressor Clutch Relay (In PDC)

G00988743

Courtesy of DAIMLERCHRYSLER CORP.
