Powertrain Control Module C1 - Black 32 Way

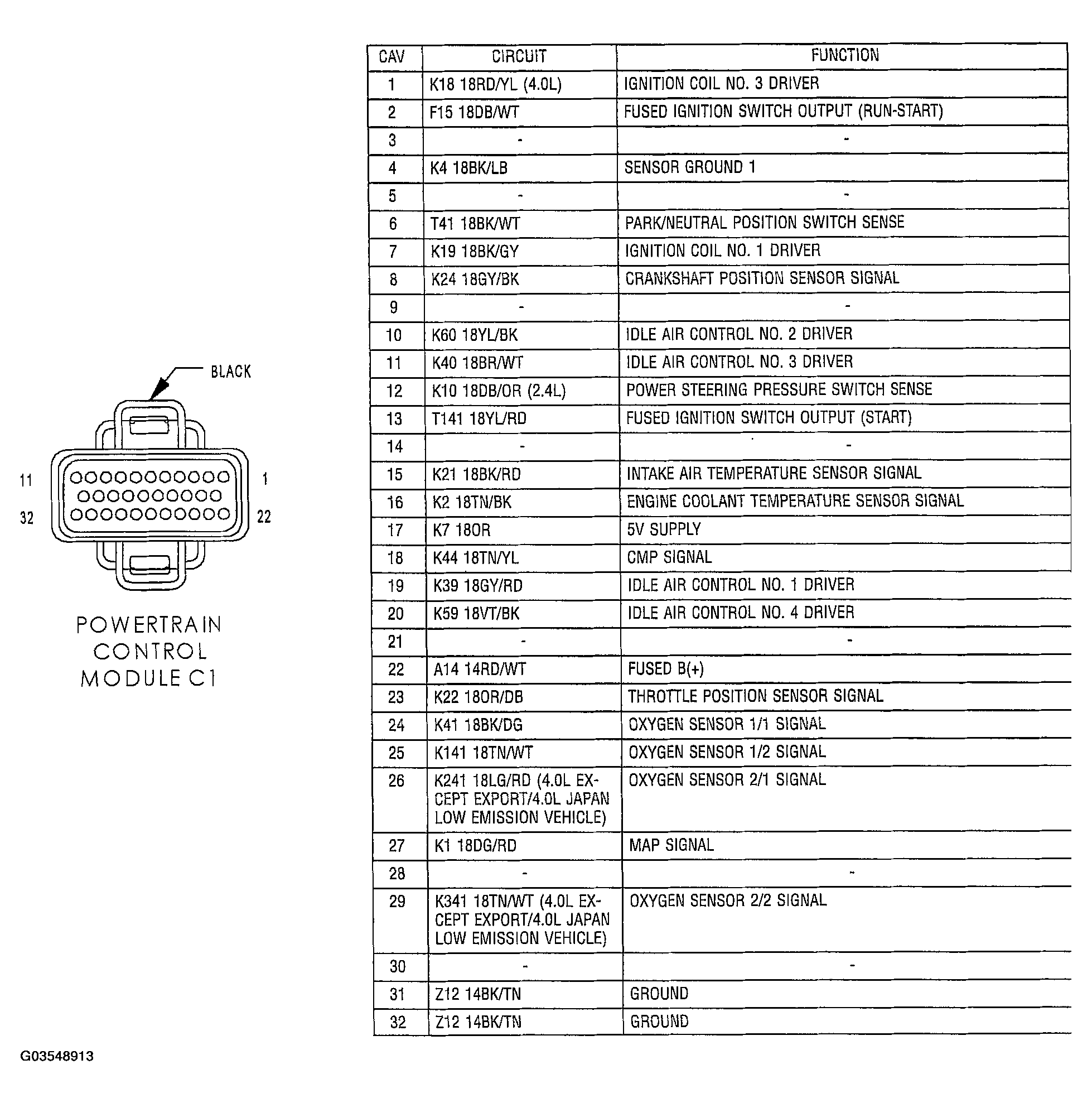

Fig 1: Identifying Powertrain Control Module C1 Connector Terminals And Specification (Black 32 Way)

G03548913

Courtesy of DAIMLERCHRYSLER CORP.
