Airbag Control Module - Yellow 22 Way

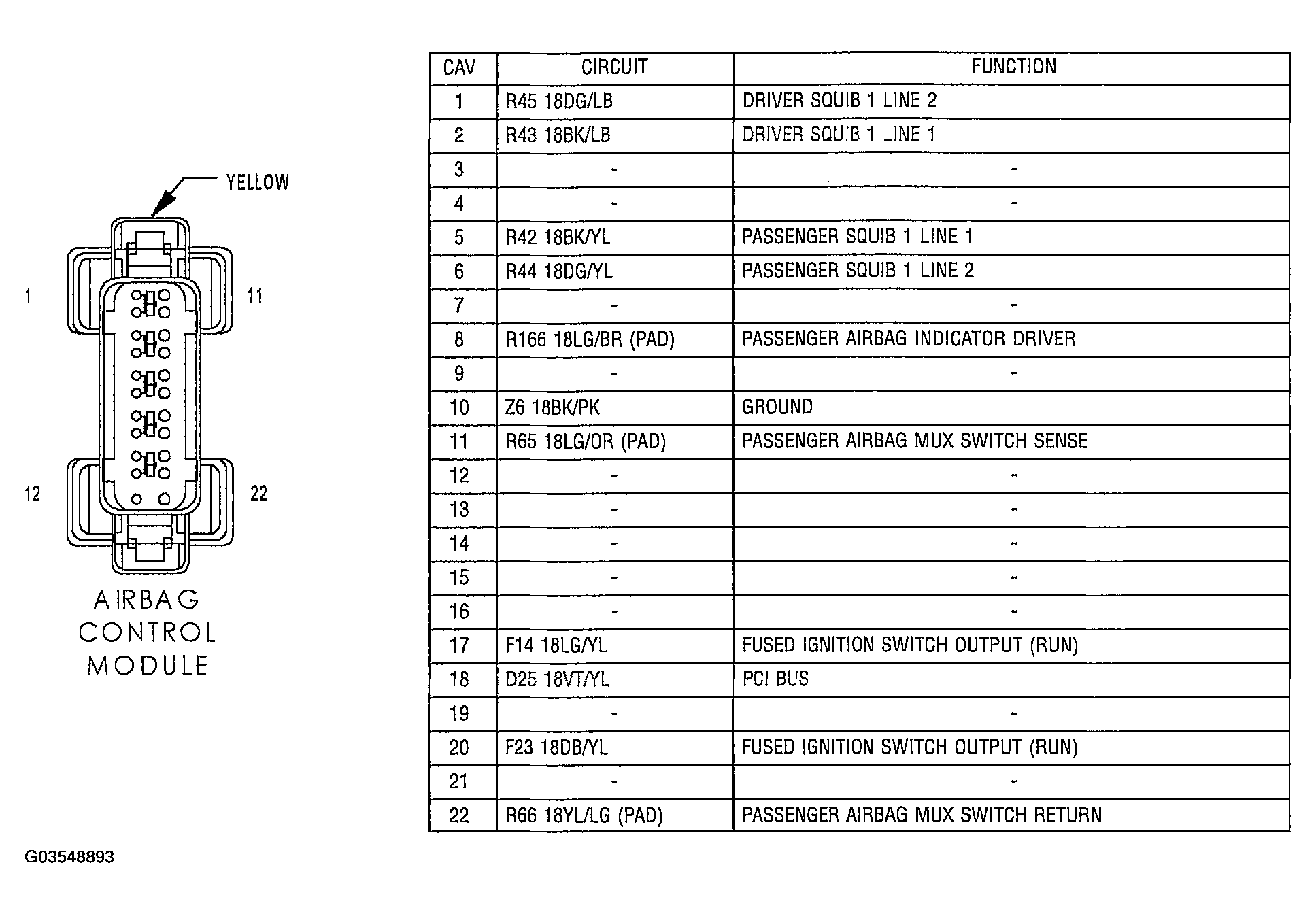

Fig 1: Identifying Airbag Control Module Connector Terminals And Specification (Yellow 22 Way)

G03548893

Courtesy of DAIMLERCHRYSLER CORP.
