A/C Compressor Clutch Connector End View

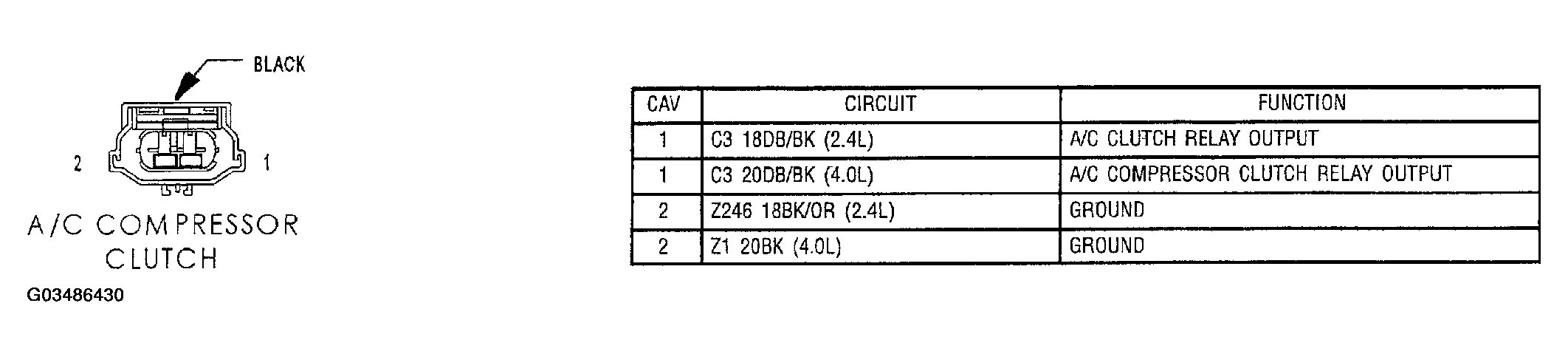

Fig 1: A/C Compressor Clutch Connector End View

G03486430

Courtesy of DAIMLERCHRYSLER CORP.
