Intrusion Transceiver Module (Export) - Black 6 Way Connector End View

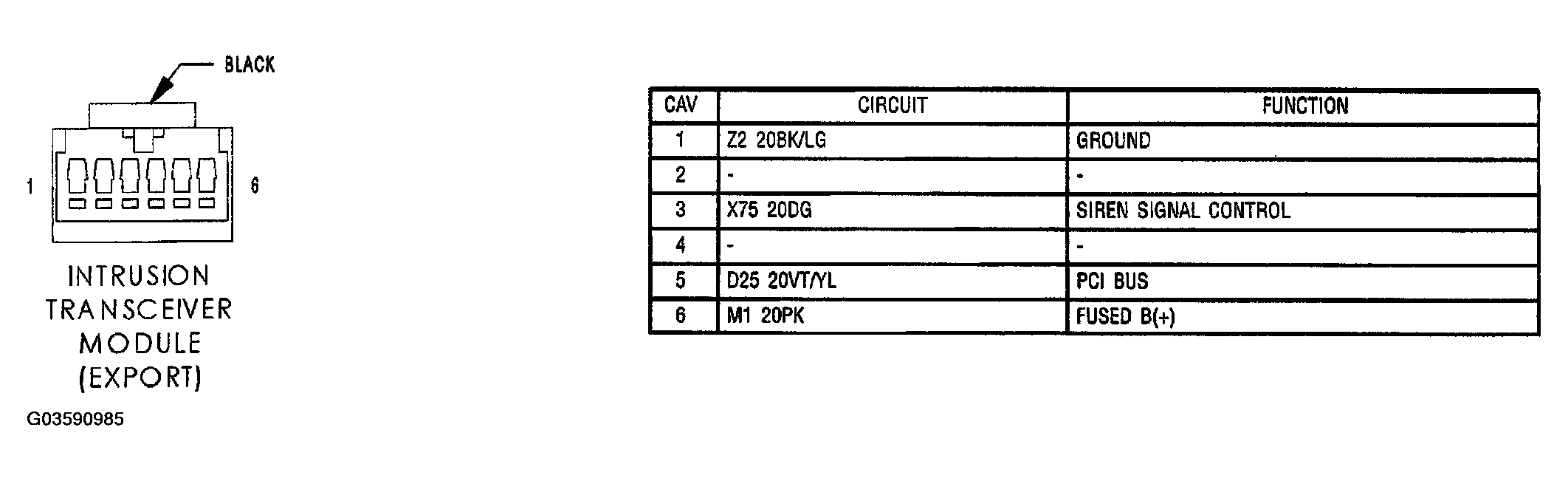

Fig 1: Intrusion Transceiver Module (Export) Connector End View

G03590985

Courtesy of DAIMLERCHRYSLER CORP.
