Body Control Module C3 (Premium) - 6 Way Connector End View

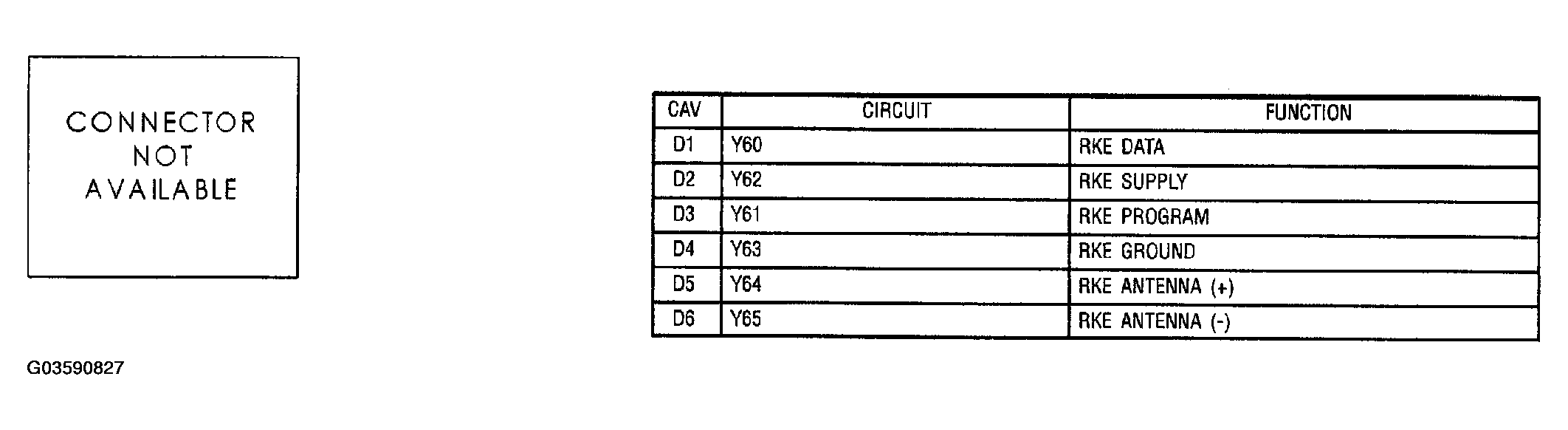

Fig 1: Body Control Module (Premium) Connector End View (C3)

G03590827

Courtesy of DAIMLERCHRYSLER CORP.
