Hands Free Module C1 - 22 Way Connector End View

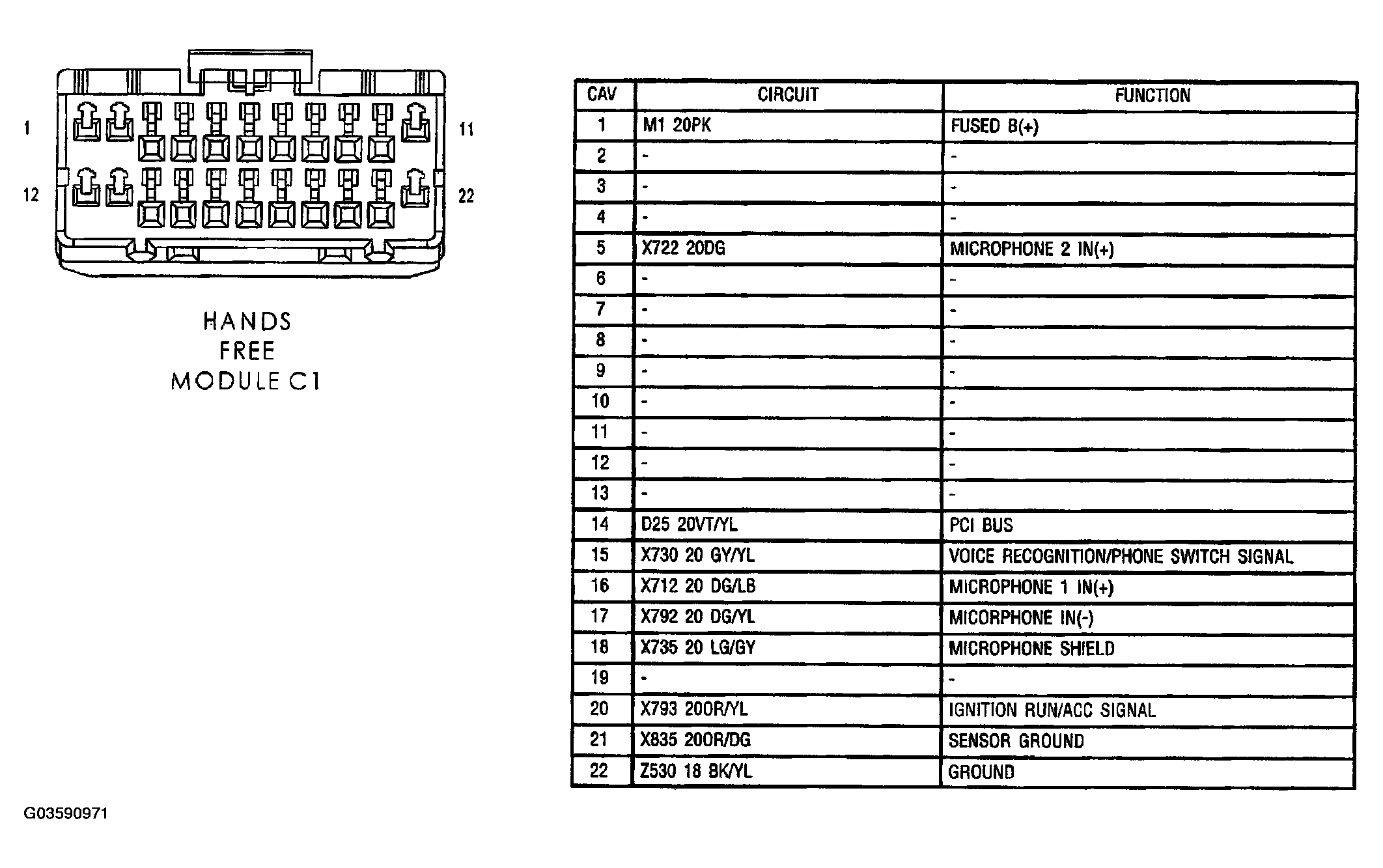

Fig 1: Hands Free Module Connector End View (C1)

G03590971

Courtesy of DAIMLERCHRYSLER CORP.
