Cooling System Routing 3.7L Engine

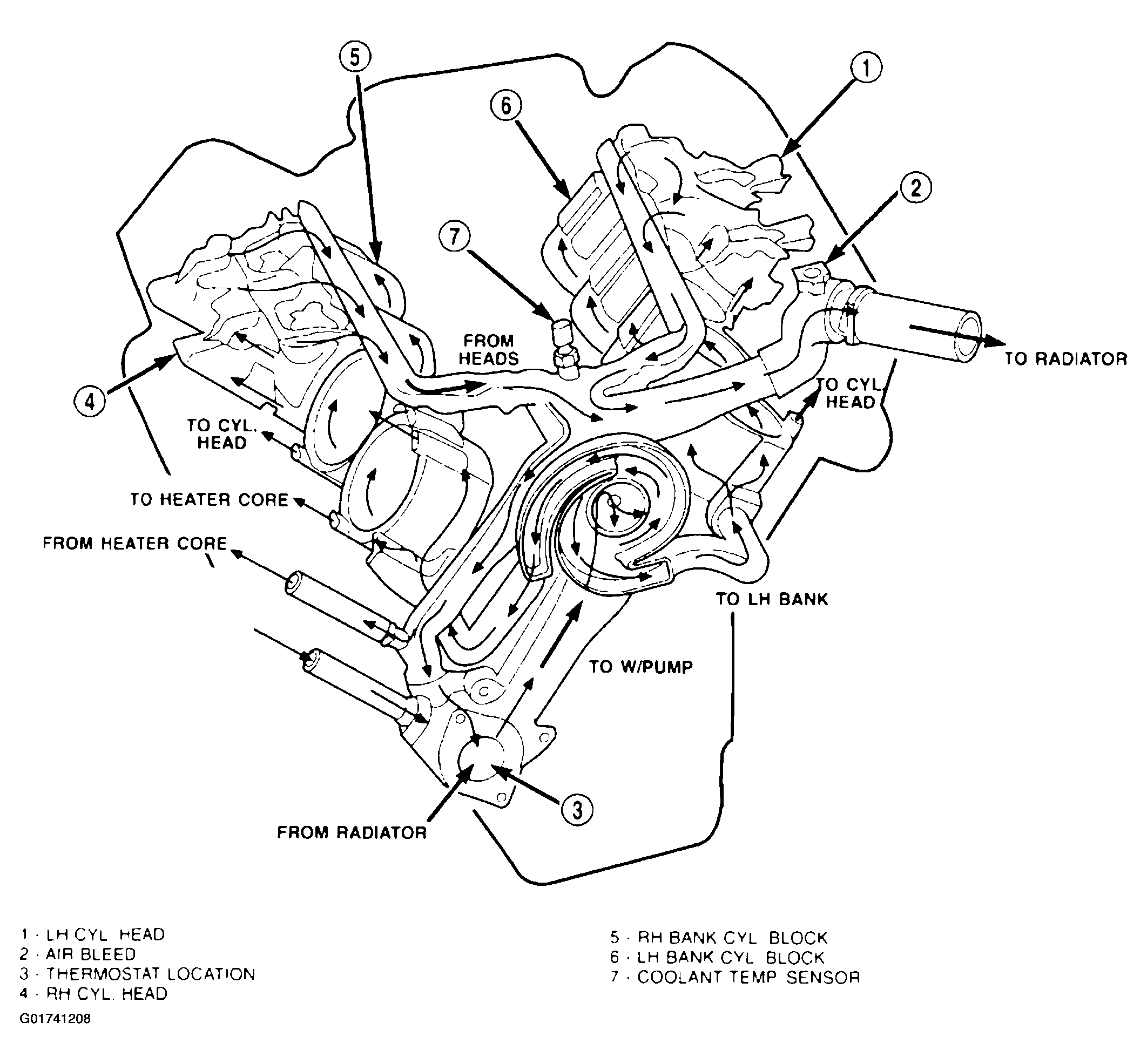

Fig 1: Identifying Engine Cooling System 3.7L

G01741208

Courtesy of DAIMLERCHRYSLER CORP.
