Installation - 4.7L Engine
WARNING: This page is about a different car, the 2004 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.
- Thoroughly clean cylinder block core hole and block heater seat.

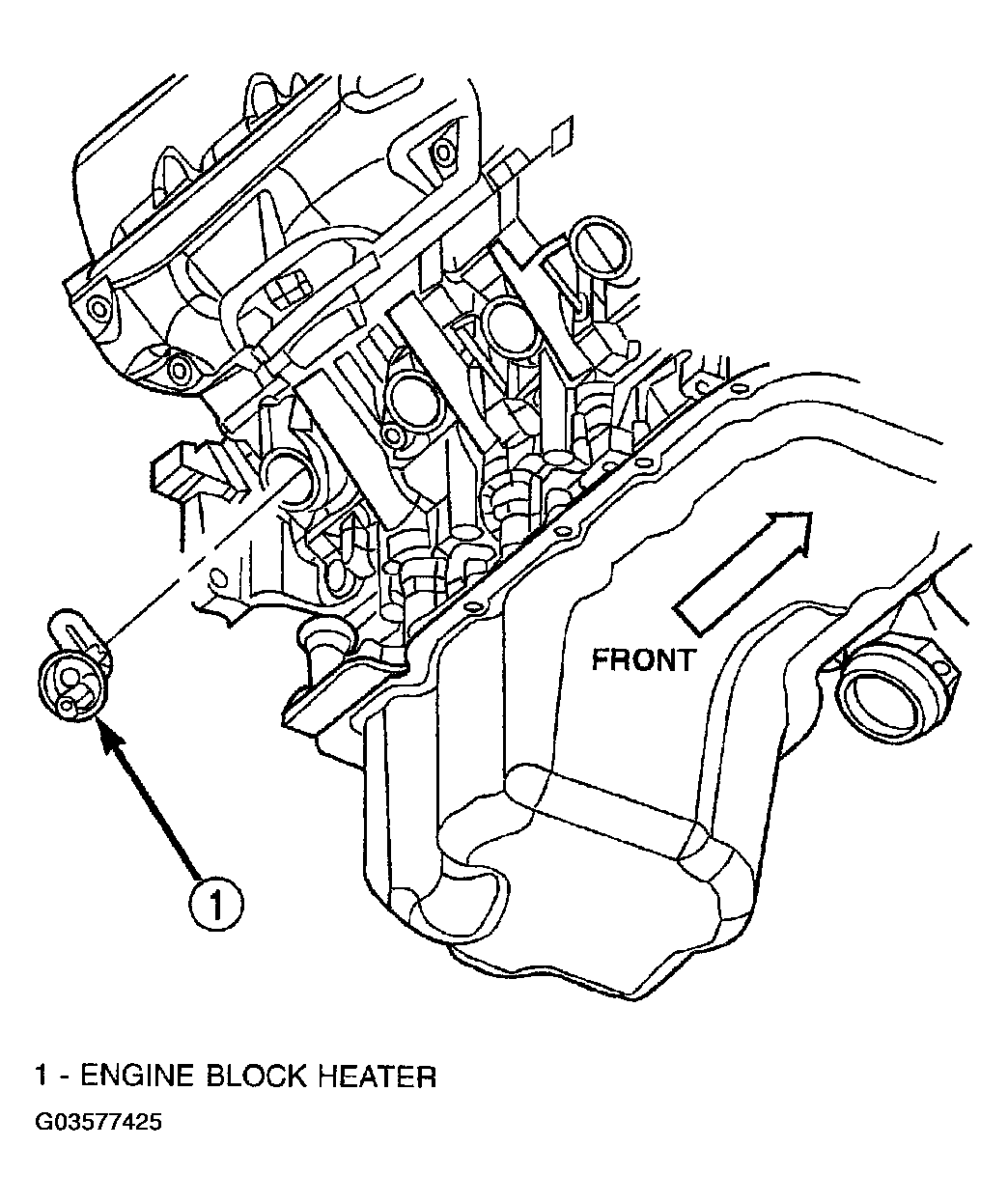

- Insert block heater assembly with element loop pointing at twelve o'clock (Figure ).
- With block heater fully seated, tighten center screw to 2 N.m (17 in. lbs.) torque.
- Refill cooling system (Refer to STANDARD PROCEDURE ).
- Start and warm the engine. Check for leaks.
