Body Verification Test VER-1

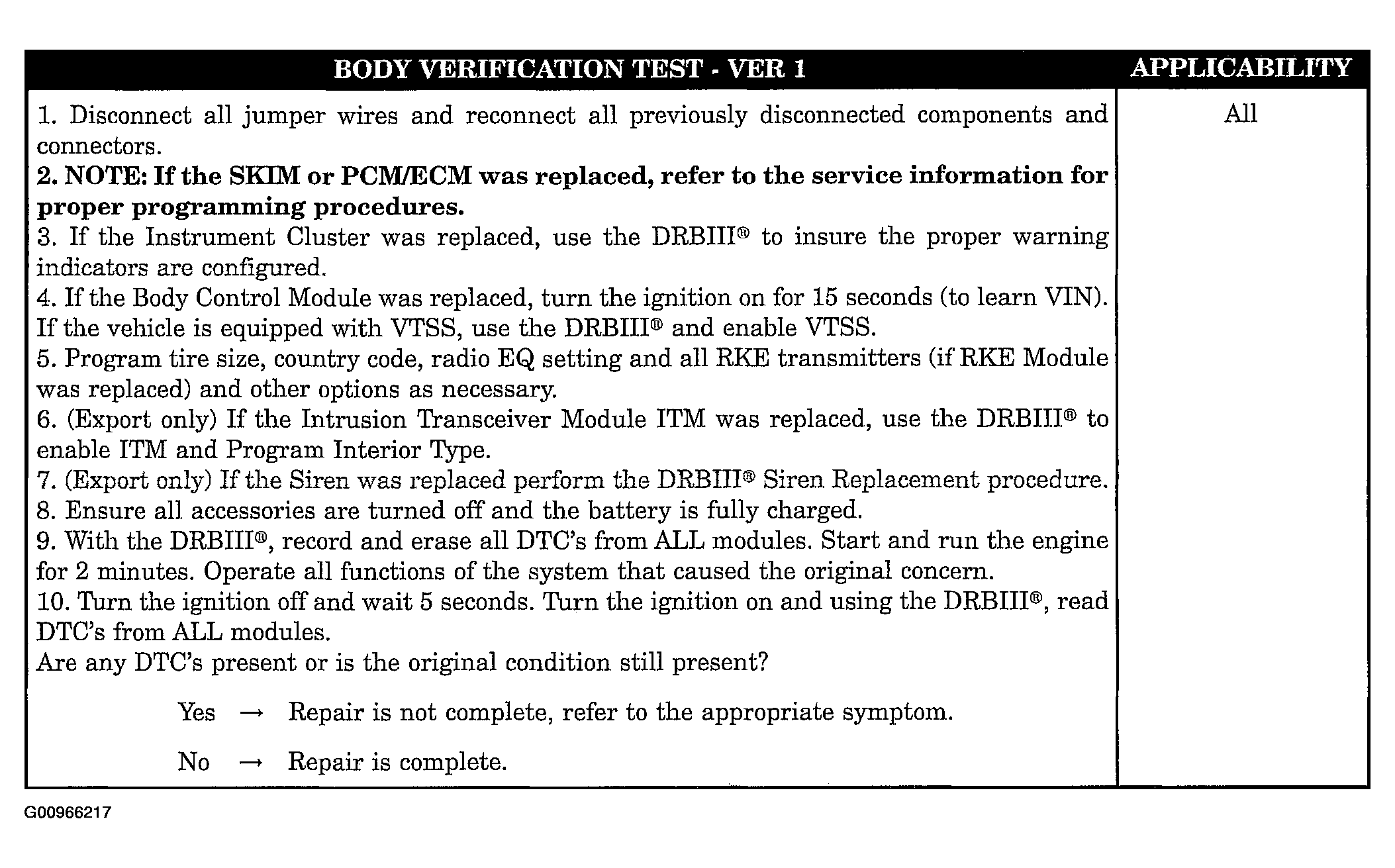

Fig 1: Body Verification Test VER-1

G00966217

Courtesy of DAIMLERCHRYSLER CORP.
