Symptom: *START AND STALL CONDITION: Testing

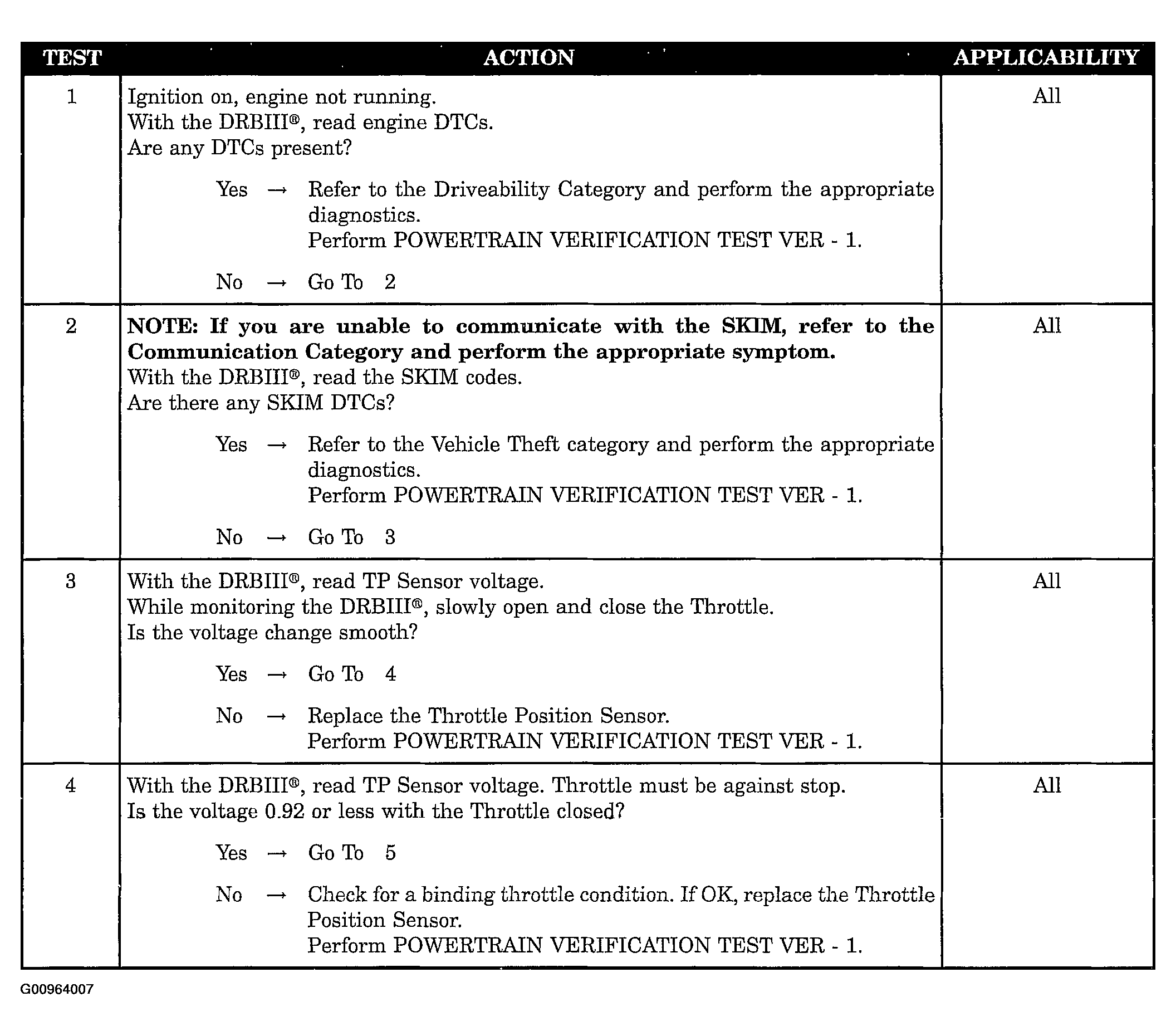

Fig 1: Testing: Start And Stall Condition (1 Of 2)
G00964007Courtesy of DAIMLERCHRYSLER CORP.

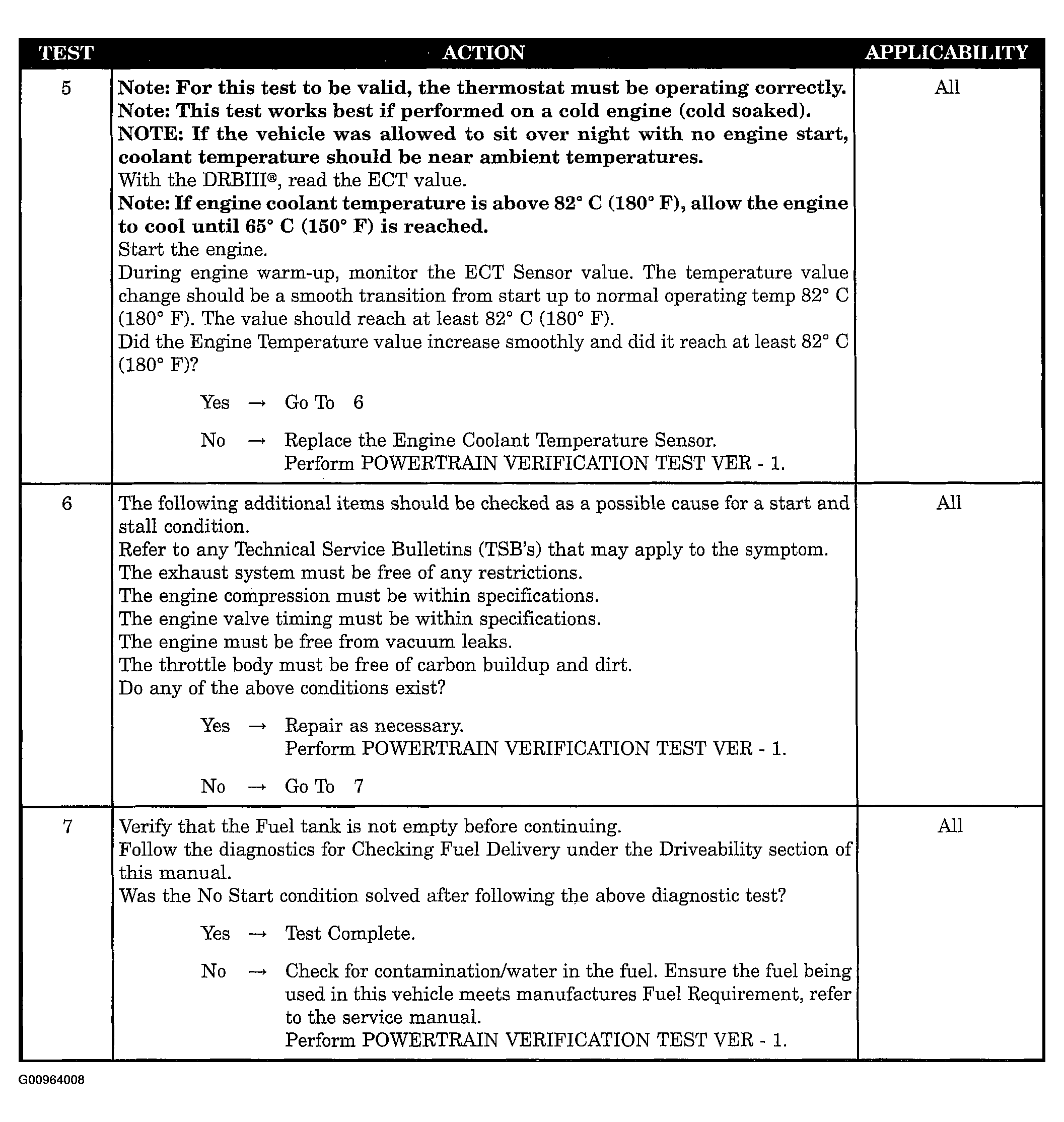

Fig 2: Testing: Start And Stall Condition (2 Of 2)
G00964008Courtesy of DAIMLERCHRYSLER CORP.
