Generator - 2 Way Connector End View

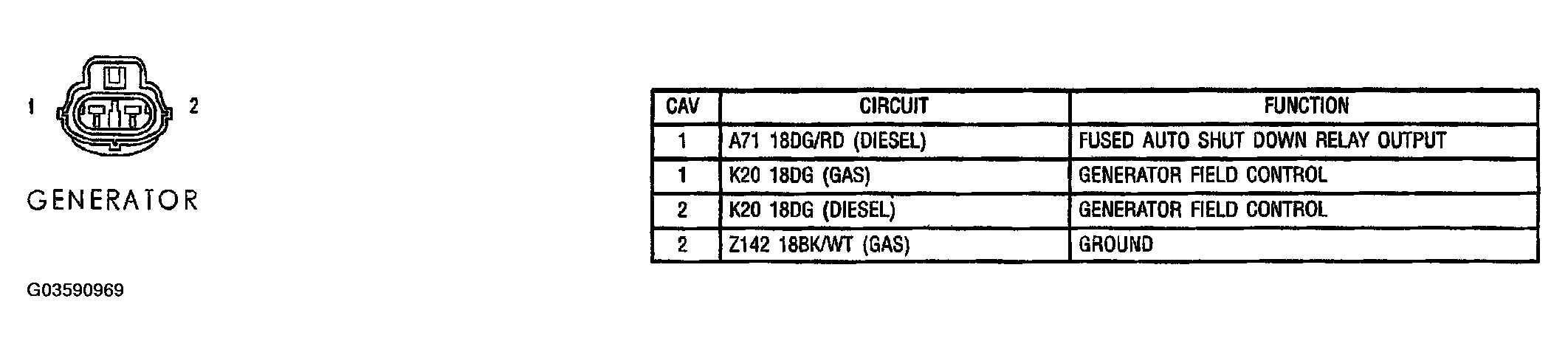

Fig 1: Generator Connector End View

G03590969

Courtesy of DAIMLERCHRYSLER CORP.
