Interior Lighting

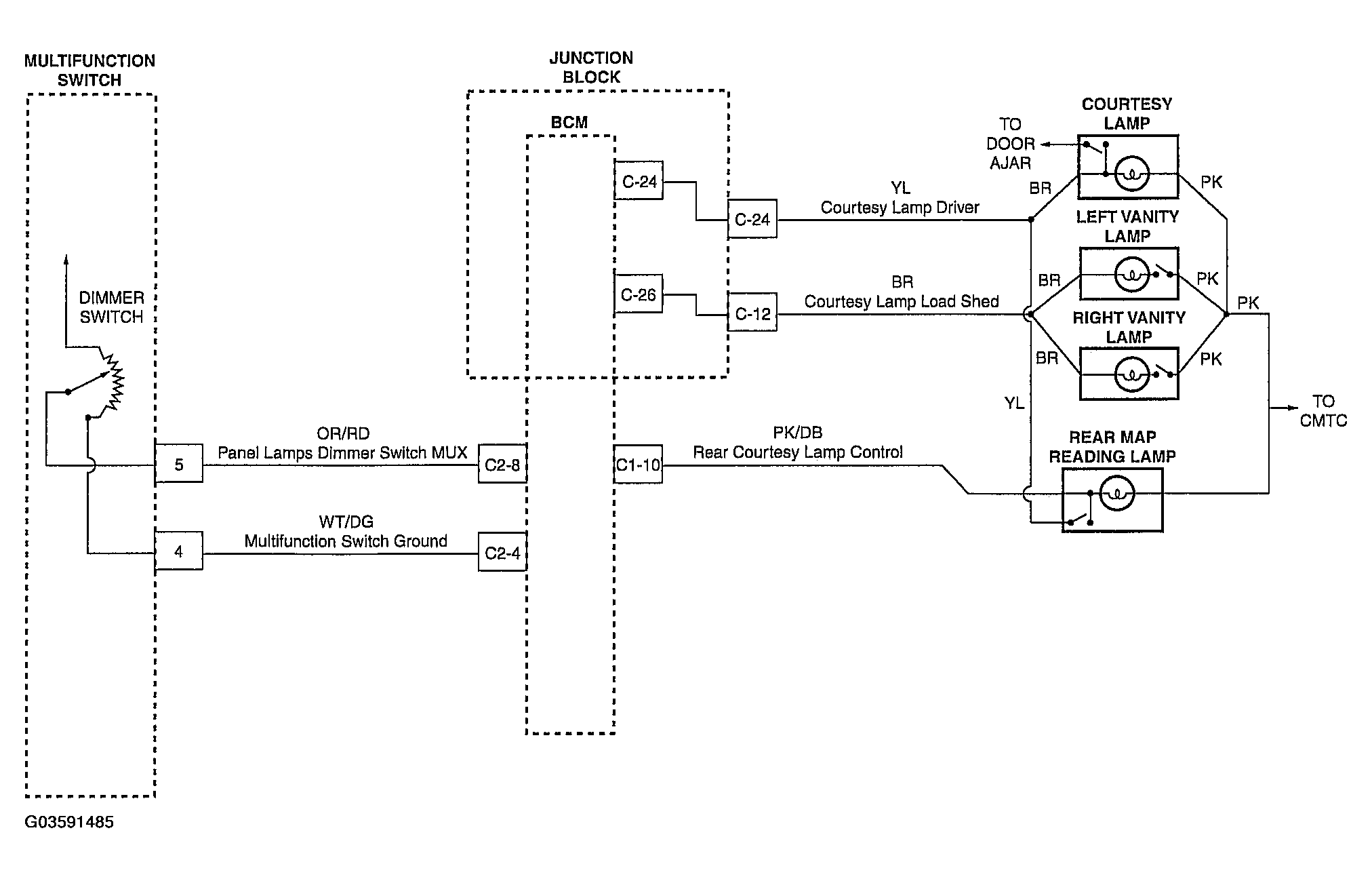

Fig 1: Interior Lighting Schematic Diagrams

G03591485

Courtesy of DAIMLERCHRYSLER CORP.
