Remote Radio Controls

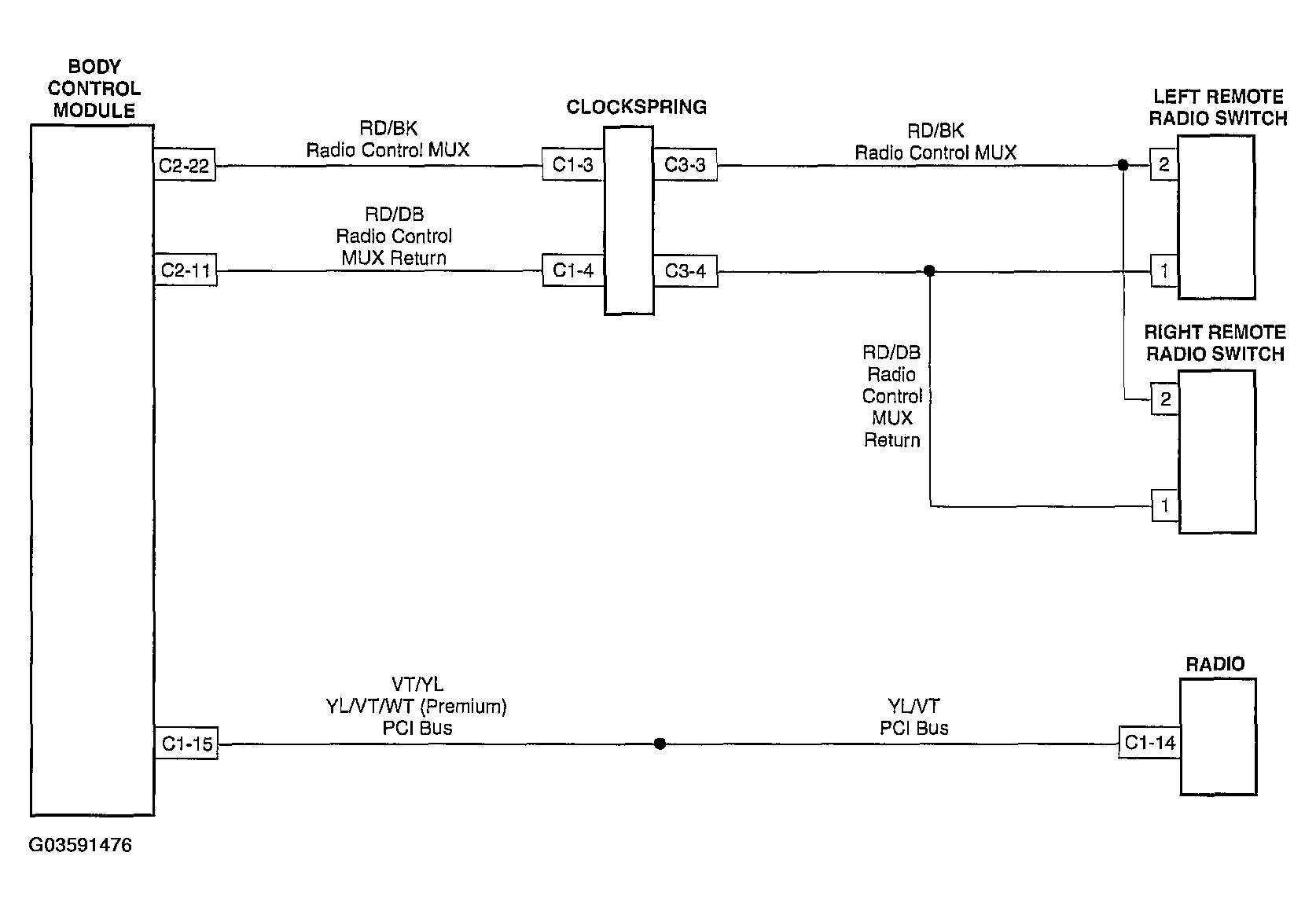

Fig 1: Remote Radio Controls Schematic Diagrams

G03591476

Courtesy of DAIMLERCHRYSLER CORP.
