Engine Control Module C1 (Diesel) - 81 Way

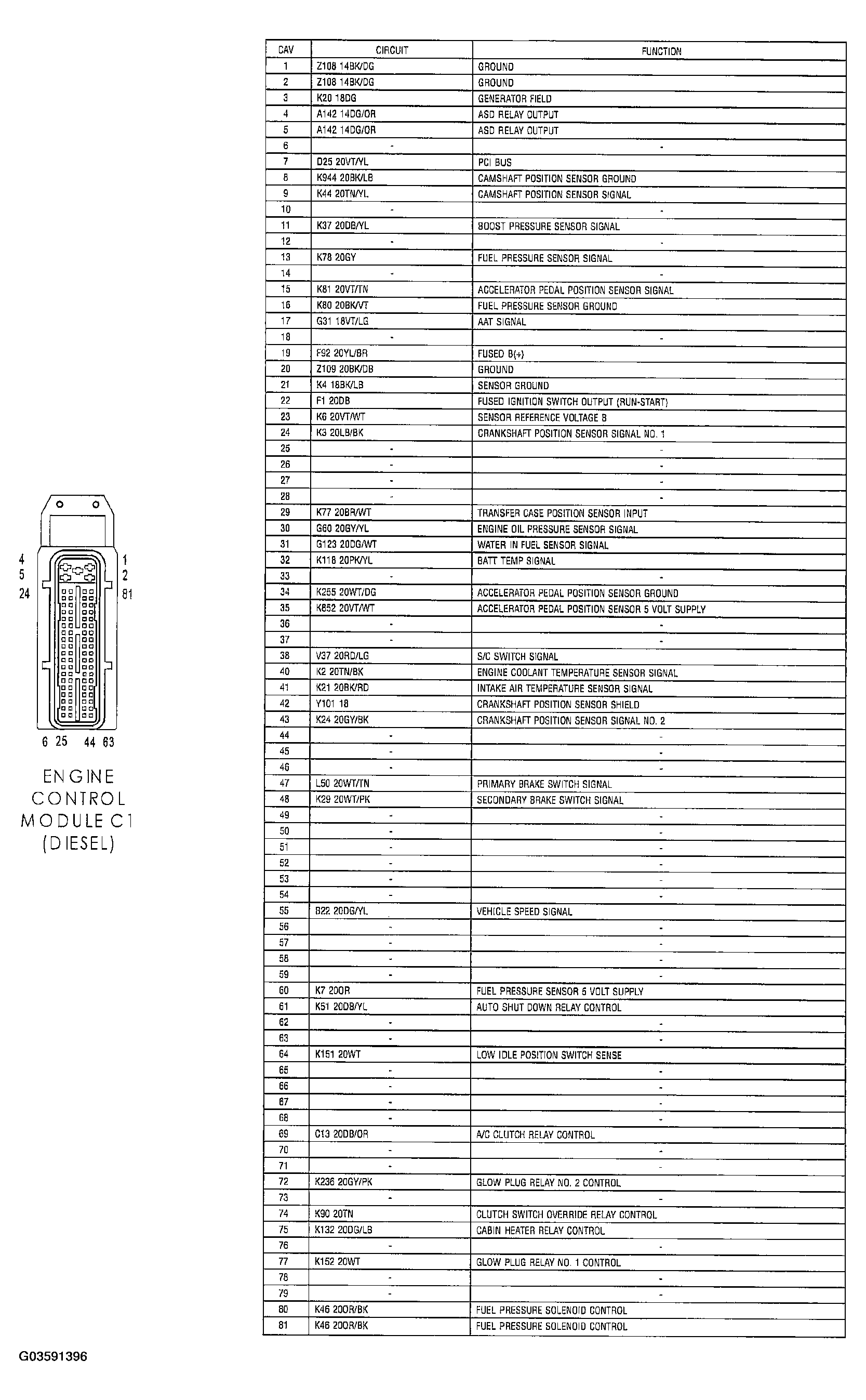

Fig 1: Identifying Engine Control Module C1 (Diesel) - 81 Way Connector Pinout

G03591396

Courtesy of DAIMLERCHRYSLER CORP.
