Powertrain Control Module C3 (3.7L) - 38 Way Connector End View

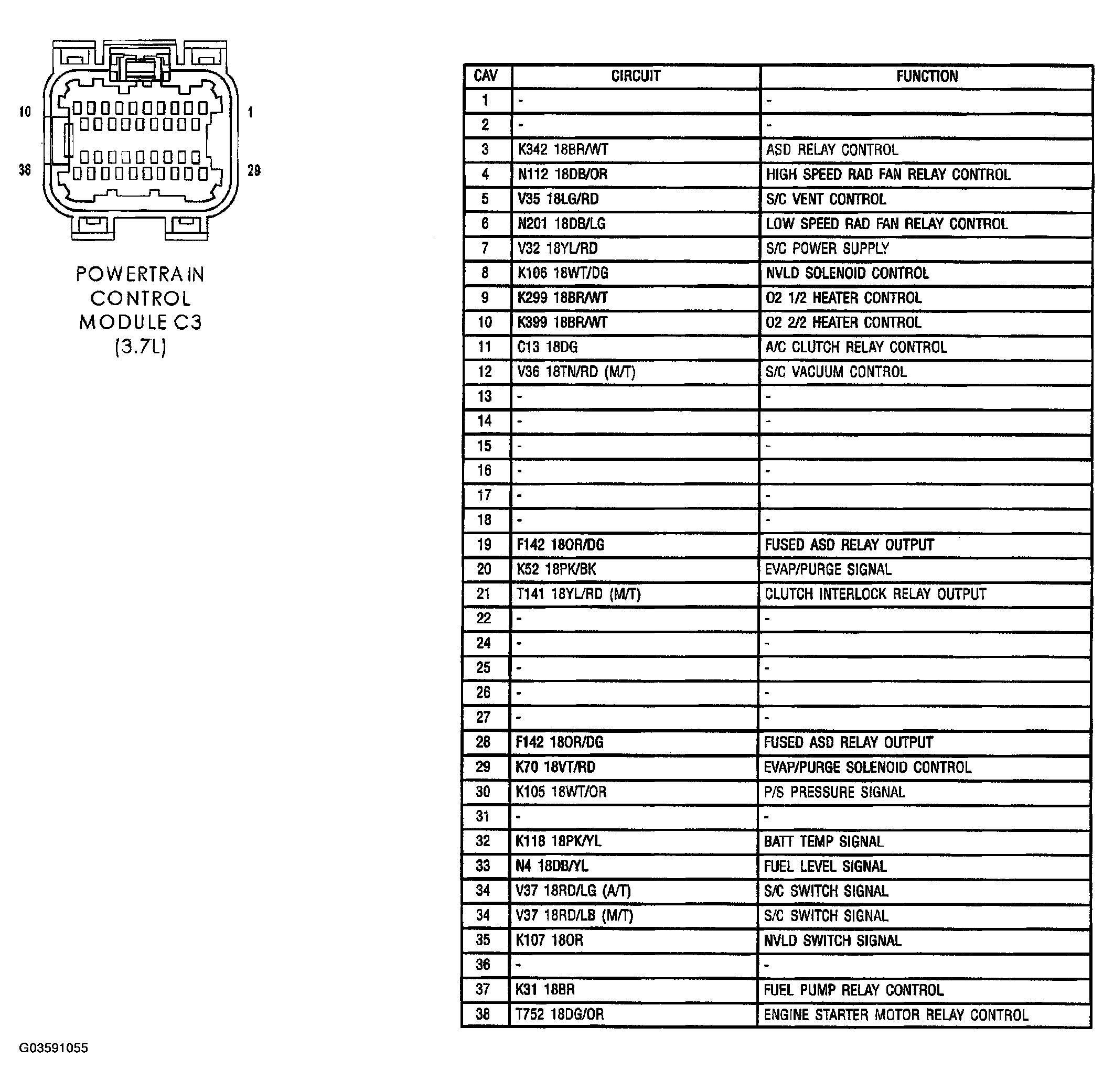

Fig 1: Powertrain Control Module (3.7L) Connector End View (C3)

G03591055

Courtesy of DAIMLERCHRYSLER CORP.
