Idle Air Control Motor Connector End View

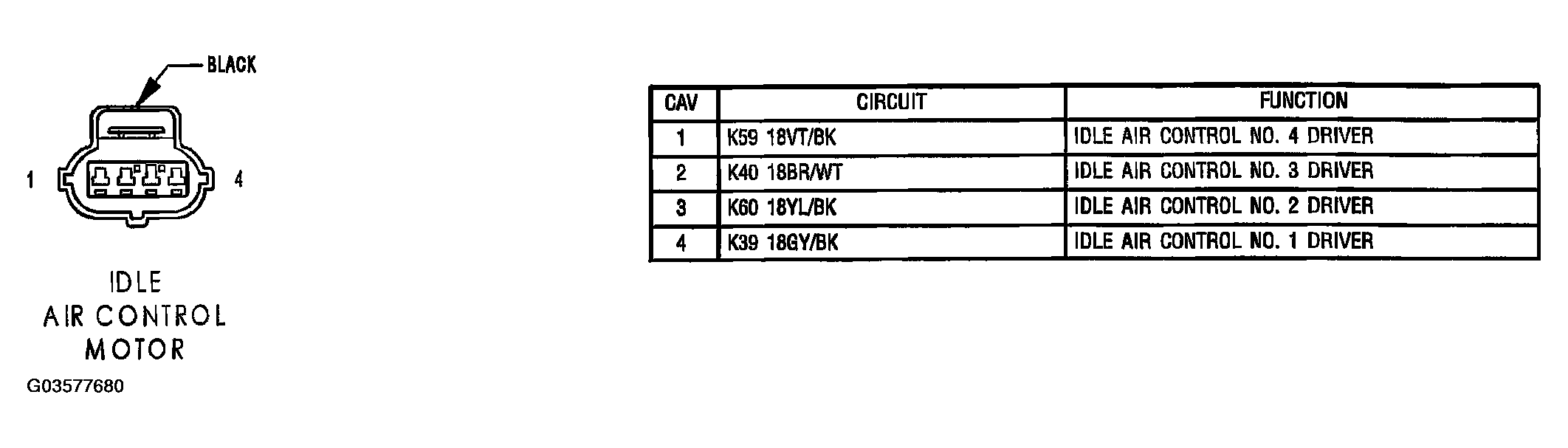

Fig 1: Idle Air Control Motor Connector End View

G03577680

Courtesy of DAIMLERCHRYSLER CORP.
