Generator (Gas) Connector End View

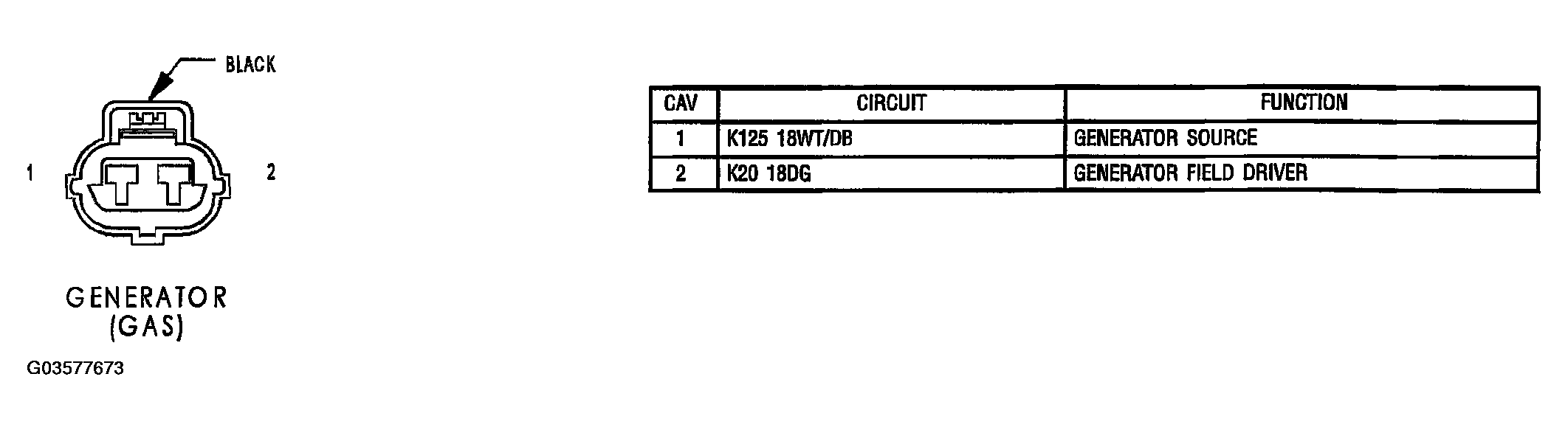

Fig 1: Generator (Gas) Connector End View

G03577673

Courtesy of DAIMLERCHRYSLER CORP.
