C111 Connector End View

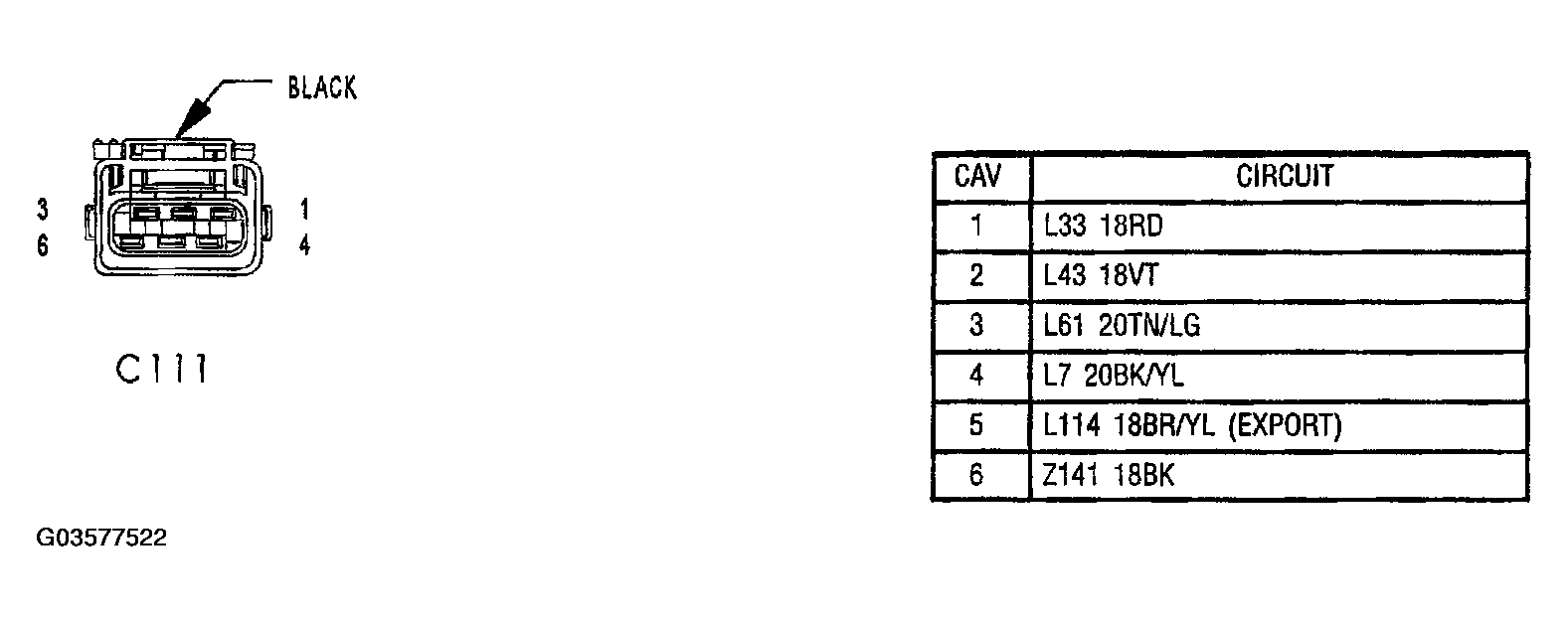

Fig 1: Left Front Lighting Module Side Inline Connector End View (C111)
G03577522Courtesy of DAIMLERCHRYSLER CORP.

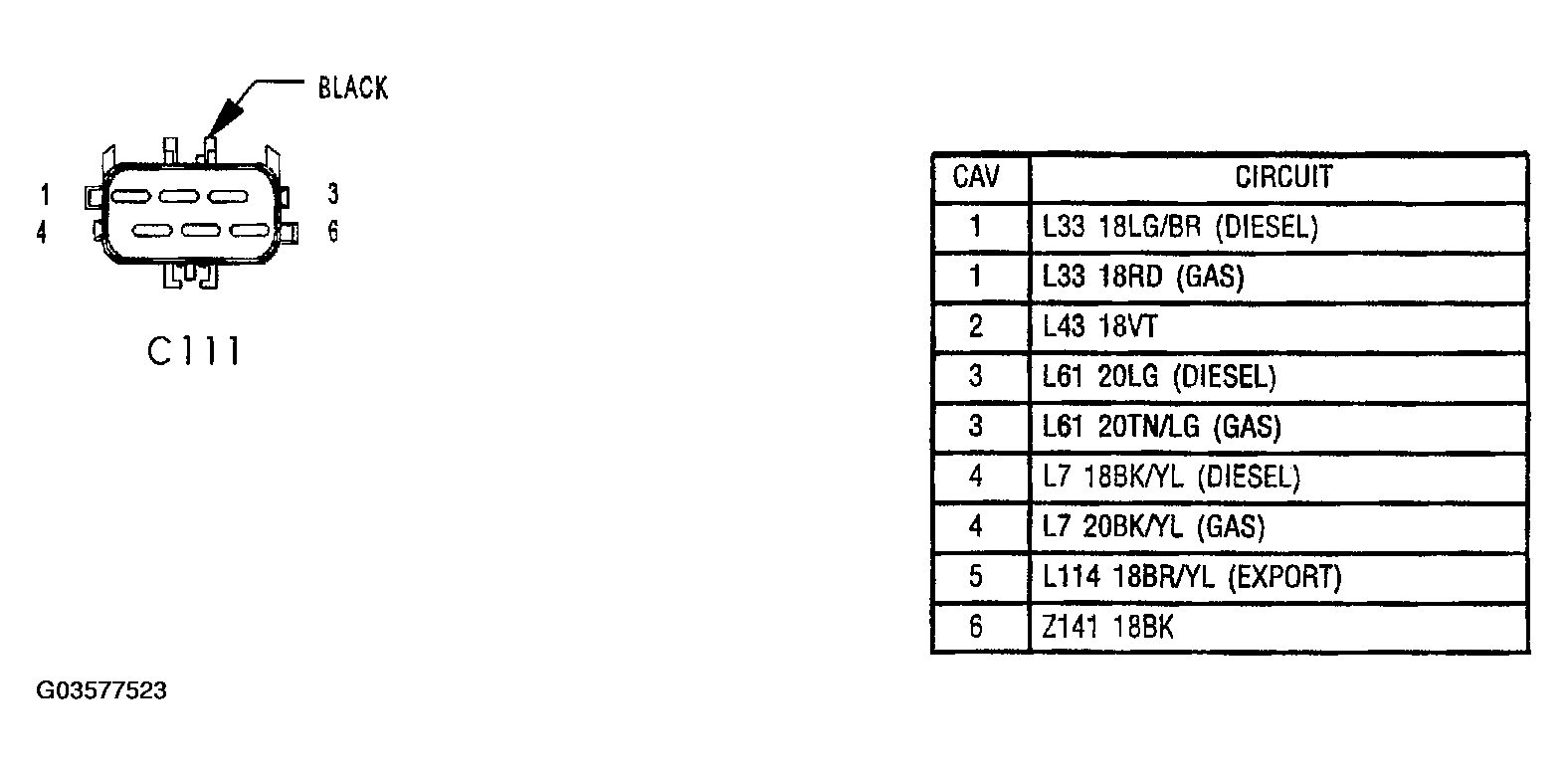

Fig 1: Left Headlamp And Dash Side Inline Connector End View (C111)
G03577523Courtesy of DAIMLERCHRYSLER CORP.
