Possible Causes

  1. GOOD TRIP EQUAL TO ZERO
  2. EXHAUST LEAK
  3. RESISTANCE IN THE O2 SENSOR SIGNAL CIRCUIT
  4. RESISTANCE IN THE (K4) SENSOR GROUND CIRCUIT
  5. O2 SENSOR

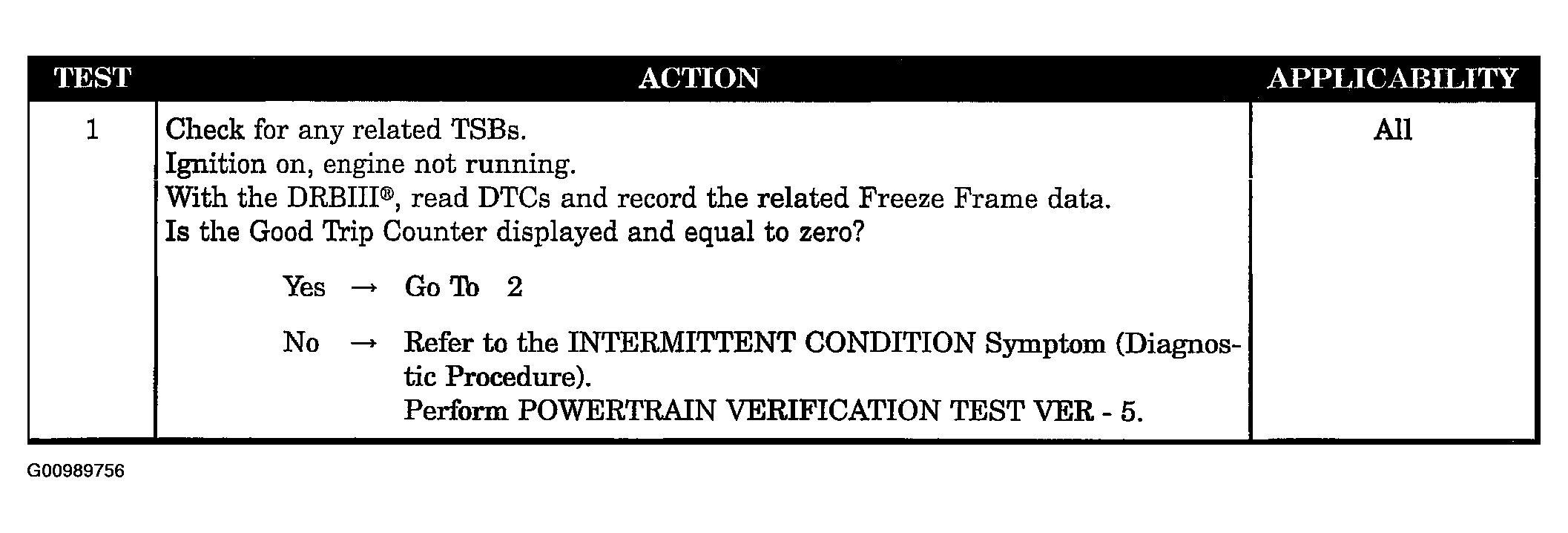

    Fig 1: Diagnosis Procedure - P1195, P1196 Slow During Catalyst Monitor (Test 1)
    G00989756Courtesy of DAIMLERCHRYSLER CORP.

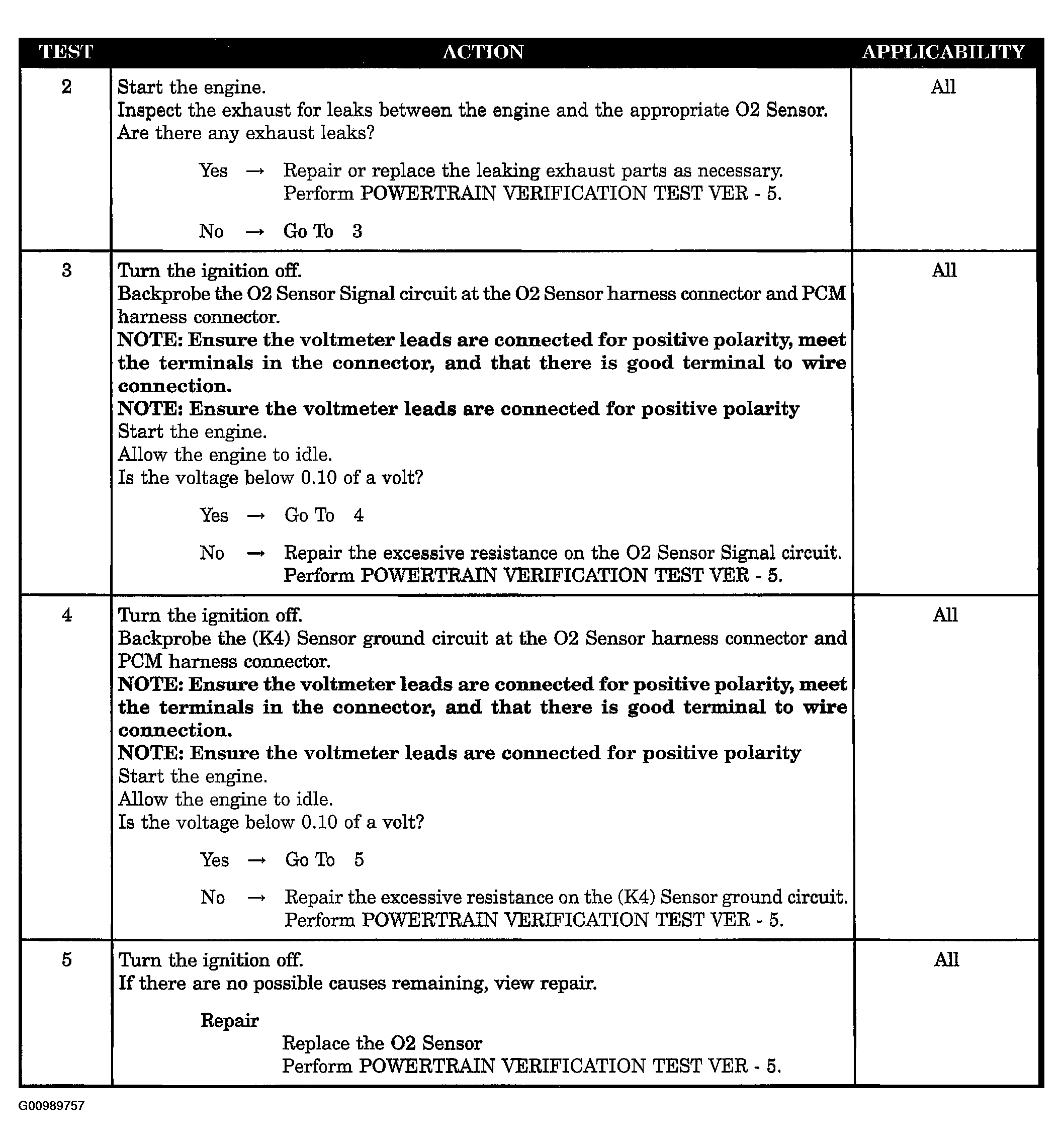

    Fig 2: Diagnosis Procedure - P1195, P1196 Slow During Catalyst Monitor (Test 2 To 5)
    G00989757Courtesy of DAIMLERCHRYSLER CORP.
