Intake Air Temperature Sensor (Gas) Connector End View

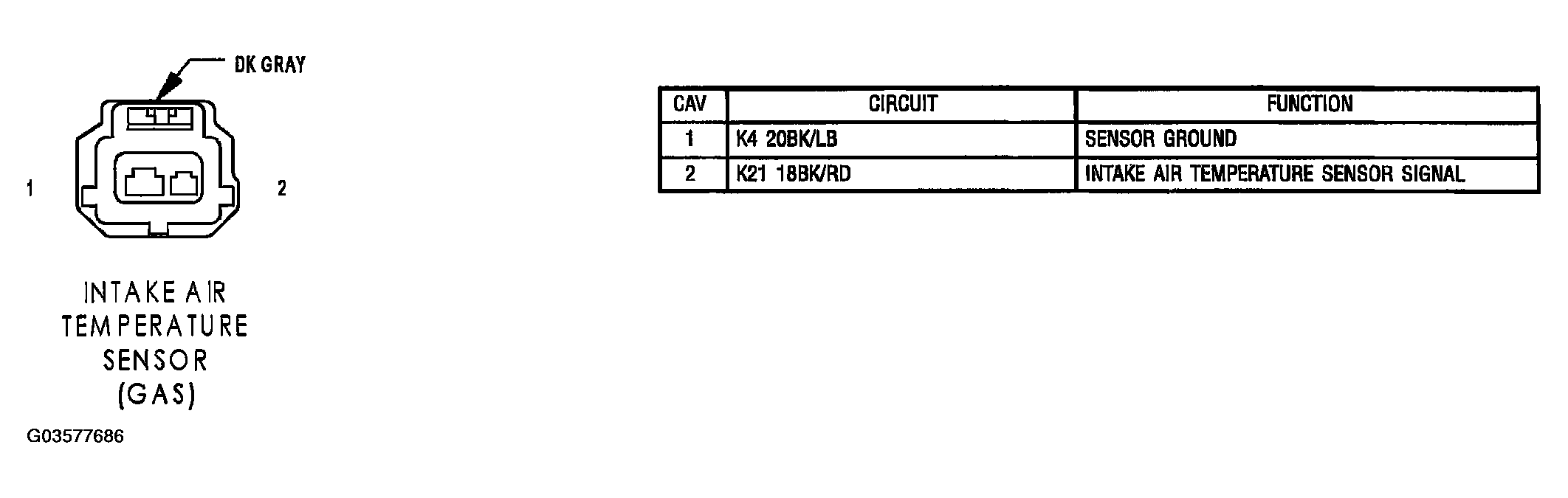

Fig 1: Intake Air Temperature Sensor (Gas) Connector End View

G03577686

Courtesy of DAIMLERCHRYSLER CORP.
