Diagnostic Procedure

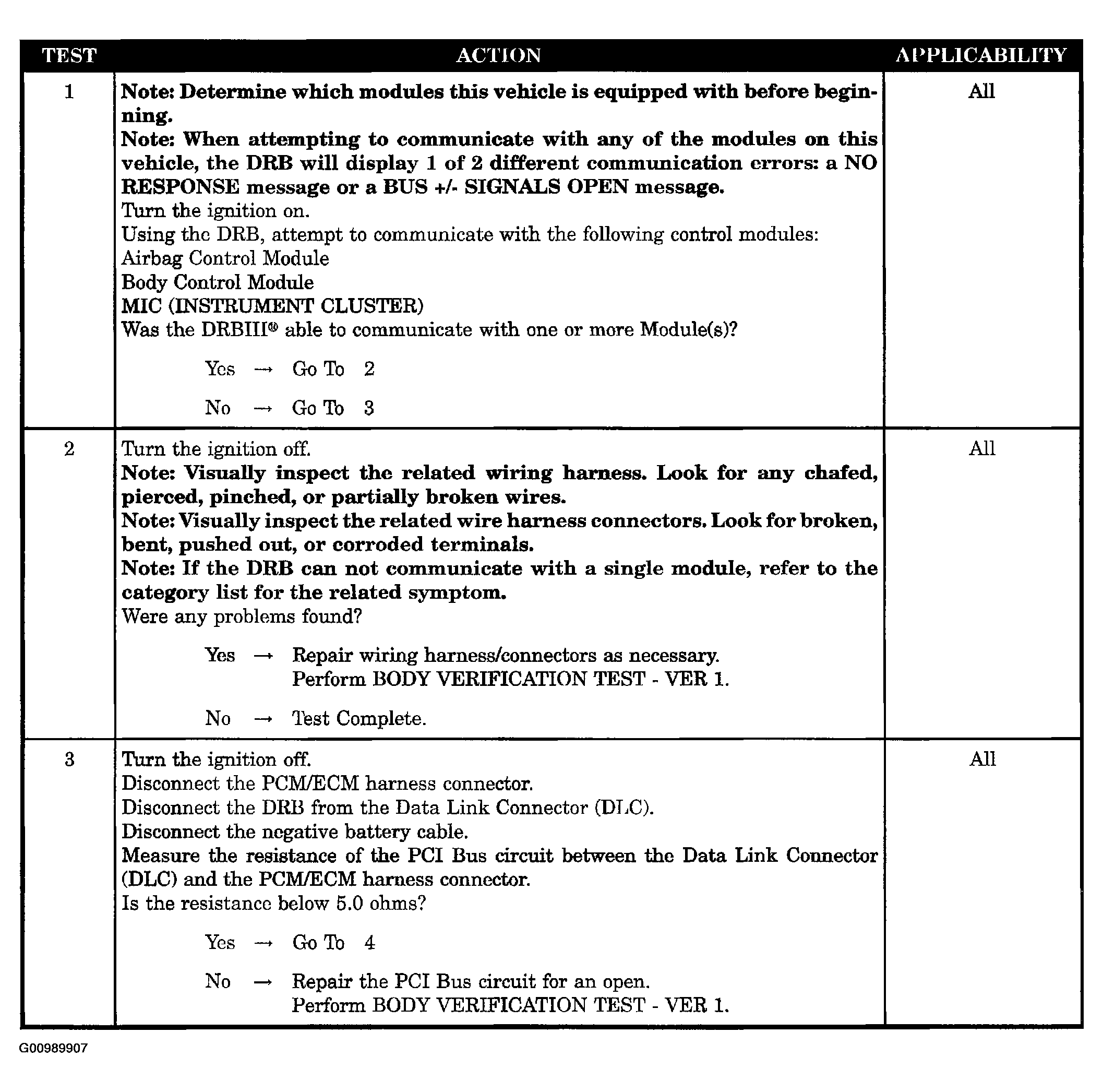

Fig 1: Diagnosis Procedure - PCI Bus Communication Failure (Test 1 To 3)
G00989907Courtesy of DAIMLERCHRYSLER CORP.

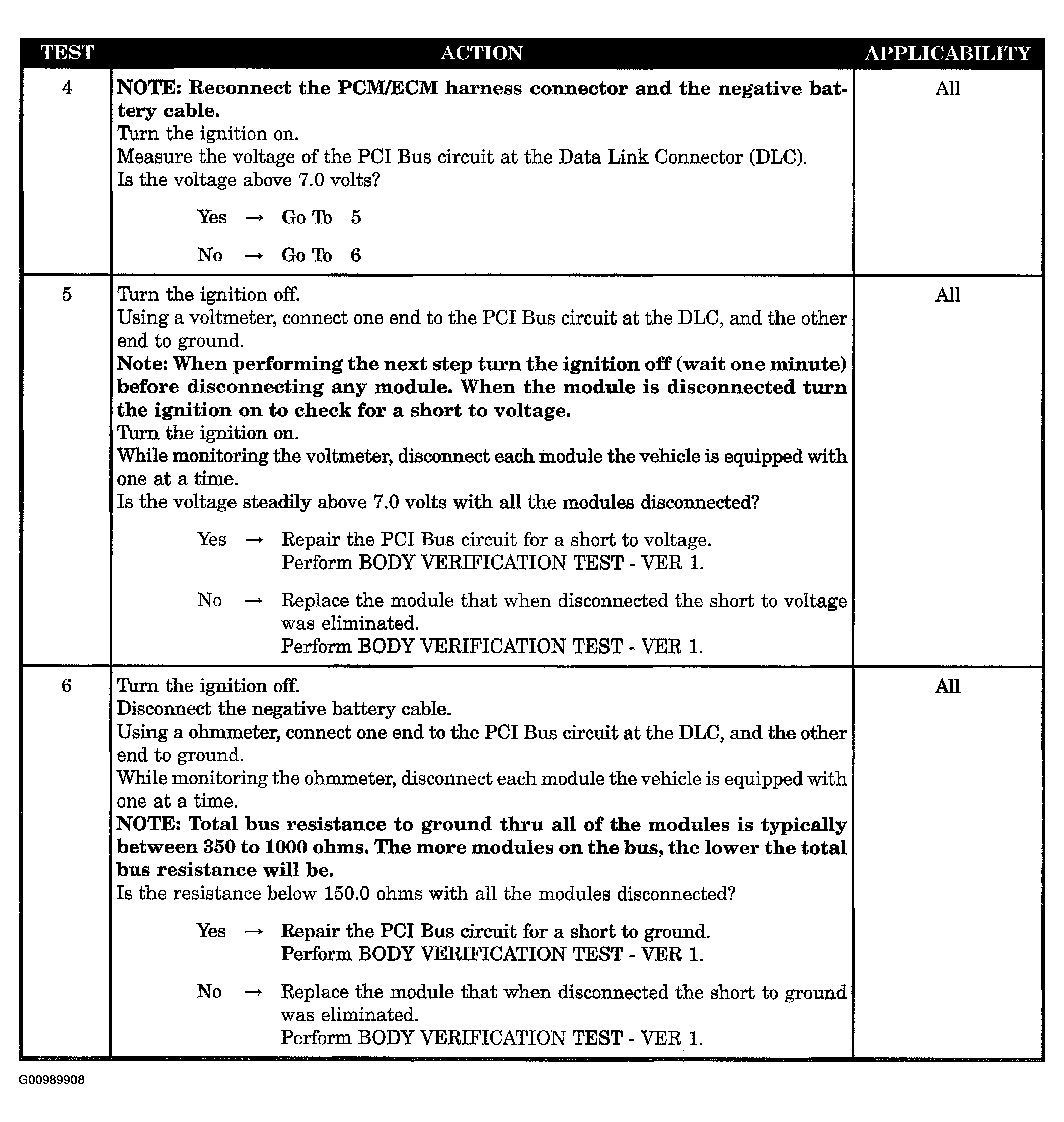

Fig 2: Diagnosis Procedure - PCI Bus Communication Failure (Test 4 To 6)
G00989908Courtesy of DAIMLERCHRYSLER CORP.
