Engine Firing Order - 4.0L 6-Cylinder Engine

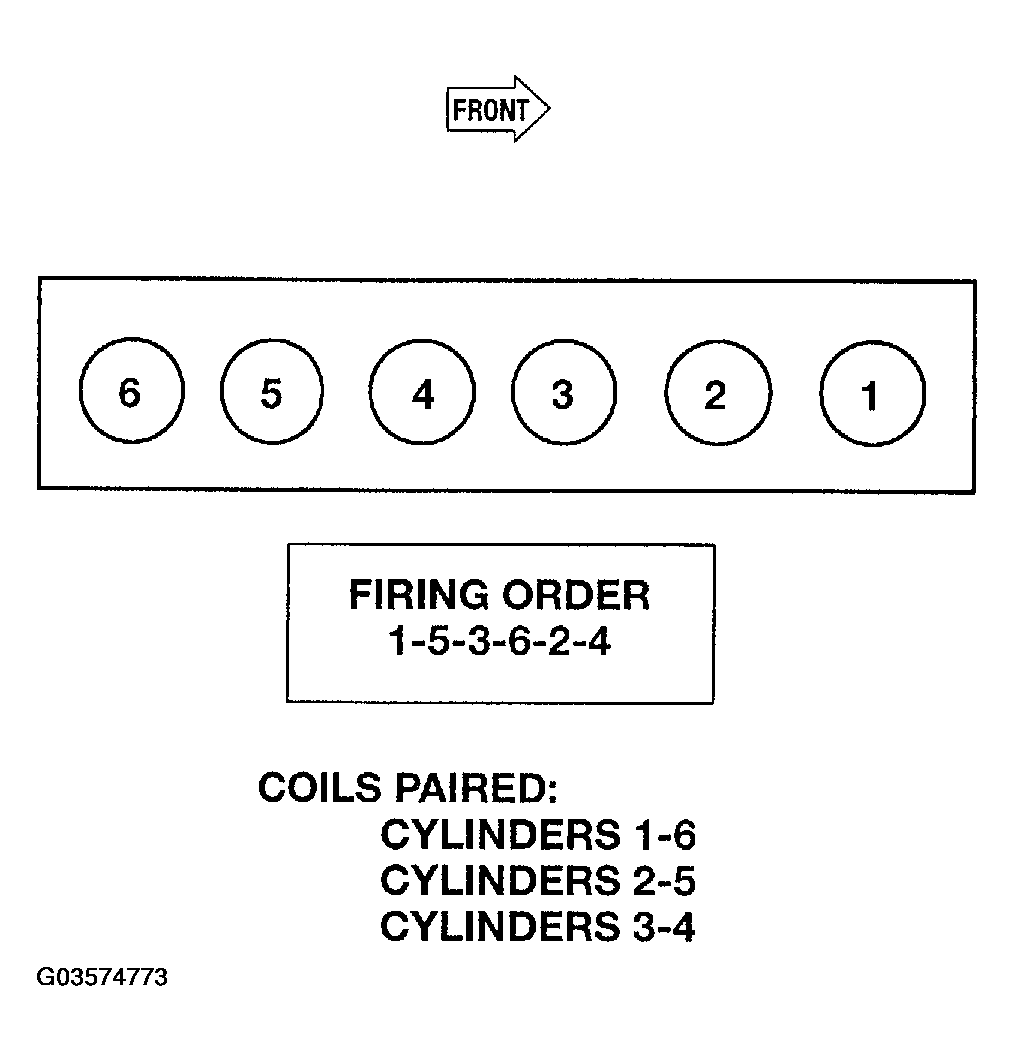

Fig 1: Firing Order - 4.0L

G03574773

Courtesy of DAIMLERCHRYSLER CORP.
