Battery Temperature Sensor Connector End View

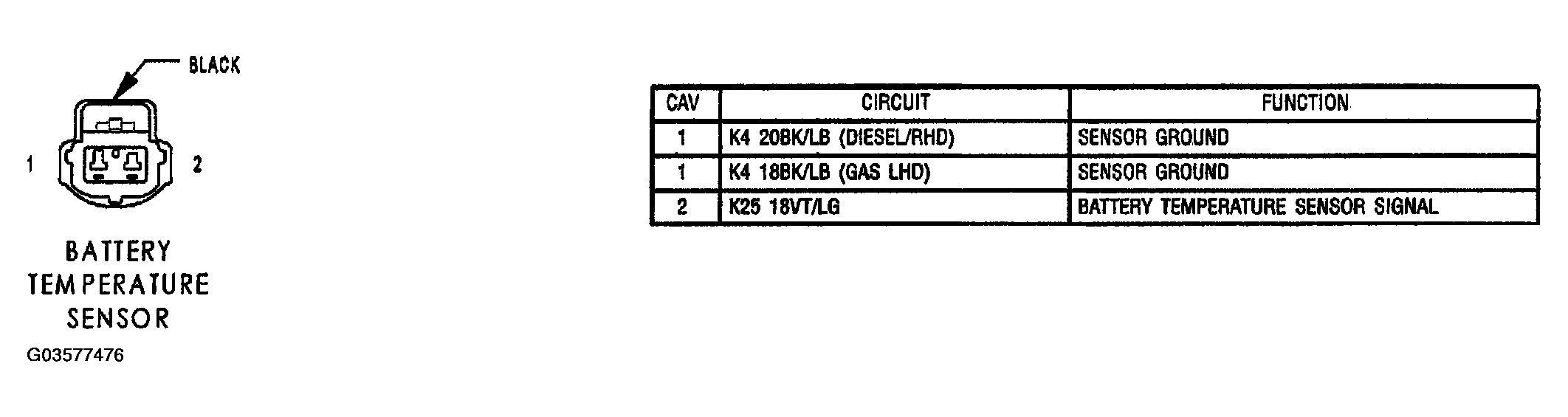

Fig 1: Battery Temperature Sensor Connector End View

G03577476

Courtesy of DAIMLERCHRYSLER CORP.
