Interior Lighting

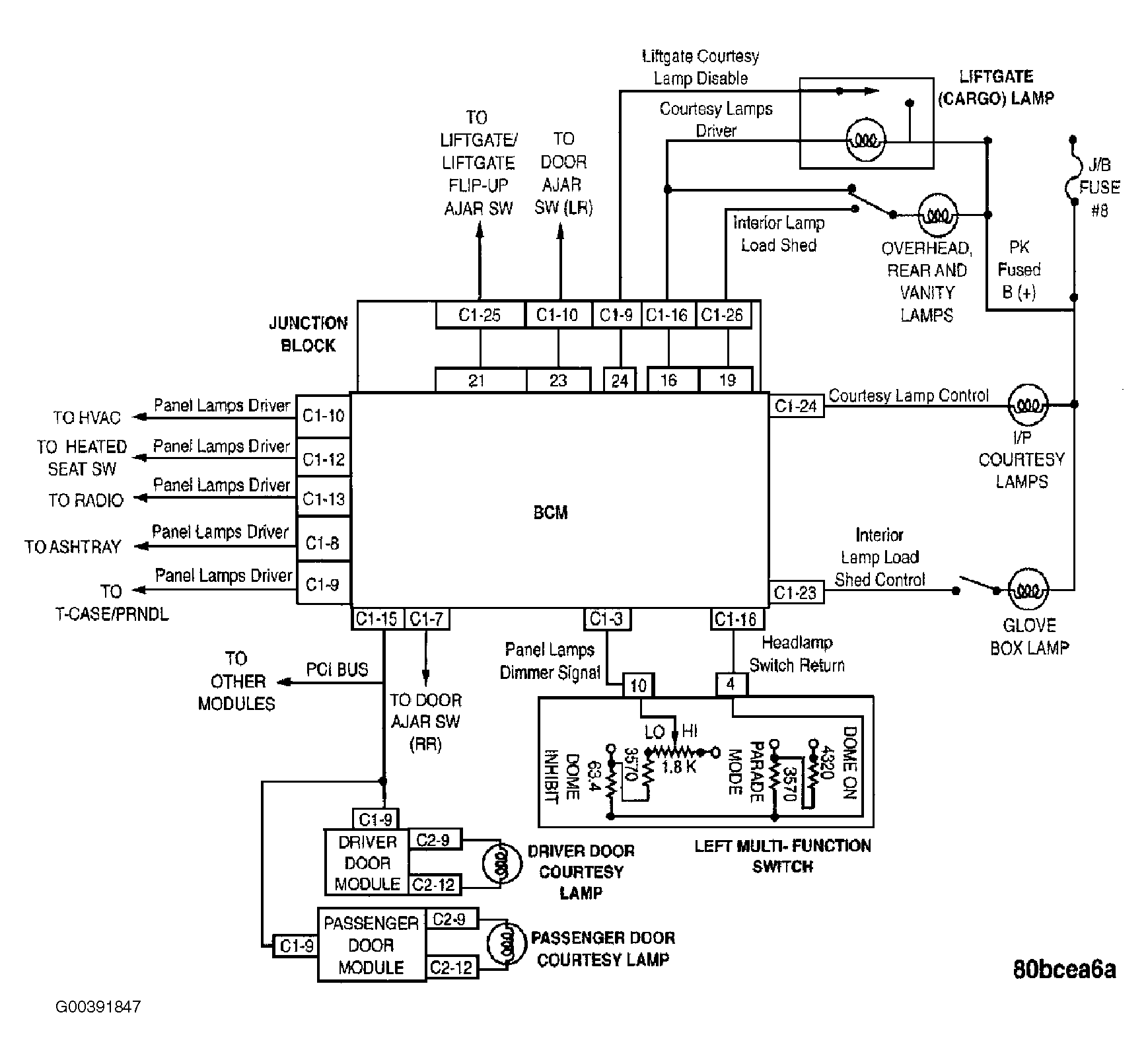

Fig 1: Interior Lighting Schematic Diagram (1 Of 2)

G00391847

Courtesy of DAIMLERCHRYSLER CORPORATION

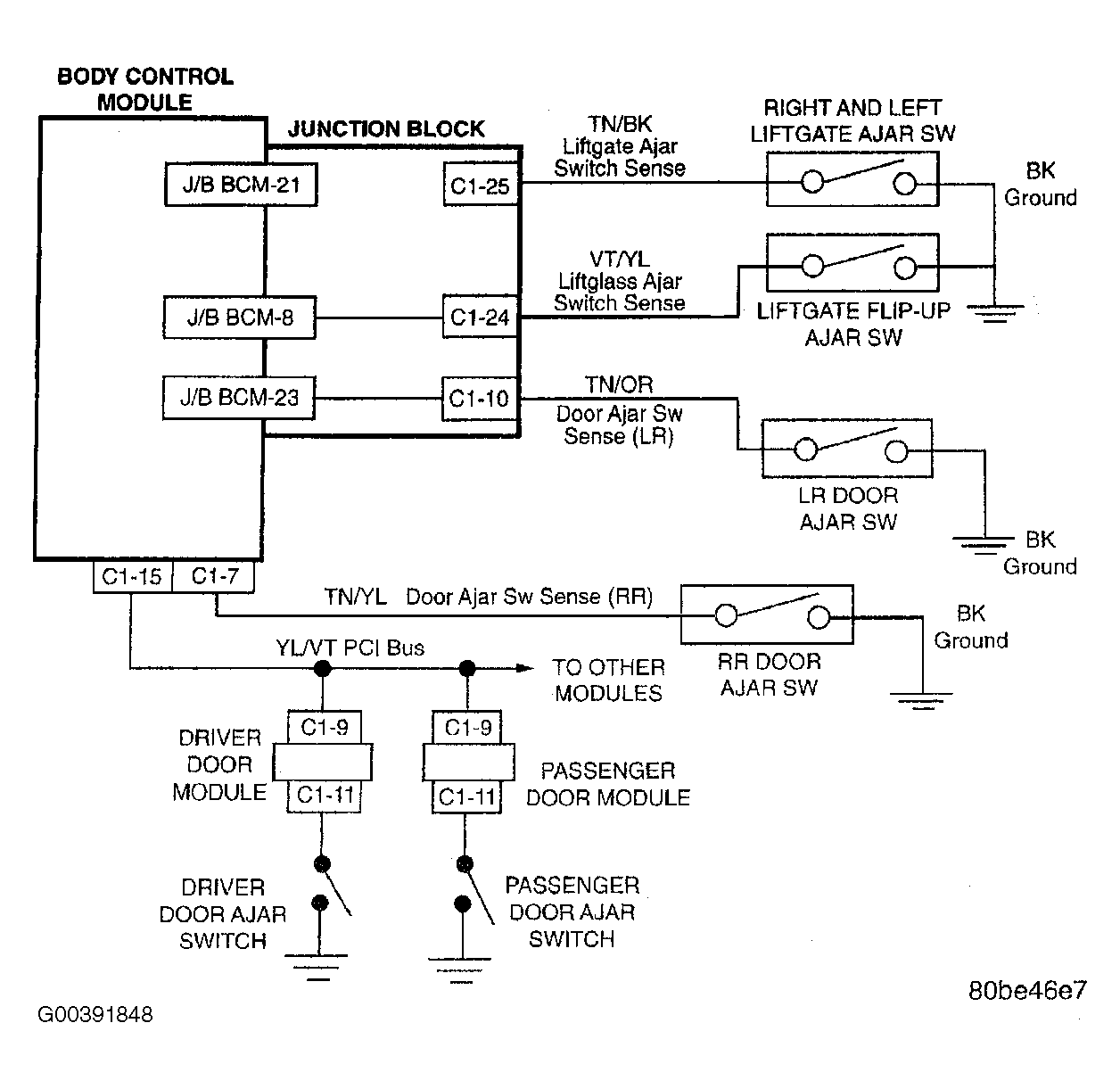

Fig 2: Interior Lighting Schematic Diagram (2 Of 2)

G00391848

Courtesy of DAIMLERCHRYSLER CORPORATION
