Intrusion Transceiver Module: Removal

  1. Disconnect and isolate the battery negative cable.
  2. While pulling downward lightly on the rear corner of the Intrusion Transceiver Module (ITM) trim cover, insert a small thin-bladed screwdriver through each of the service holes on the rear edge of the trim cover to release the two integral rear latch features of the module from the mounting bracket above the headliner (Fig 1 ).

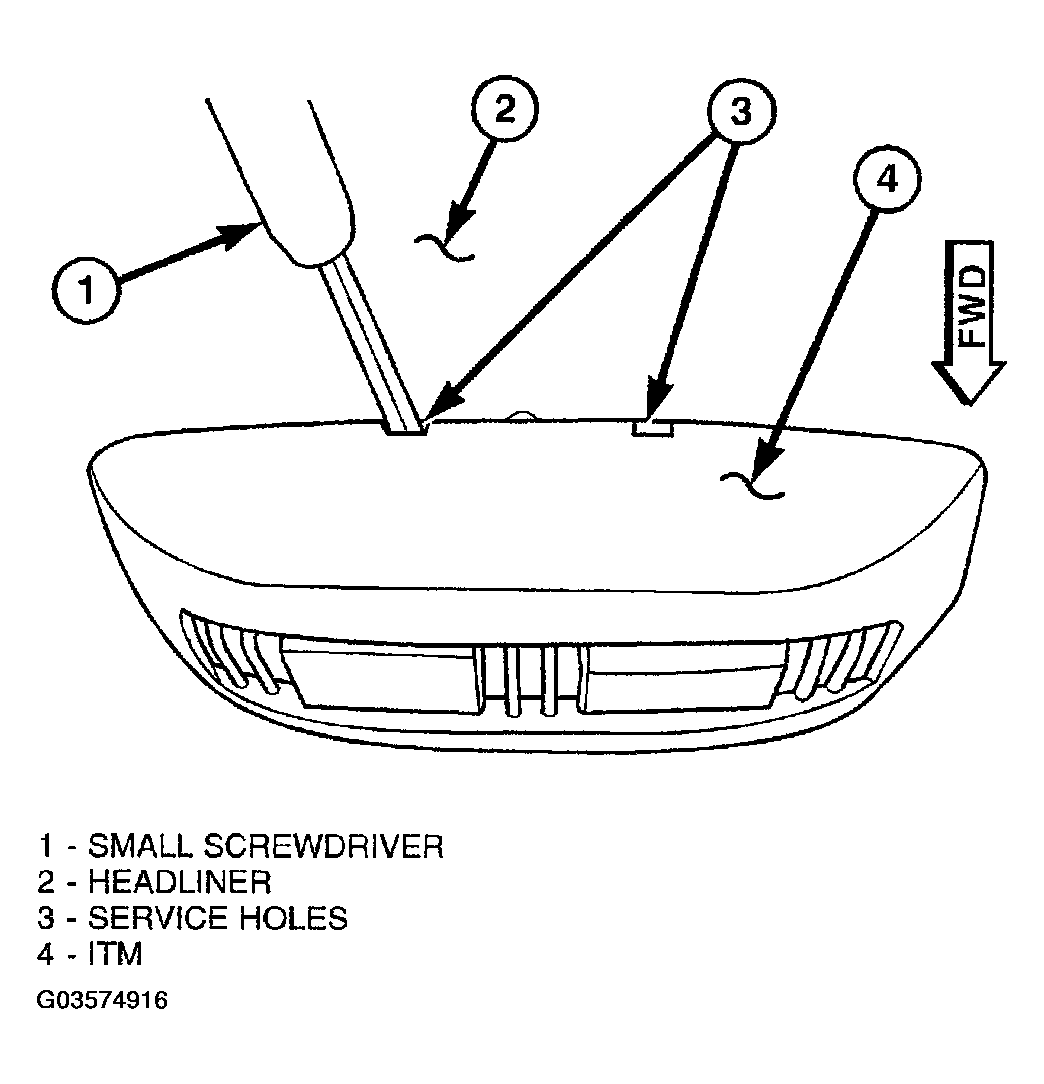

    Fig 1: Removing Intrusion Transceiver Module
    G03574916Courtesy of DAIMLERCHRYSLER CORP.
  3. Pull the ITM trim cover rearward far enough to disengage the two front latch features of the module from the mounting bracket above the headliner.
  4. Pull the ITM and trim cover down from the headliner far enough to access and disconnect the overhead wire harness connector for the ITM from the module connector.
  5. Remove the ITM from the headliner.
