Axle Lock Off Switch (Road Package) Connector End View

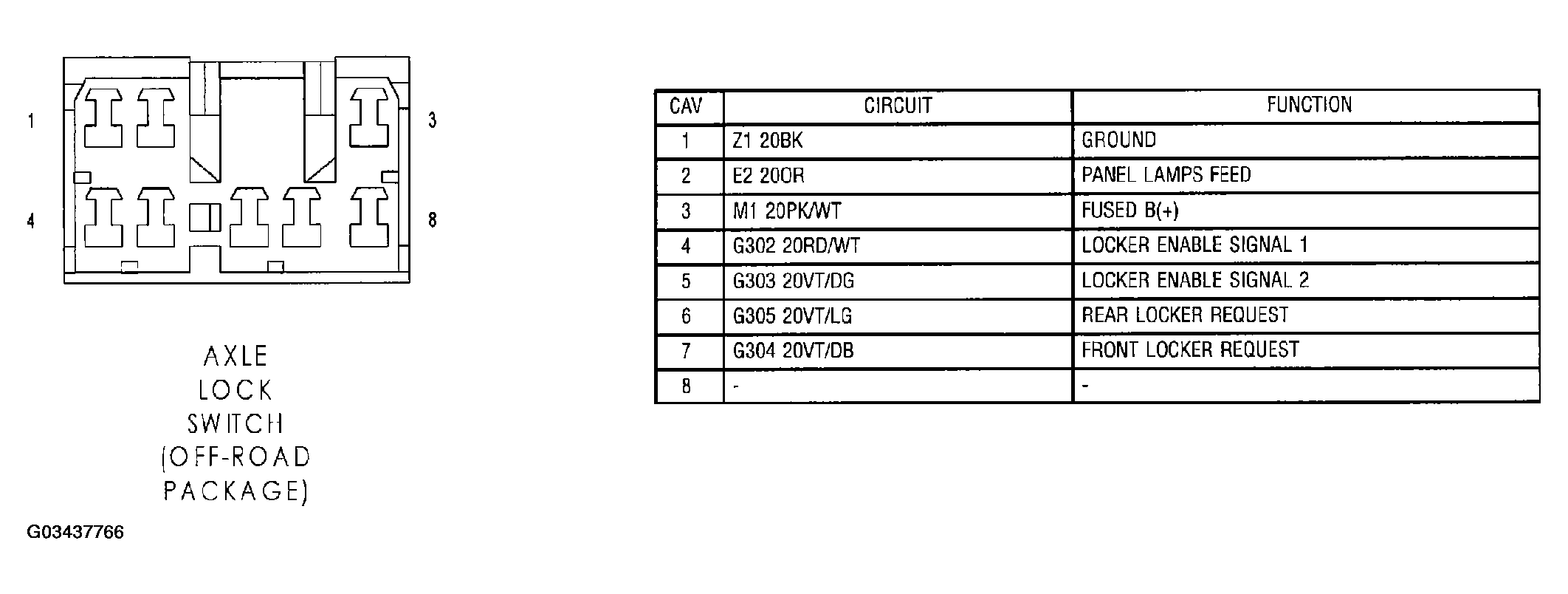

Fig 1: Axle Lock Off Switch (Road Package) Connector End View

G03437766

Courtesy of DAIMLERCHRYSLER CORP.
