Transmission Solenoid / Pressure Switch Assembly Connector End View

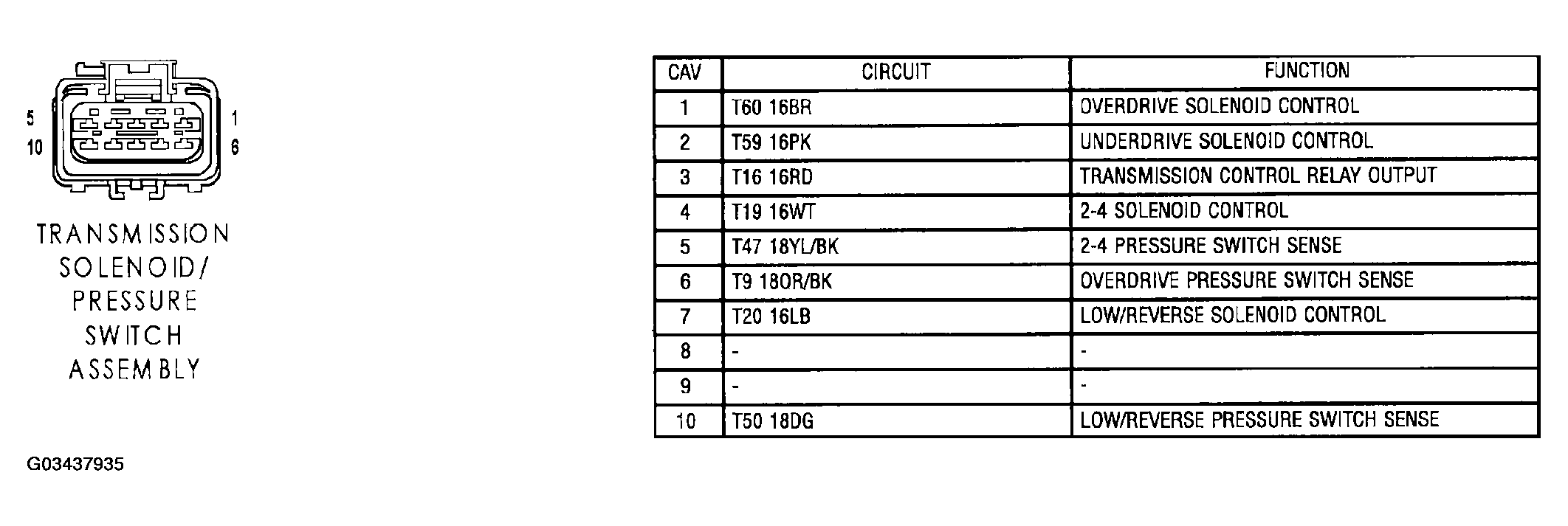

Fig 1: Transmission Solenoid / Pressure Switch Assembly Connector End View

G03437935

Courtesy of DAIMLERCHRYSLER CORP.
