Section 1 (2.4L Engine)
>>
Engine 2.4L
>>
Special Tools
>>
2.4L Engine
2.4L Engine
WARNING:
This page is about a different variant/trim than selected.

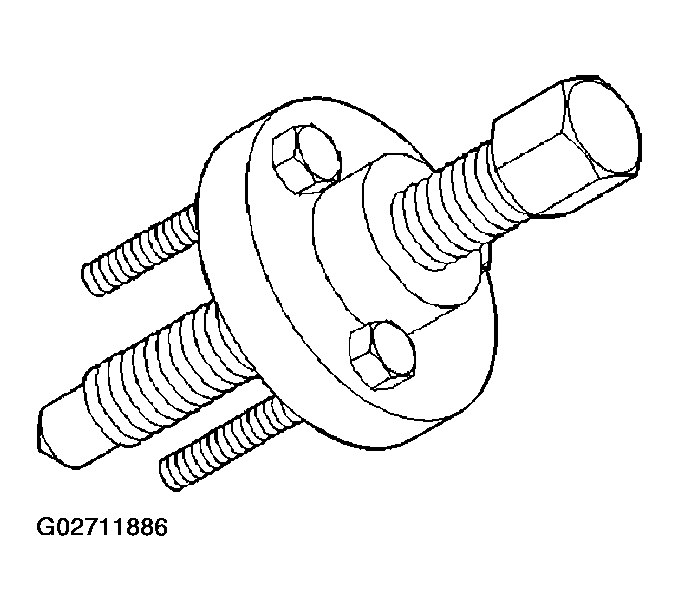

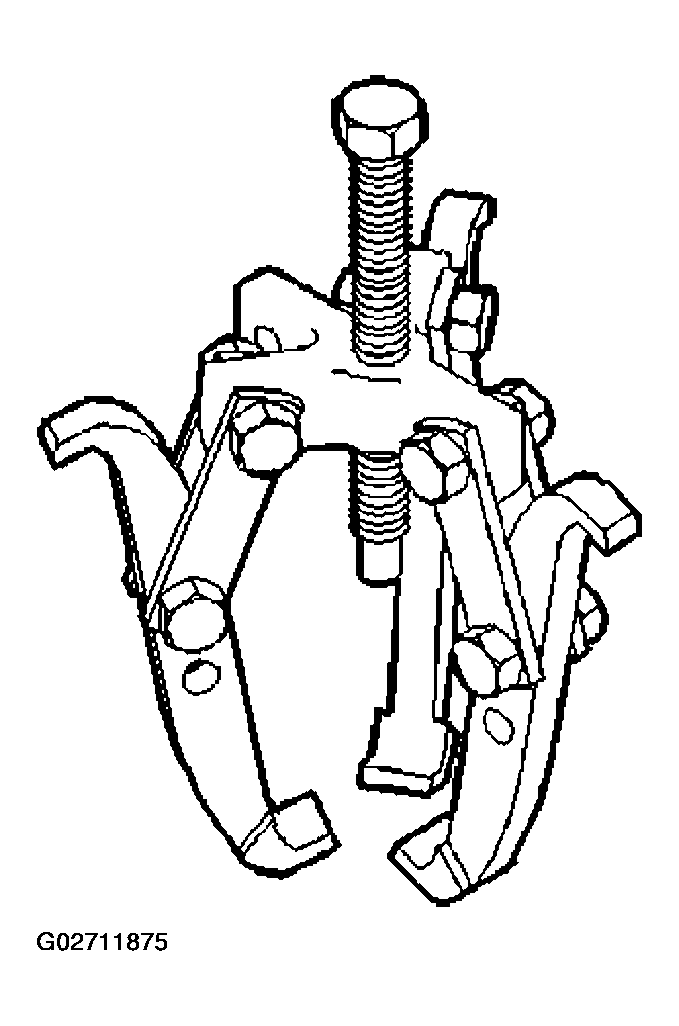

Fig 1: Identifying Special Tool - Puller 1026
Courtesy of DAIMLERCHRYSLER CORP.

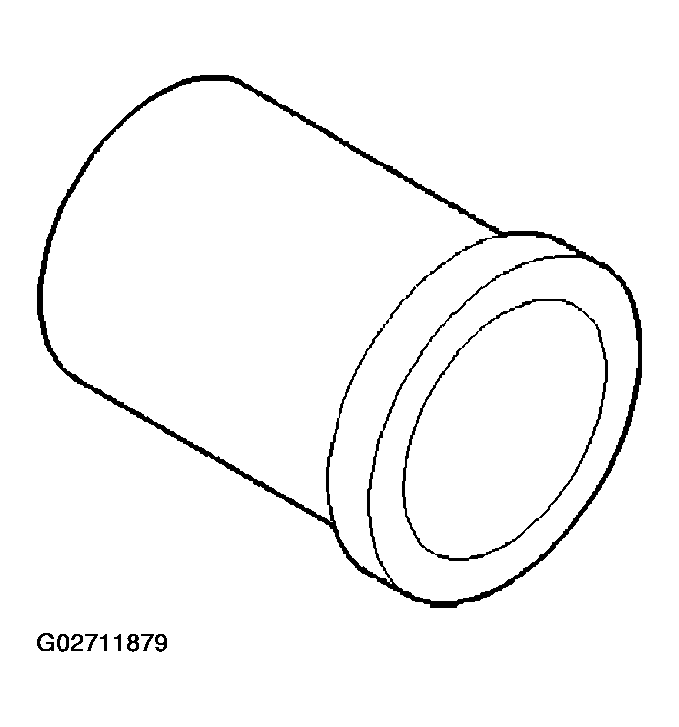

Fig 2: Identifying Special Tool - Crankshaft Damper Removal Insert 6827-A
Courtesy of DAIMLERCHRYSLER CORP.

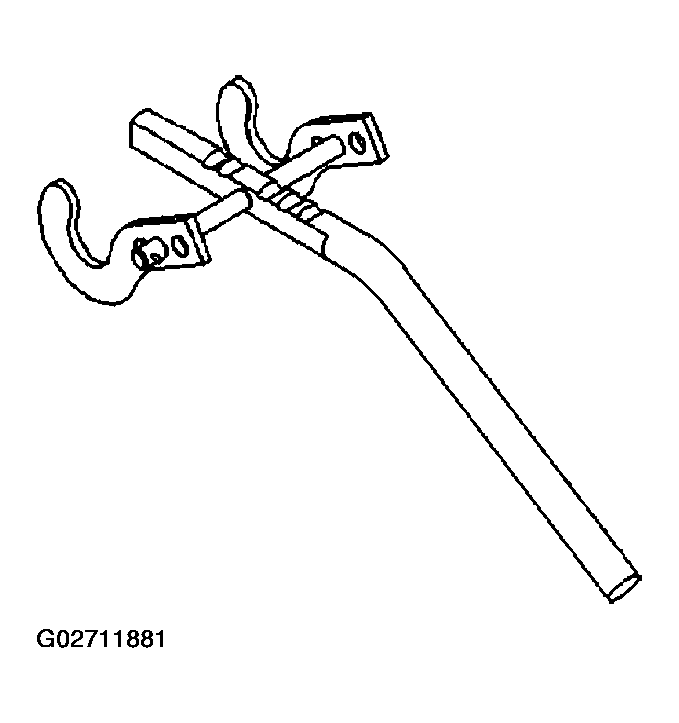

Fig 3: Identifying Special Tool - Camshaft Sprocket Holder 6847
Courtesy of DAIMLERCHRYSLER CORP.

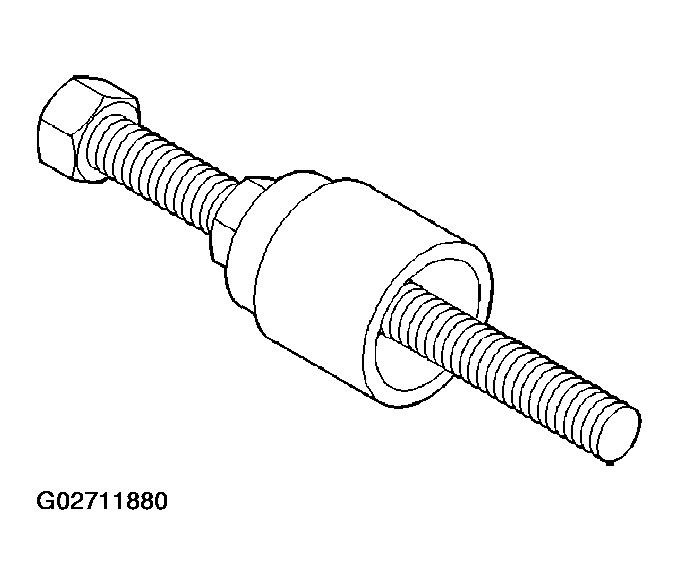

Fig 4: Identifying Special Tool - Camshaft Seal Remover C-4679-A
Courtesy of DAIMLERCHRYSLER CORP.
Fig 5: Identifying Special Tool - Camshaft Seal Installer MD-998306
Courtesy of DAIMLERCHRYSLER CORP.

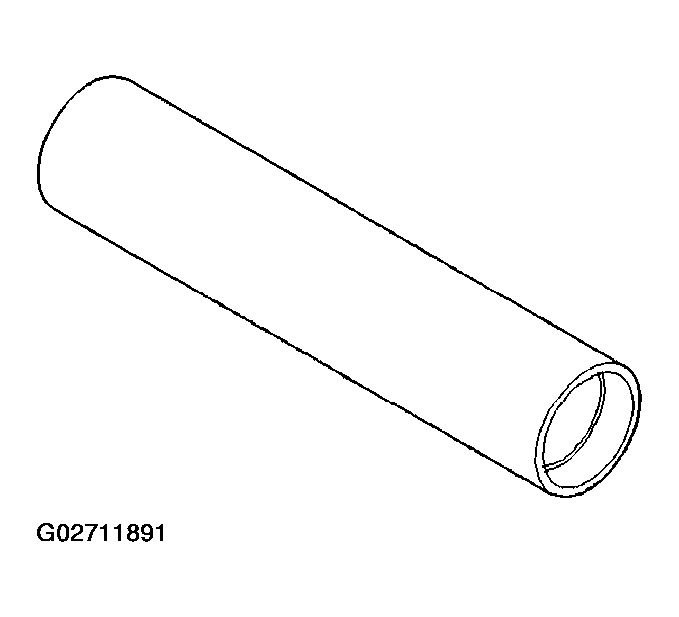

Fig 6: Identifying Special Tool - Crankshaft Damper Installer 6792
Courtesy of DAIMLERCHRYSLER CORP.

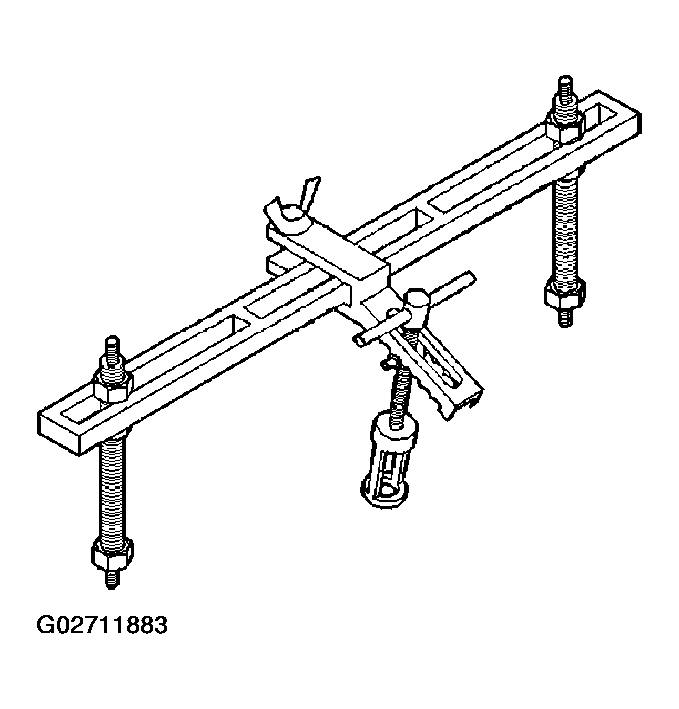

Fig 7: Identifying Special Tool - Valve Spring Compressor 8215
Courtesy of DAIMLERCHRYSLER CORP.
Fig 8: Identifying Special Tool - Adaptor 8436
Courtesy of DAIMLERCHRYSLER CORP.
Fig 9: Identifying Special Tool - Valve Spring Compressor MD998772A
Courtesy of DAIMLERCHRYSLER CORP.
Fig 10: Identifying Special Tool - Valve Spring Compressor Adapter 6779
Courtesy of DAIMLERCHRYSLER CORP.

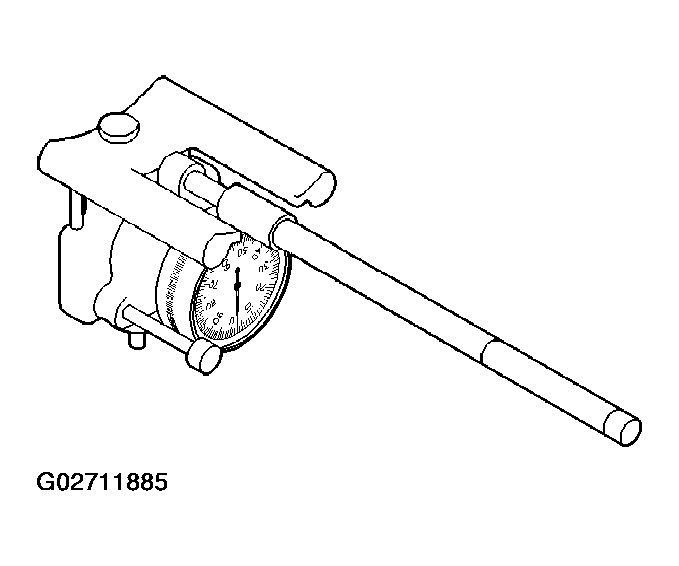

Fig 11: Identifying Special Tool - Cylinder Bore Gage C-119
Courtesy of DAIMLERCHRYSLER CORP.

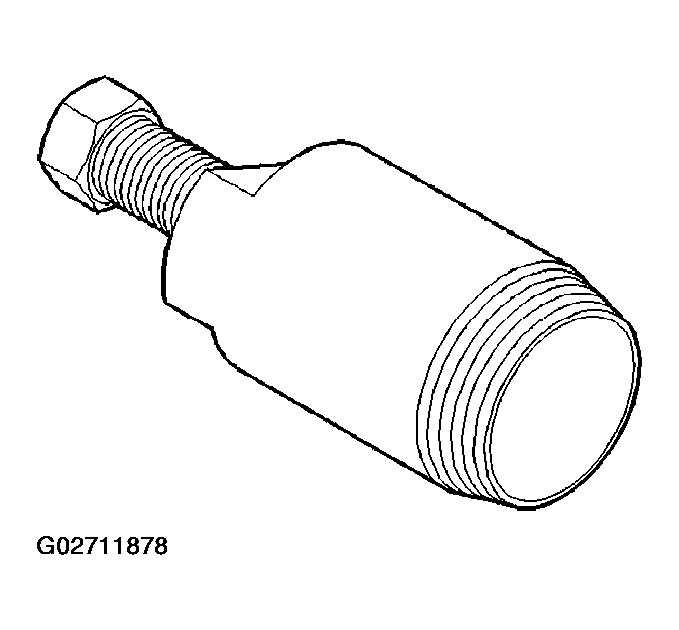

Fig 12: Identifying Special Tool - Crankshaft Sprocket Remover 6793
Courtesy of DAIMLERCHRYSLER CORP.
Fig 13: Identifying Special Tool - Crankshaft Sprocket Remover Insert C-4685-C2
Courtesy of DAIMLERCHRYSLER CORP.

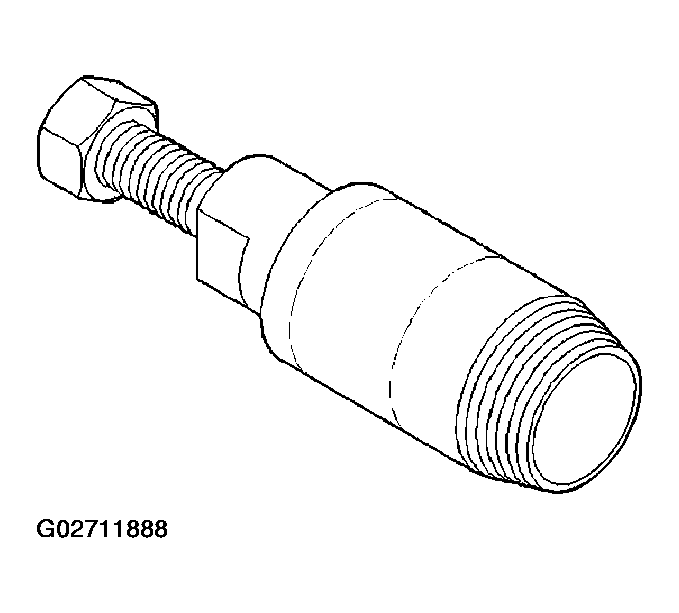

Fig 14: Identifying Special Tool - Crankshaft Seal Remover 6771
Courtesy of DAIMLERCHRYSLER CORP.

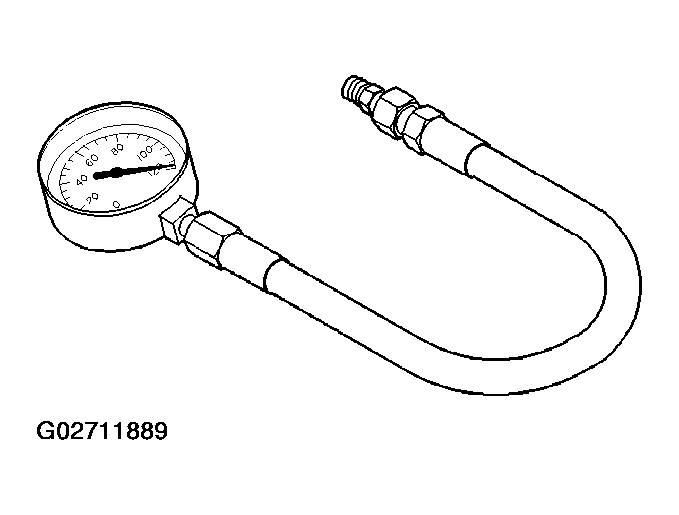

Fig 15: Identifying Special Tool - Oil Pressure Gauge C-3292
Courtesy of DAIMLERCHRYSLER CORP.

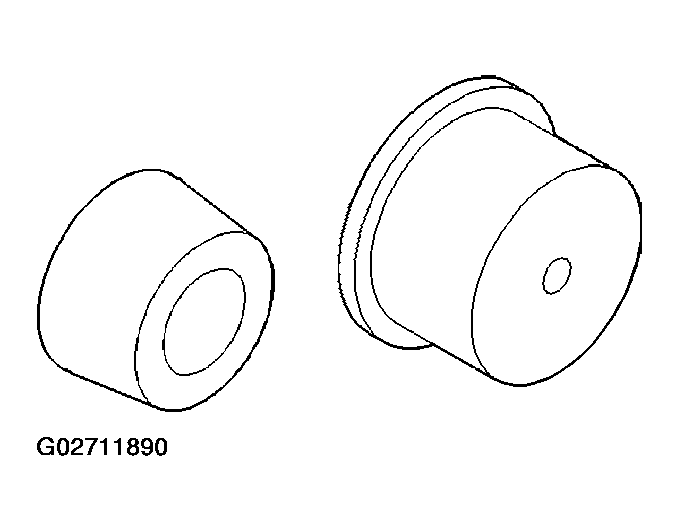

Fig 16: Identifying Special Tool - Rear Crankshaft Seal Guide And Installer 6926-1 And 6926-2
Courtesy of DAIMLERCHRYSLER CORP.
Fig 17: Identifying Special Tool - Balance Shaft Sprocket Installer 6052
Courtesy of DAIMLERCHRYSLER CORP.
Fig 18: Identifying Special Tool - Front Crankshaft Oil Seal Installer 6780
Courtesy of DAIMLERCHRYSLER CORP.

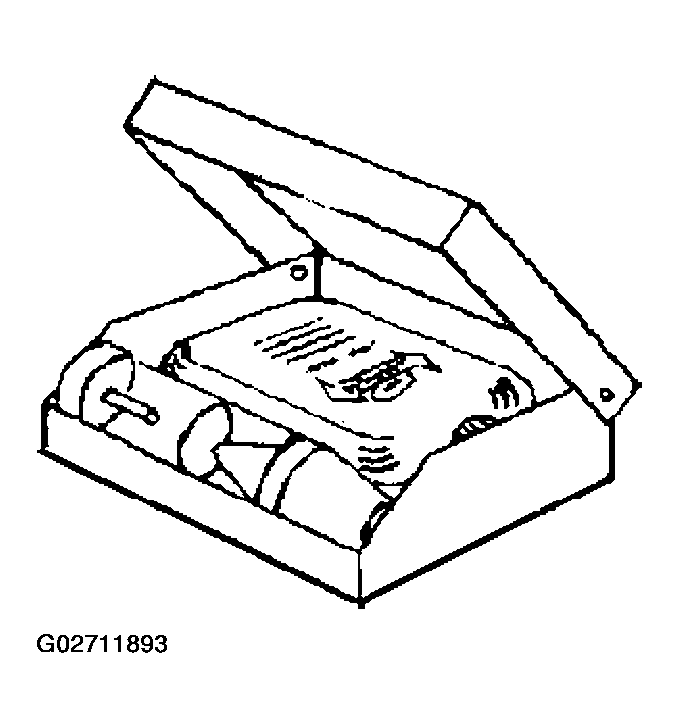

Fig 19: Identifying Special Tool - Combustion Leak Tester C-3685-A
Courtesy of DAIMLERCHRYSLER CORP.

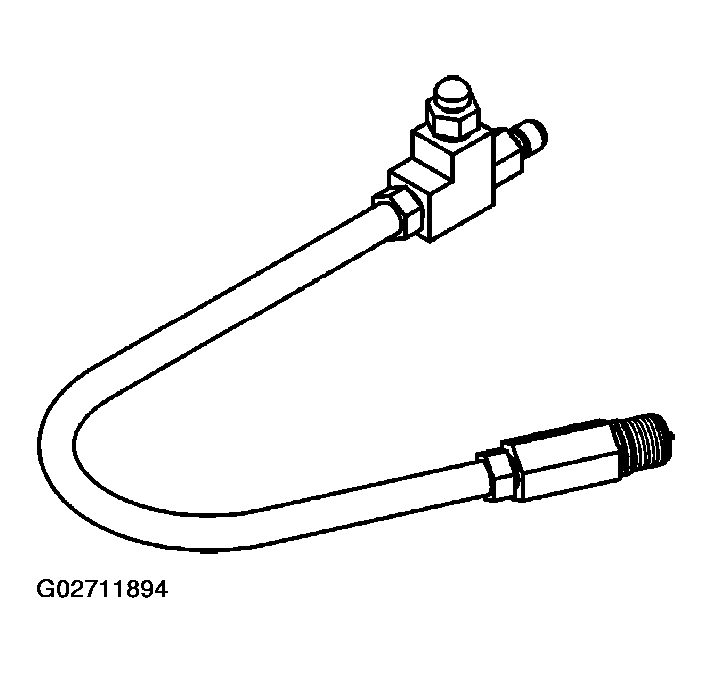

Fig 20: Identifying Special Tool - Cylinder Compression Pressure Adaptor 8116
Courtesy of DAIMLERCHRYSLER CORP.
