Right Front Wheel Speed Sensor Connector End View

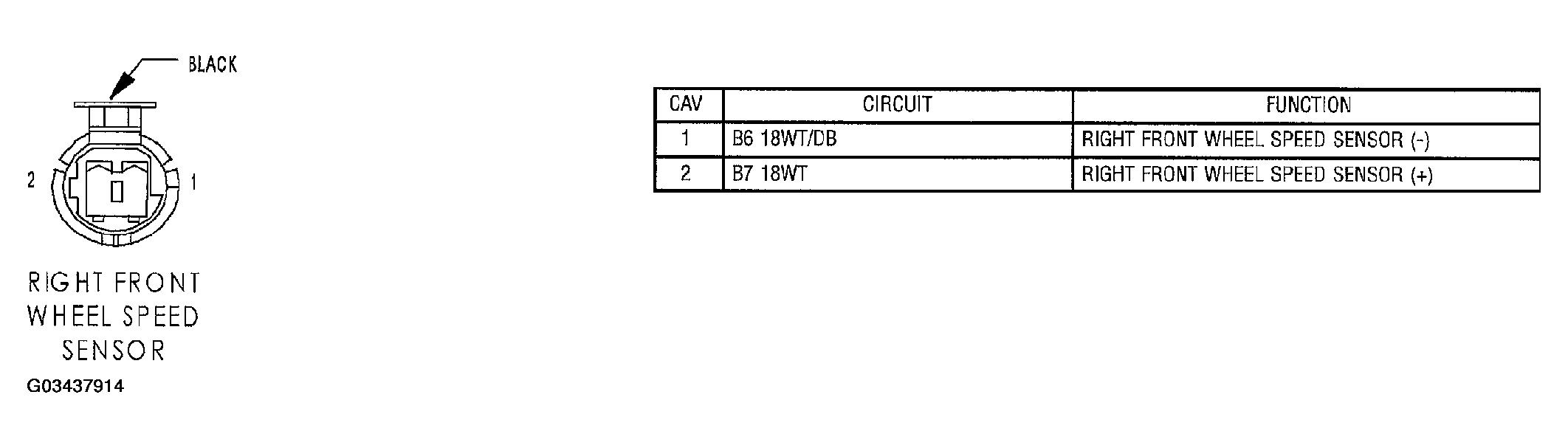

Fig 1: Right Front Wheel Speed Sensor Connector End View

G03437914

Courtesy of DAIMLERCHRYSLER CORP.
