Front Locker Indicator Switch (Off Road Package) Connector End View

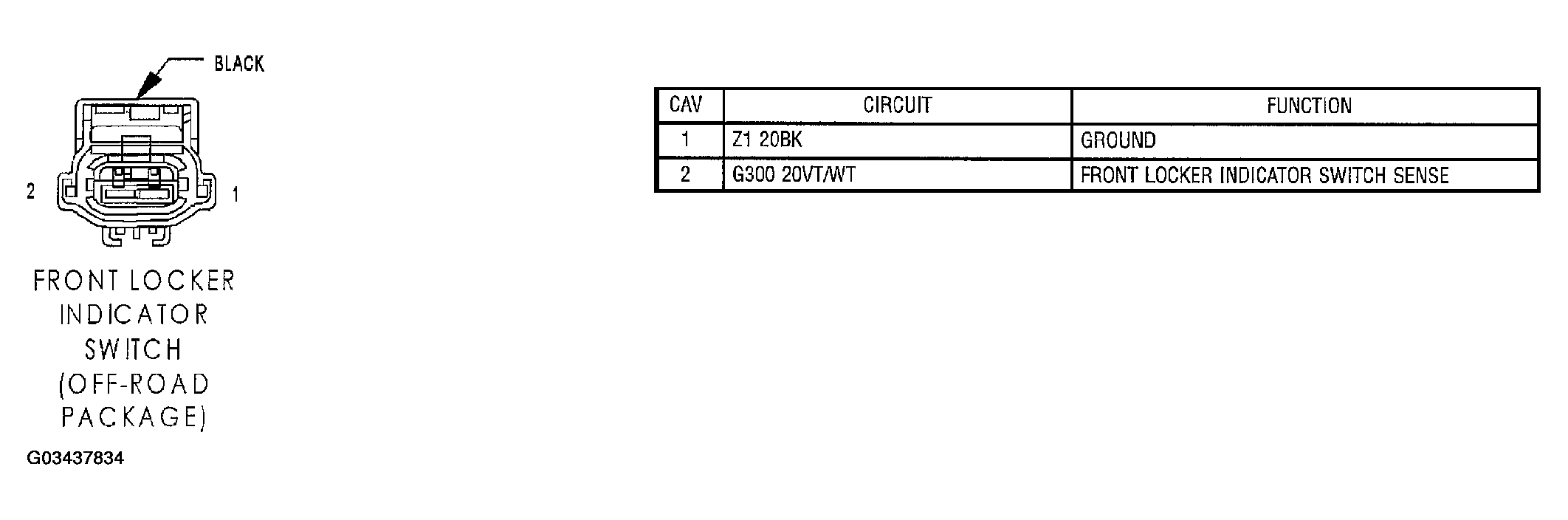

Fig 1: Front Locker Indicator Switch (Off Road Package) Connector End View

G03437834

Courtesy of DAIMLERCHRYSLER CORP.
