Front Wiper Motor Connector End View

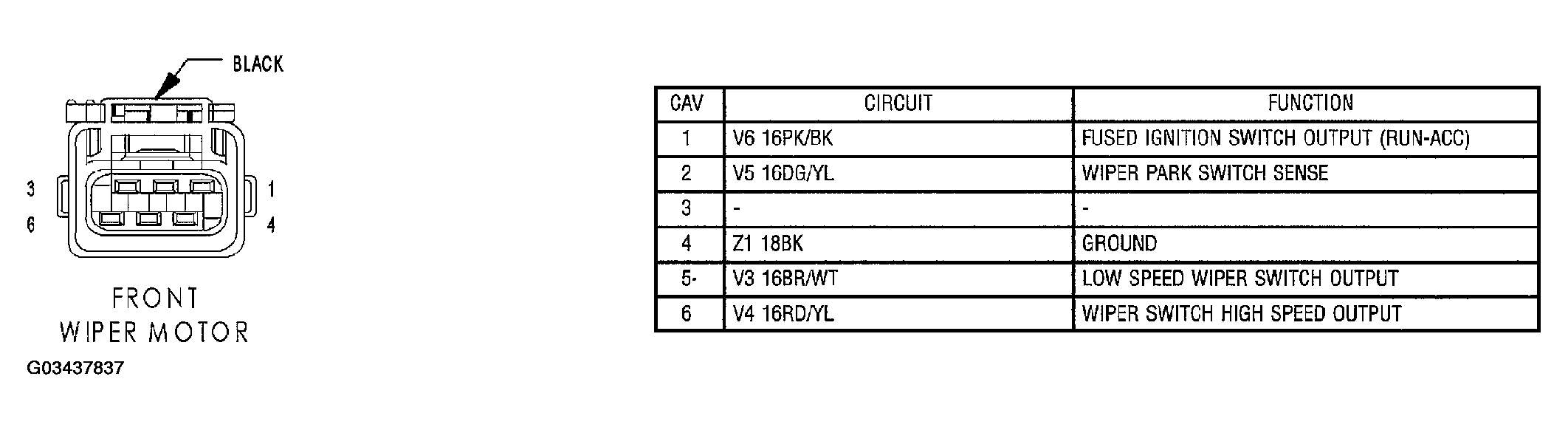

Fig 1: Front Wiper Motor Connector End View

G03437837

Courtesy of DAIMLERCHRYSLER CORP.
