Leak Detection Pump: Notes

The Leak Detection Pump (LDP), LDP Filter, and EVAP canister are attached to a common support bracket. This support assembly is located to the rear of the right/rear tire under the plastic wheelhouse liner. The LDP filter is also located near the EVAP canister. See Fig 1 and Fig 2 . The LDP and LDP filter are replaced (serviced) as one unit.

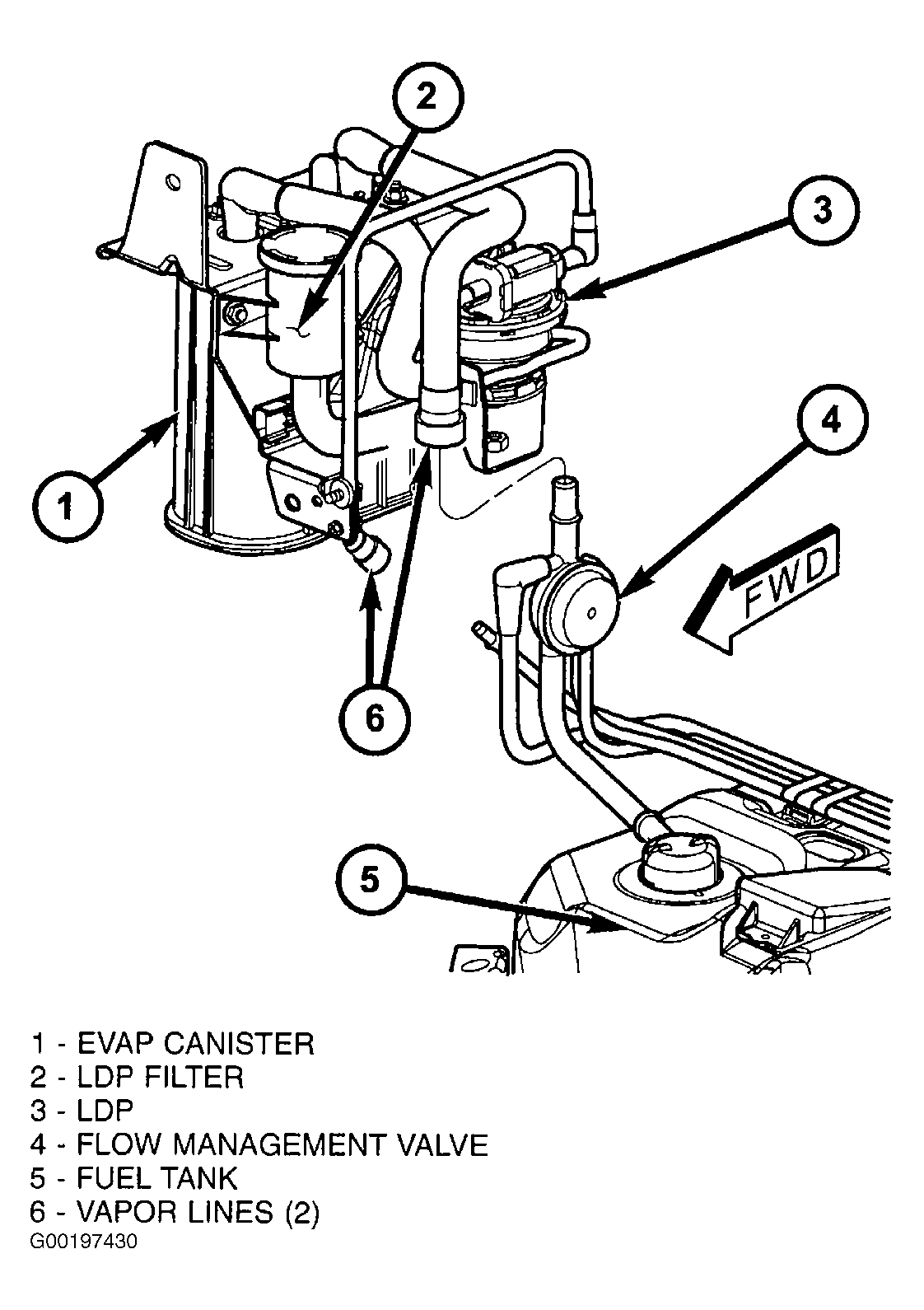

Fig 1: Locating EVAP Canister/LDP

Courtesy of CHRYSLER CORP.

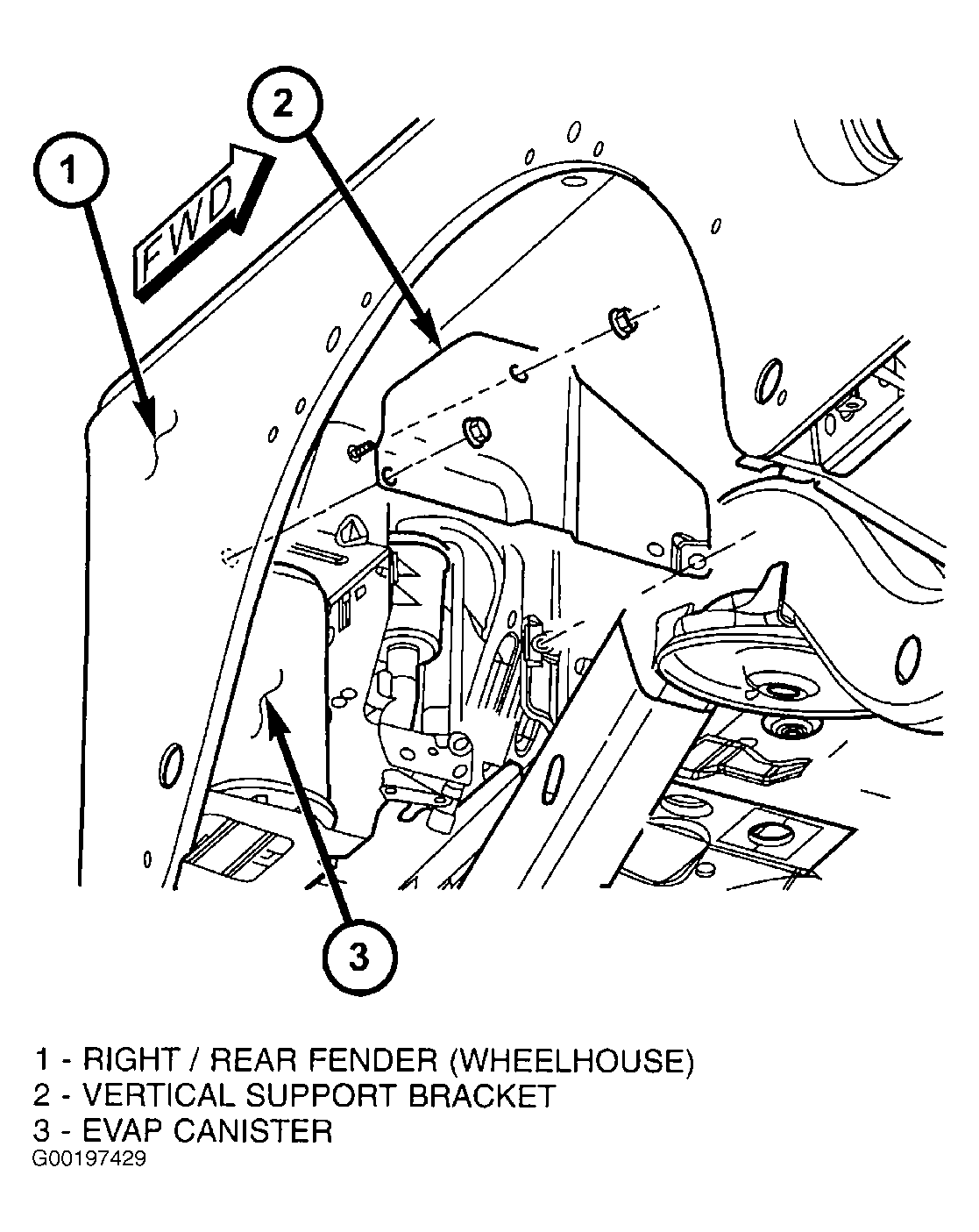

Fig 2: Disconnecting ORVR Vapor Lines

Courtesy of CHRYSLER CORP.
