Headlamp Leveling Switch (Export) Connector End View

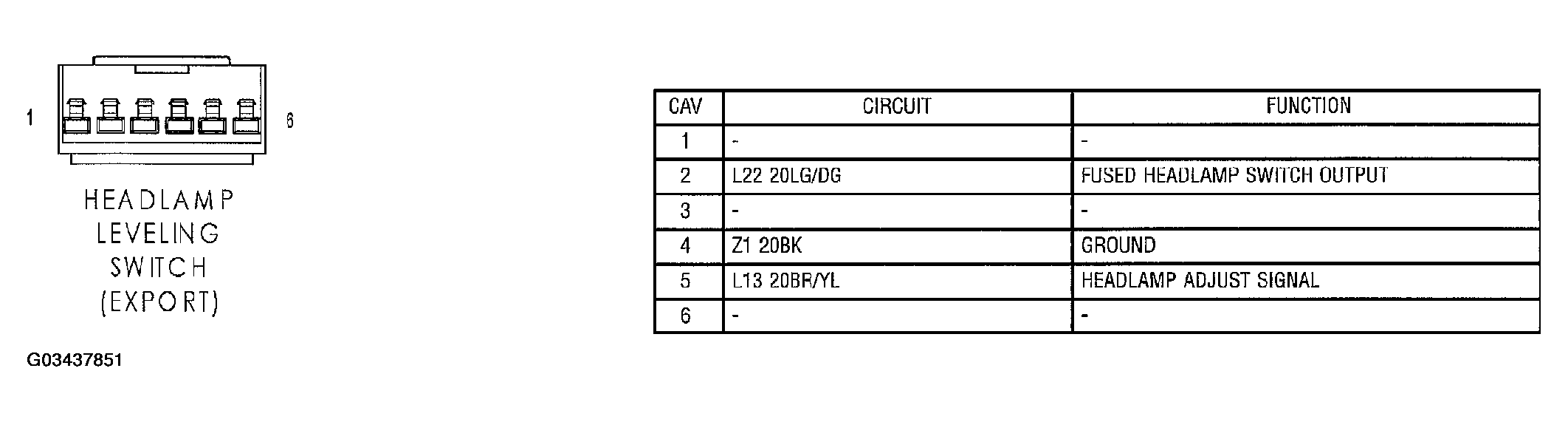

Fig 1: Headlamp Leveling Switch (Export) Connector End View

G03437851

Courtesy of DAIMLERCHRYSLER CORP.
